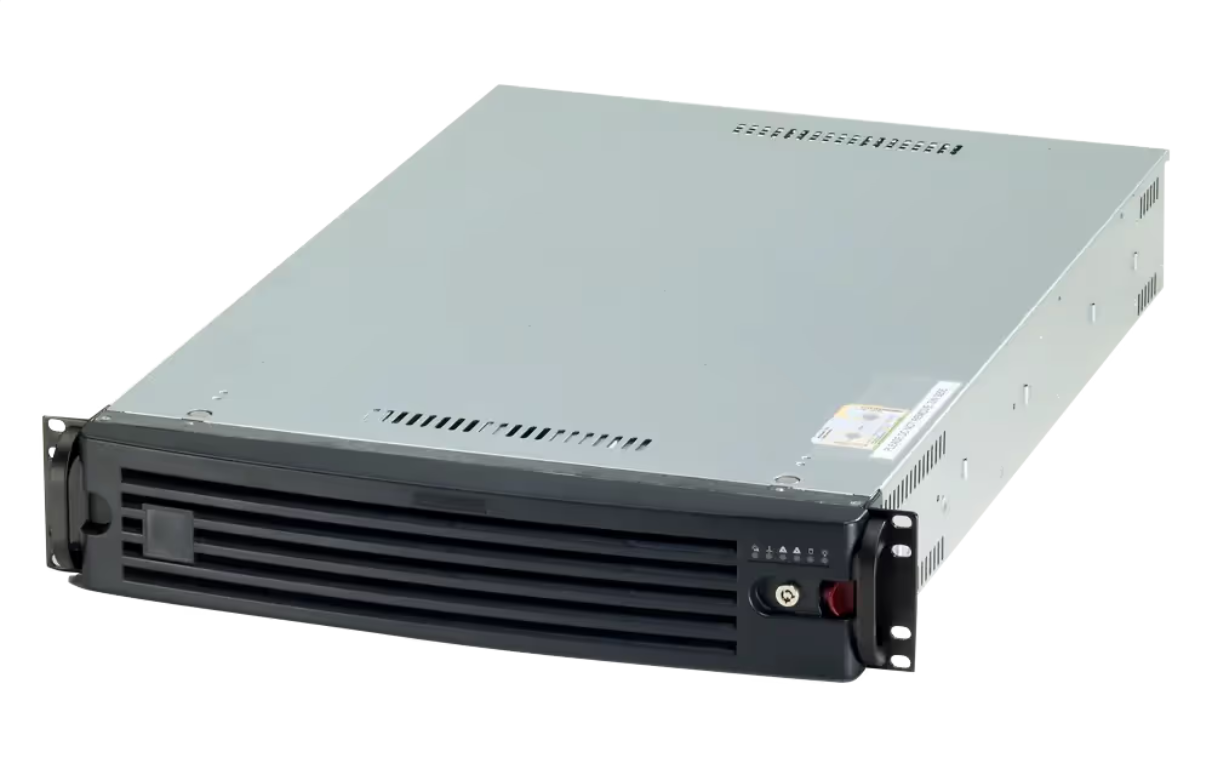

Ganz - ZNR-2U-24TB - NVR 2U Server, 24TB Storage, DVD-RW

Product Overview

Ganz ZNR-2U-24TB is a professional 2U rackmount Network Video Recorder server with 24 TB of internal surveillance-grade storage. It uses multi-core Intel Core i7 processing, isolated operating-system storage, and dual Gigabit network interfaces to support high-throughput recording and management of up to 128 streaming IP channels.

Key Configuration

Model: ZNR-2U-24TB | Device Type: 2U rackmount NVR server | Processor: Multi-core Intel Core i7 | Storage: 24 TB surveillance-grade storage | System Drive: Dedicated solid-state storage | Network: Dual Gigabit Ethernet interfaces | Capacity: Up to 128 streaming IP channels | VMS Compatibility: Ganz CORTROL Premier and Global

Key Features

• · 2U rackmount form factor fits professional server racks and equipment rooms
• · 24 TB of internal surveillance-grade storage supports extended video retention
• · Supports up to 128 streaming IP channels
• · Multi-core Intel Core i7 processing supports high-throughput recording and video workloads
• · Designed for simultaneous live playback, continuous recording, and metadata processing
• · Dedicated solid-state storage separates the operating system from video database operations
• · Dual Gigabit network interfaces support isolation of camera traffic from client and corporate traffic
• · Supports high-definition IP streams including 4K and 8K video
• · Optimized for Ganz CORTROL Premier and CORTROL Global VMS deployments
• · Provides a platform for CORTROL automation, interactive E-maps, POS text integration, and metadata workflows

Technical Context

Multi-core Intel Core i7 processing provides the foundation for concurrent video decoding, live playback, continuous recording, and metadata analysis. Placing the operating system on separate solid-state storage helps keep background system maintenance independent from the high-volume writes generated by the surveillance database. The two Gigabit interfaces can be configured to isolate camera traffic on a dedicated network while reserving the second interface for remote clients and corporate management queries.

Installation Notes

The recorder is intended for installation in a standard 2U server rack and use with Ganz CORTROL Premier or CORTROL Global software. One Gigabit interface can be assigned to the camera network and the second to remote-client or corporate management access. Storage and channel configuration should be matched to camera resolution, recording schedules, retention requirements, and VMS policies.
