Ganz - ZNR-2U-48TB - NVR 2U Server, 48TB Storage, DVD-RW

Product Overview

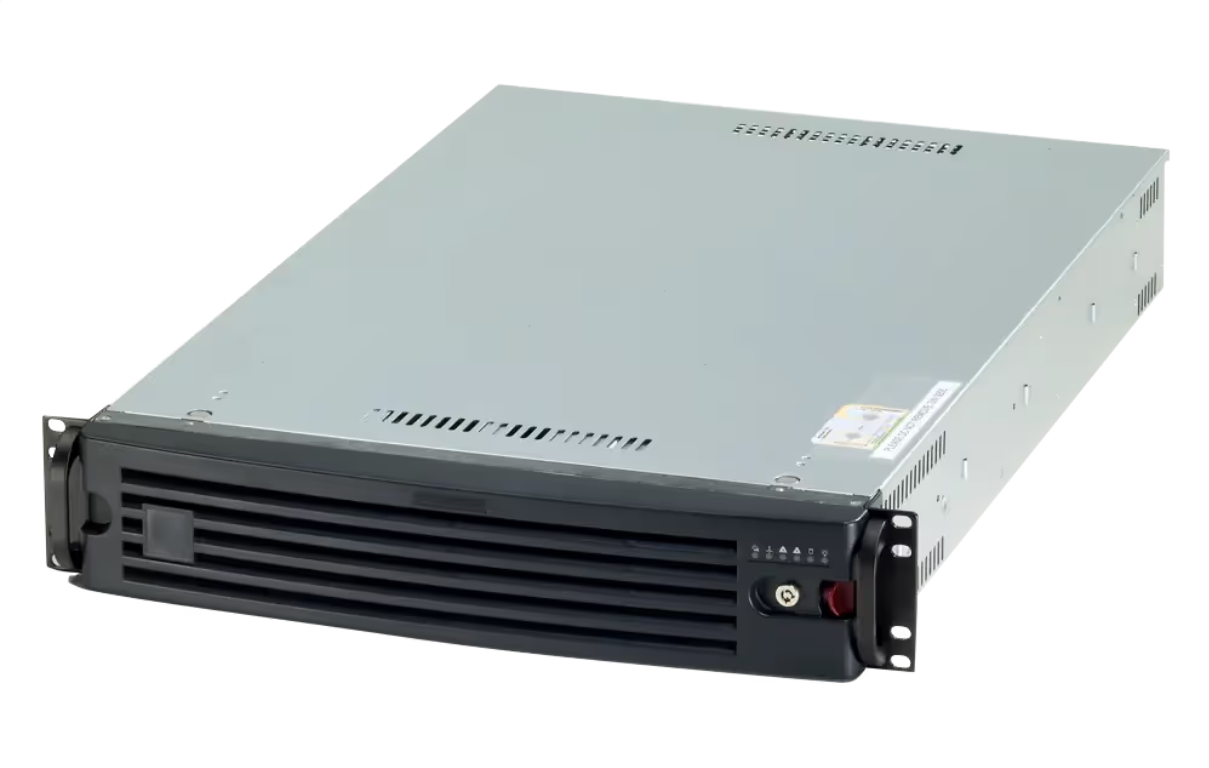

Ganz ZNR-2U-48TB is a professional 2U rackmount Network Video Recorder server with 48 TB of internal surveillance-grade storage. It combines multi-core Intel Core i7 processing, isolated NVMe operating-system storage, and dual Gigabit network interfaces to support high-throughput recording and management of up to 128 streaming IP channels.

Key Configuration

Model: ZNR-2U-48TB | Device Type: 2U rackmount NVR server | Processor: Multi-core Intel Core i7 | Storage: 48 TB surveillance-grade storage | System Drive: Dedicated NVMe solid-state storage | Network: Dual Gigabit Ethernet interfaces | Capacity: Up to 128 streaming IP channels | VMS Compatibility: Ganz CORTROL Premier and Global

Key Features

• · 2U rackmount form factor fits professional server racks and equipment rooms
• · 48 TB of internal surveillance-grade storage supports extended video retention
• · Supports up to 128 streaming IP channels
• · Multi-core Intel Core i7 processing supports high-throughput recording and video workloads
• · Designed for simultaneous live playback, continuous recording, and metadata parsing
• · Dedicated NVMe storage separates operating-system activity from video database operations
• · Dual Gigabit network interfaces support isolation of camera traffic from client and corporate traffic
• · Supports high-definition IP streams including 4K and 8K video
• · Optimized for Ganz CORTROL Premier and CORTROL Global VMS deployments
• · Provides a platform for CORTROL automation, interactive E-maps, POS text integration, and metadata workflows

Technical Context

Multi-core Intel Core i7 processing provides the foundation for concurrent video decoding, live playback, continuous recording, and metadata analysis across large camera arrays. Placing the operating system on dedicated NVMe storage helps keep background system maintenance independent from the high-volume writes generated by the surveillance database. The two Gigabit interfaces can be configured to isolate camera traffic on a dedicated network while reserving the second interface for remote clients and corporate management queries.

Installation Notes

The recorder is intended for installation in a standard 2U server rack and use with Ganz CORTROL Premier or CORTROL Global software. One Gigabit interface can be assigned to the camera network and the second to remote-client or corporate management access. Storage and channel configuration should be matched to camera resolution, recording schedules, retention requirements, and VMS policies.
