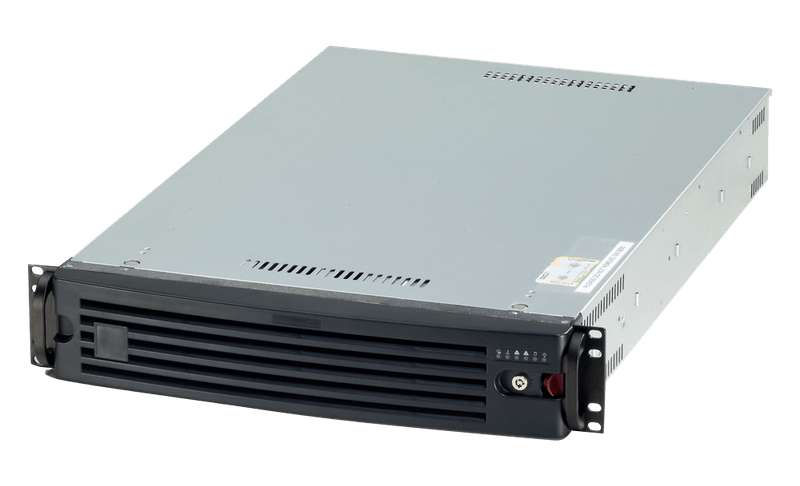

Ganz - ZNR-2U-54TB - ZNR Series 2U IP NVR with Intel i7-12700 (12 Core) Processor - 54TB
Part number:
ZNR-2U-54TB
Price:

The ZNR Series is a robust 2U NVR optimized to work with NVR Software for sensitive & long-term storage of IP Megapixel cameras. Designed for use with Ganz CORTROL surveillance software. See the datasheet for hardware specifications and capacity chart.



Features:

  • Advanced Intel processors and chipset optimized for HD Video
  • Pre-installed with Windows 11 Pro (64 Bit) on a dedicated SSD
  • Support all GANZ IP camera models
  • Available with & without encoder 16TB ~ 90TB, for up to 128 -Channels
  • Intel i7-12700 12 Core Processor
  • Built-in Intel 630UHD Video Graphics with HDMI & DVI outputs
  • 16GB of DDR4 Kingston RAM
  • 2x 1Gigabit Network Cards
  • The advanced cooling system ensures optimal performance & long-term reliability
  • Also available in 4U models
  • Can be pre-loaded with Ganz CORTROL surveillance software
  • NDAA Compliant
ZNR Server

ZNR-2U-xTB

ZNR-4U-xTB (5 Bay)ZNR-4U-xTB (10 Bay)
Power Supply

750W PS

Form Factor

2U Rack mount

4U Desktop (Rack mountable)

Cooling System

4x 80mm frontfans

2x 80mm front fans

Operating System

Win11 Pro (64 Bit) on an 240GNVME or SSD

NIC

2x Intel 1GbitEthernet LAN

Storage

16TB-220TB Internal (SATA- 6Gb/s-7200 RPM)

Graphics Card

Intel 630 UHD built-in graphics

External Analog Encoder

4Ch / 8Ch/ 16Ch/24Ch/ 32Ch/ 48Ch/64Ch - optional encoder

CPU

i7-12700 Processor

RAM

16 GB DDR4

Dimensions

16.8” W x 25.6” D x 3.5” H

26.6” W x 17” D x 7” H26” W x 16.9” D x 7” H
Certifications

UL Listed, CE, FCC

Name
Description
Size
Downloads
File
Specification
0.8mb
