Ganz - ZNR-2U-96TB - NVR 2U Server, 96TB Storage, DVD-RW

Product Overview

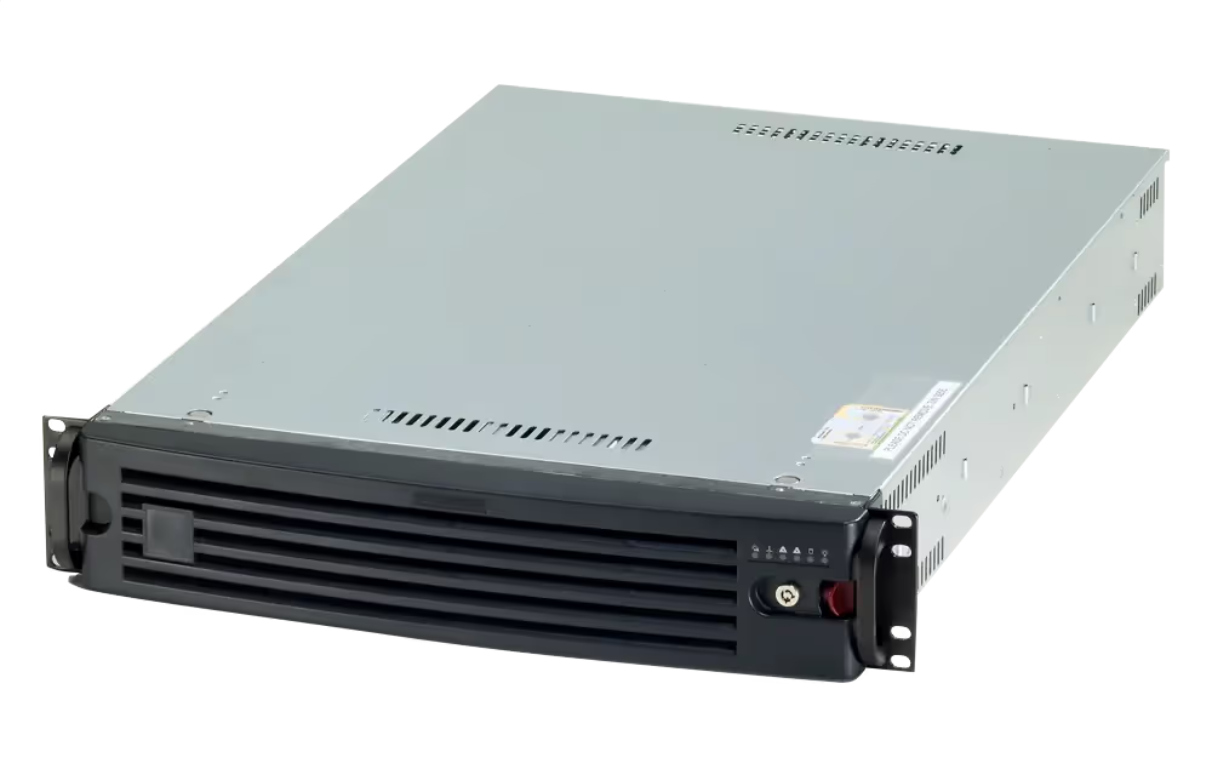

Ganz ZNR-2U-96TB is an enterprise-grade 2U rackmount Network Video Recorder server with 96 TB of internal surveillance-grade storage. It combines multi-core Intel Core i7 processing, a dedicated Windows 11 Pro NVMe system drive, server-grade cooling, and dual Gigabit network interfaces to support up to 128 streaming IP channels in high-density CORTROL deployments.

Key Configuration

Model: ZNR-2U-96TB | Device Type: 2U rackmount NVR server | Processor: Multi-core Intel Core i7 | Storage: 96 TB surveillance-grade storage | System Drive: Dedicated NVMe M.2 SSD | Operating System: Windows 11 Pro | Network: Dual Gigabit Ethernet interfaces | Capacity: Up to 128 streaming IP channels | VMS Compatibility: Ganz CORTROL Premier and Global

Key Features

• · 2U rackmount form factor fits professional server racks and high-density equipment rooms
• · 96 TB of internal surveillance-grade storage supports extended video retention
• · Supports up to 128 streaming IP channels
• · Multi-core Intel Core i7 processing supports high-throughput video decoding and playback
• · Designed to handle concurrent high-resolution IP streams including 4K and 8K video
• · Windows 11 Pro runs on a dedicated NVMe M.2 solid-state drive
• · Separates operating-system activity from continuous surveillance database writes
• · Internal ventilation and multi-fan cooling support intensive rack workloads
• · Dual Gigabit network interfaces support isolation of camera traffic from client and corporate traffic
• · Optimized for Ganz CORTROL automation, interactive E-maps, text insertion, and metadata workflows

Technical Context

Multi-core Intel Core i7 processing provides the foundation for H.265/H.264 video decoding, synchronized multi-channel playback, timeline scrubbing, and smart forensic searches. A dedicated NVMe M.2 drive keeps Windows 11 Pro and background system tasks independent from the high-volume writes generated by the video database. Server-grade ventilation and multi-fan cooling are designed to maintain stable operation during intensive recording and storage workloads, while the dual Gigabit interfaces can separate camera traffic from remote-client and corporate network traffic.

Installation Notes

The recorder is intended for installation in a standard 2U server rack and use with Ganz CORTROL Premier or CORTROL Global software. One Gigabit interface can be assigned to the camera network and the second to remote-client, mobile, or corporate management access. Storage and channel configuration should match camera resolution, codec, recording schedules, retention requirements, and VMS policies.
