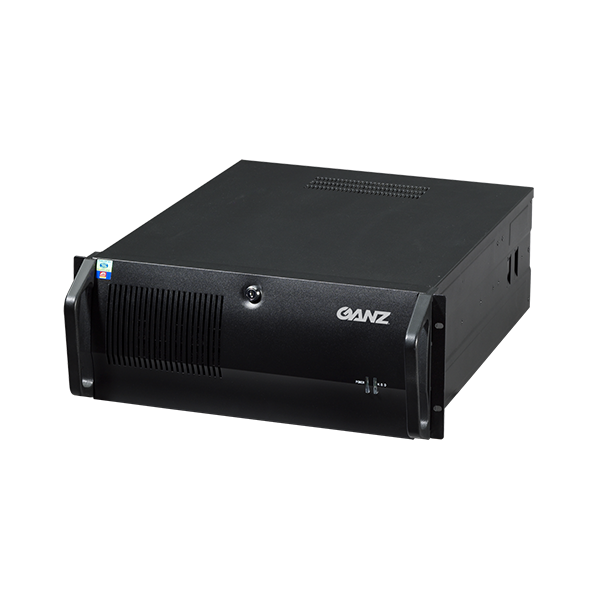

Ganz - ZNR-4U-24GB-GPU - 24GB Nvidia RTX 20 Series or greater GPU including a 1200W PS Upgrade
Part number:
ZNR-4U-24GB-GPU
Price:

24GB Nvidia RTX 20 Series or greater GPU  including a 1200W PS Upgrade. The ZNR Series is a robust line of 2U and 4U machines optimized to work with NVR Software for sensitive & long-term storage of IP Megapixel cameras. Designed for use with Ganz CORTROL surveillance software. See the datasheet for hardware specifications and capacity chart. 108TB and above are 8 bay models.



Features:

  • Advanced Intel processors & chipset optimized for HD Video
  • Servers are pre-installed with Windows 11 Pro (64 Bit) on a dedicated SSD
  • Servers support all GANZ IP camera models
  • Server with & without encoder 18TB ~ 180TB, for up to 128 channels
  • Intel i7-12700 12 Core Processor
  • Built-in Intel 630UHD Video Graphics with HDMI & DVI outputs
  • 16GB of DDR4 Kingston RAM
  • 2x 1 Gigabit Network Cards
  • The advanced cooling system ensures optimal performance & long-term reliability
  • Available in 2U and 4U models
  • Can be pre-loaded with Ganz CORTROL surveillance software
  • NDAA Compliant
ZNR ServerZNR-2U-xTBZNR-4U-xTB (5 Bay)ZNR-4U-xTB (10 Bay)
Power Supply750W PS
Form Factor2URack mount4U Desktop (Rack mountable)
Cooling System4x 80mm front fans2x 80mm front fans
Operating SystemWin11 Pro (64 Bit) on an 240G NVME or SSD
NIC2x Intel 1Gbit Ethernet LAN
Storage16TB-220TB Internal (SATA - 6Gb/s-7200 RPM)
Graphics CardIntel 630 UHD built-in graphics
External Analog Encoder4Ch / 8Ch/ 16Ch/24Ch/ 32Ch/ 48Ch/64Ch - optional encoder
CPUi7-12700 Processor
RAM16GB DDR4
Dimensions16.8” W x 25.6” D x 3.5” H26.6” W x 17” D x 7” H26” W x 16.9” D x 7” H
CertificationsUL Listed, CE, FCC
Name
Description
Size
Downloads
File
Datasheet
0.8mb
