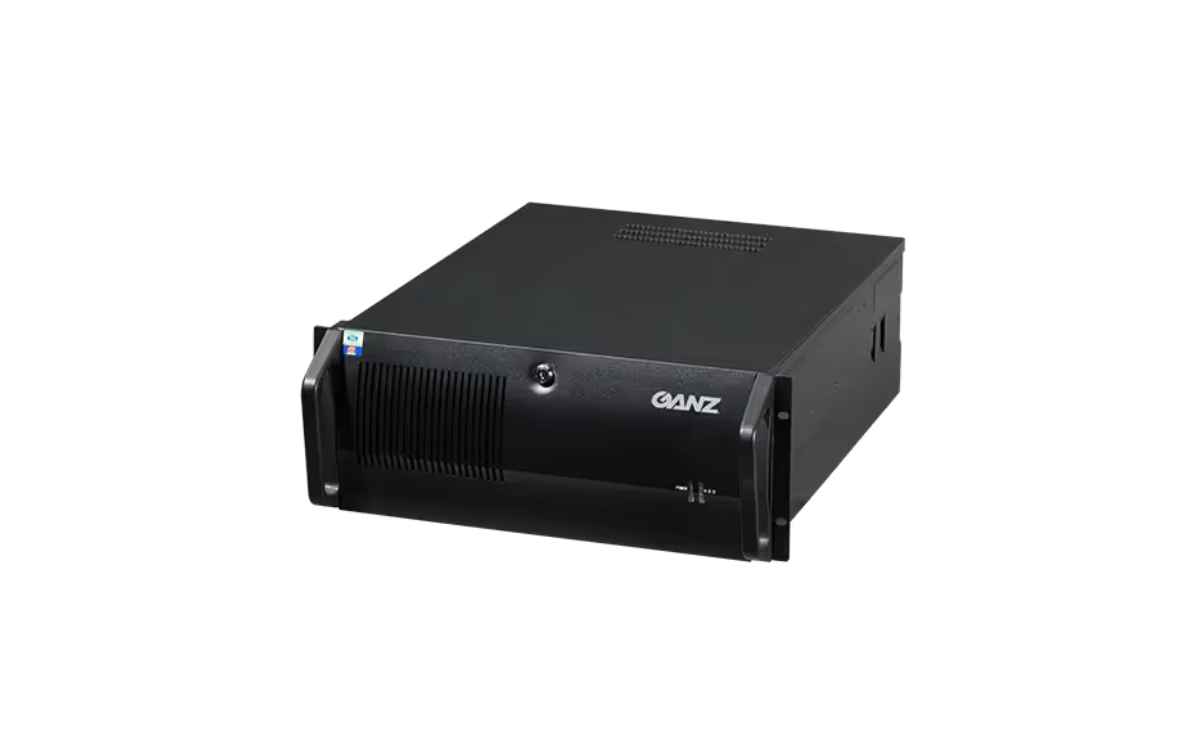

Ganz - ZNR-4U-32GB-GPU - ZNR 4U IP NVR Series with Intel i7-12700
Product Overview
The Ganz ZNR 32GB-GPU is a professional network video recorder configuration designed for Ganz CORTROL VMS and compatible NVR software. It combines an Intel i7-14700 processor, 32GB RAM, GPU-equipped video output, Windows 11 Pro on a dedicated NVMe drive, and dual Gigabit network connectivity. The ZNR platform supports up to 128 IP cameras in 2U rackmount or 4U chassis configurations.
Key Configuration
Model: ZNR 32GB-GPU | Camera Capacity: Up to 128 IP cameras | Processor/Memory: Intel i7-14700, 32GB RAM | Connectivity: 1 × 2.5Gbps NIC, 1 × 1Gbps NIC | Operating System: Windows 11 Pro 64-bit on 500GB NVMe | Graphics: GPU-equipped video output
Key Features
- · Supports up to 128 IP camera channels
- · Intel i7-14700 processor supports high-throughput NVR workloads
- · 32GB RAM supports multi-channel video management and client applications
- · GPU-equipped graphics configuration supports local surveillance display output
- · Windows 11 Pro 64-bit is installed on a dedicated 500GB NVMe drive
- · Includes one 2.5Gbps NIC and one 1Gbps NIC
- · Supports internal SATA 6Gb/s, 7200 RPM surveillance storage configurations
- · Available in 2U rackmount and 4U desktop or rackmount form factors
- · Designed for use with Ganz CORTROL VMS software
- · NDAA compliant with UL, CE, and FCC certifications
Technical Context
The ZNR architecture is optimized for NVR software workloads such as live viewing, recording, playback, and multi-camera management. A dedicated NVMe drive separates the operating system from surveillance storage, while the 2.5Gbps and 1Gbps network interfaces support flexible camera and client network layouts. The GPU configuration provides local video output for surveillance displays.
Installation Notes
The ZNR platform is available in multiple chassis formats. The 2U rackmount version measures approximately 25.6 × 16.8 × 3.2 inches, while 4U versions measure approximately 21.6 × 17 × 7 inches or 25.6 × 16.9 × 7 inches, depending on the chassis. Select the appropriate rack or desktop installation method and provide adequate ventilation for continuous operation.
| Technical Specifications | |
| Product Model | Ganz ZNR Series - 32GB GPU Configuration |
| Product Type | Network video recorder optimized for Ganz CORTROL VMS |
| Camera Capacity | Up to 128 IP cameras |
| Processing and Graphics | |
| Processor | Intel Core i7-14700 processor 12-core processor |
| Graphics Card | Dedicated GPU with 32GB video memory |
| System Memory (RAM) | 16GB DDR4 Kingston RAM |
| Operating System | Windows 11 Pro, 64-bit, pre-installed |
| Primary OS Drive | 500GB NVMe solid-state drive (SSD) |
| Storage | |
| Internal Storage | Configurable internal storage from 20TB to 200TB |
| Hard Drive Specification | SATA, 6Gb/s, 7,200 RPM |
| Network Interfaces | |
| Network Interfaces | 1 × 2.5Gb Ethernet NIC 1 × 1Gb Ethernet NIC |
| Chassis Options | |
| 2U Chassis | 2U rackmount chassis Supports 20TB to 100TB internal storage |
| 4U Chassis | 4U desktop chassis, rackmountable Supports 120TB to 200TB internal storage |
| 2U Dimensions (W × D × H) | 25.6 × 16.8 × 3.2 in |
| 4U Dimensions (W × D × H) | 21.6 × 17 × 7 in or 25.6 × 16.9 × 7 in |
| Installation | Rack-mounted or desktop, depending on chassis configuration |
| Power and Cooling | |
| Power Supply | 650W power supply for 2U chassis 750W power supply for 4U chassis |
| Cooling System | 2U chassis: 4 × 80mm front fans 4U chassis: 2 × 80mm front fans |
| Video Capacity Reference | |
| Supported Camera Resolutions | D1, 960H, 0.9MP, 2.1MP, 3MP, 5MP, and 8MP |
| Camera Capacity | D1/960H: up to 128 channels 0.9MP: up to 72 channels 2.1MP: up to 32 channels 3MP: up to 20 channels 5MP: up to 12 channels 8MP: up to 8 channels |
| Capacity Note | Capacity estimates assume H.264 compression and that the NVR client is not running the recorder. Performance may vary according to camera and motion settings. |
| Certifications and Compliance | |
| Certifications | UL Listed, CE, FCC |
| Compliance | NDAA compliant |
