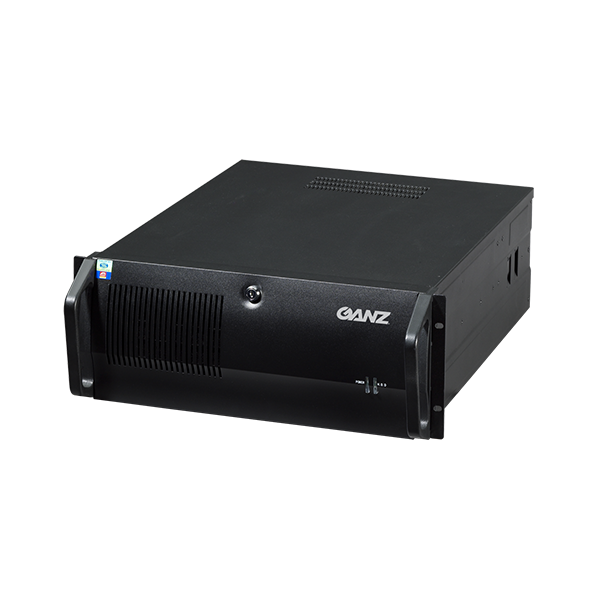

The ZNR Series is a robust line of 2U and 4U machines optimized to work with NVR Software for sensitive & long-term storage of IP Megapixel cameras. Designed for use with Ganz CORTROL surveillance software. See the datasheet for hardware specifications and capacity chart. 108TB and above are 8 bay models.
Features:
ZNR Server | ZNR-2U-xTB | ZNR-4U-xTB (5 Bay) | ZNR-4U-xTB (10 Bay) | |
Power Supply | 750W PS | |||
Form Factor | 2URack mount | 4U Desktop (Rack mountable) | ||
Cooling System | 4x 80mm front fans | 2x 80mm front fans | ||
Operating System | Win11 Pro (64 Bit) on an 240G NVME or SSD | |||
NIC | 2x Intel 1Gbit Ethernet LAN | |||
Storage | 16TB-220TB Internal (SATA - 6Gb/s-7200 RPM) | |||
Graphics Card | Intel 630 UHD built-in graphics | |||
External Analog Encoder | 4Ch / 8Ch/ 16Ch/24Ch/ 32Ch/ 48Ch/64Ch - optional encoder | |||
CPU | i7-12700 Processor | |||
RAM | 16GB DDR4 | |||
Dimensions | 16.8” W x 25.6” D x 3.5” H | 26.6” W x 17” D x 7” H | 26” W x 16.9” D x 7” H | |
Certifications | UL Listed, CE, FCC |
