Ganz - ZNR-96TB-RL - IP Raid5 NVR with Intel i9-14900 16 Core CPU
Product Overview

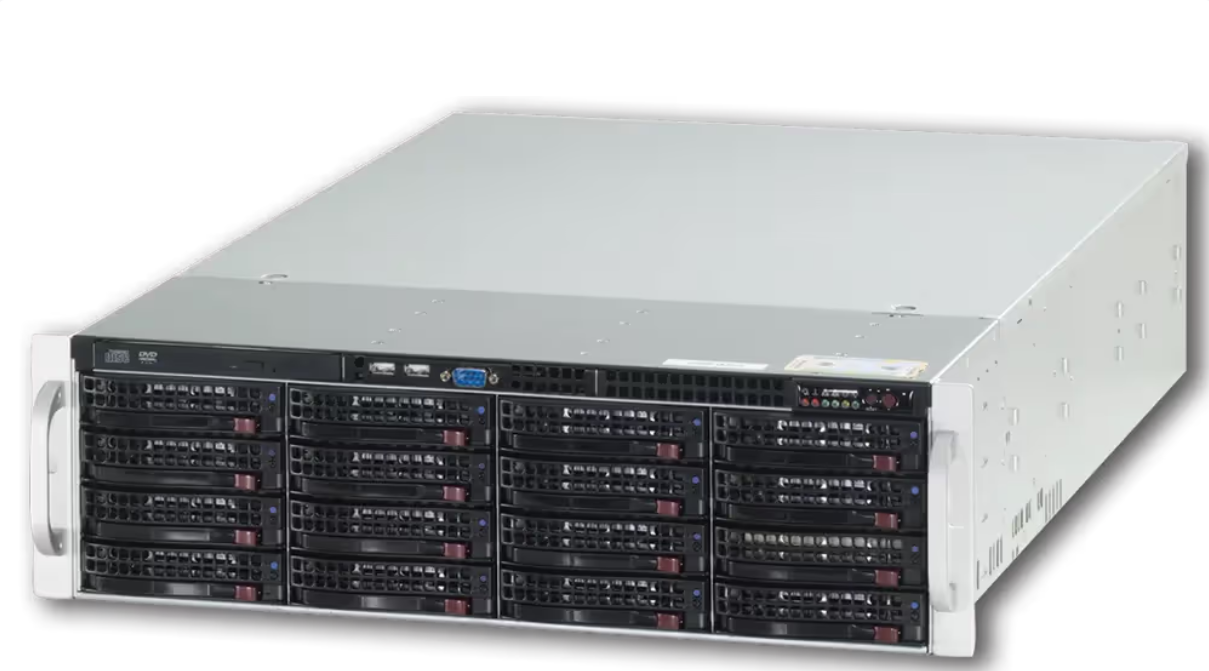

The Ganz ZNR-RAID-lite is a 3U RAID-5 Network Video Recorder designed to support up to 128 IP camera channels with Ganz CORTROL and compatible NVR software. This configuration provides 96TB of surveillance storage, two hot-spare drives, and redundant power supplies for resilient, continuous video recording. Windows 11 Pro runs from a dedicated 500GB NVMe drive, while 32GB of RAM and dual network interfaces support demanding surveillance workloads.
Key Configuration
Model: ZNR-RAID-lite | Storage: 96TB RAID-5 surveillance storage with 2 hot-spare HDDs | Memory: 32GB RAM | Connectivity: 1 × 2.5Gbps NIC, 1 × 1Gbps NIC | Operating System: Windows 11 Pro 64-bit on 500GB NVMe | Power: Redundant hot-swappable power supplies
Key Features
- · RAID-5 network video recorder supports up to 128 IP camera channels
- · 96TB storage capacity is configured for continuous surveillance recording
- · RAID 5 provides distributed parity and protection against a single drive failure
- · Two hot-spare HDDs support rapid array recovery
- · Windows 11 Pro 64-bit is installed on a dedicated 500GB NVMe drive
- · 32GB fully buffered RAM supports multi-channel video management
- · Includes one 2.5Gbps NIC and one 1Gbps NIC for flexible network connectivity
- · Redundant hot-swappable power supplies improve system availability
- · 3U chassis provides a 16-bay platform for internal drive installation
- · Designed for use with Ganz CORTROL surveillance software
Technical Context
RAID 5 distributes parity data across the storage array, allowing continued operation after a single drive failure. Hot-spare drives are reserved for replacement and rebuild operations, while the NVMe system drive keeps Windows and applications separate from the main surveillance storage workload.
Installation Notes
The recorder uses a 3U rackmount chassis measuring approximately 660 × 432 × 132 mm (26 × 17 × 5.2 in). Install it in a compatible rack with adequate airflow and access to the hot-swappable drive bays and redundant power supplies. The stated 96TB capacity refers to the configured surveillance storage and may vary after RAID overhead and formatting.
| Technical Specifications | |
| Product Model | ZNR-96TB-R |
| Product Type | RAID-5 network video recorder (NVR) |
| Camera Capacity | Up to 128 IP cameras |
| Form Factor | 3U rackmount chassis 16-bay design with hot-swappable drive support |
| Processing and Operating System | |
| Processor | Intel Core i9-14900 CPU 16 cores, 2.4 GHz |
| Graphics Card | 64-bit graphics card with 2GB video memory HDMI, DVI-I, and VGA outputs |
| System Memory (RAM) | 32GB fully buffered RAM |
| Operating System | Windows 11 Pro, 64-bit, pre-installed |
| Primary OS Drive | 500GB NVMe solid-state drive (SSD) |
| Storage and RAID | |
| Internal Storage | 96TB raw storage capacity |
| RAID Configuration | RAID 5 |
| Drive Support | Hot-swappable HDD configurations |
| Hot Spare Drives | 2 hot spare drives included Hot spare drives are not counted as storage capacity |
| Network Interfaces | |
| Network Interfaces | 1 × 2.5Gb Ethernet NIC 1 × 1Gb Ethernet NIC |
| Power and Cooling | |
| Power Supply | 2 × 820W redundant power supplies |
| Cooling System | 2 × 120mm front fans 2 × 80mm top fans |
| Mechanical | |
| Installation | Rack-mounted |
| Dimensions (W × D × H) | 26 × 17 × 5.2 in |
| Certifications and Compliance | |
| Compliance | NDAA compliant |
| Warranty | 3-year warranty |
