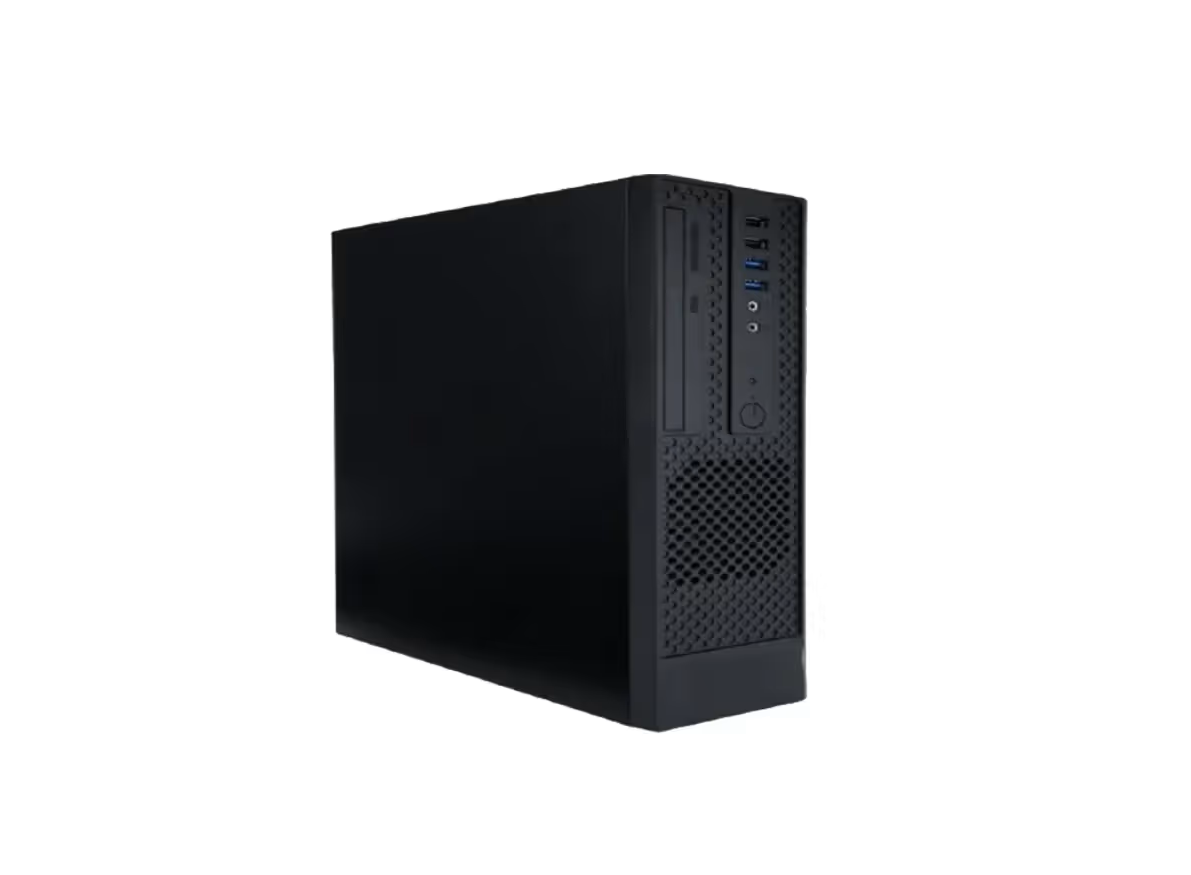

Ganz - ZNR-MINI225-28TB - Intel Core Ultra 5 225 CPU Network Video Recorder, 28TB

Product Overview

Ganz ZNR-MINI225-28TB is a compact Network Video Recorder server with 28 TB of internal surveillance-grade storage. It combines an Intel Core Ultra 5 225 processor, a dedicated Windows 11 Pro operating environment, and dual Gigabit network interfaces for continuous high-resolution IP video recording and server-side metadata processing.

Key Configuration

Model: ZNR-MINI225-28TB | Device Type: Mini Network Video Recorder server | Processor: Intel Core Ultra 5 225 | Storage: 28 TB surveillance-grade HDD storage | Operating System: Windows 11 Pro 64-bit | System Drive: Dedicated internal SSD | Network: Dual Gigabit Ethernet interfaces | VMS Compatibility: Ganz CORTROL Premier and Global

Key Features

• · 28 TB of internal surveillance-grade storage supports extended video retention
• · Intel Core Ultra 5 225 processor supports high-resolution video decoding and metadata processing
• · Designed to manage concurrent IP camera streams including 4K and 8K video
• · Windows 11 Pro 64-bit provides a dedicated operating environment for the NVR server
• · Dedicated internal SSD separates operating-system activity from video-recording storage operations
• · Dual Gigabit network interfaces allow camera traffic and management traffic to be separated
• · Supports continuous multi-stream surveillance recording and centralized video archiving
• · Provides a hardware platform for server-side metadata management and local analytics processing
• · Optimized for Ganz CORTROL Premier standalone and CORTROL Global distributed deployments
• · Supports CORTROL automation rules, map overlays, text insertion, and metadata workflows

Technical Context

The Intel Core Ultra 5 225 processor provides the compute foundation for multi-channel video decoding, recording services, and server-side metadata processing. A separate SSD for Windows 11 Pro keeps operating-system tasks independent from the high-volume write operations generated by continuous surveillance recording. The two physical Gigabit interfaces can be configured to isolate camera traffic from remote client and management traffic, helping organize network load in dedicated surveillance environments.

Installation Notes

The recorder is intended for standalone deployment with Ganz CORTROL VMS software or as a physical node in a CORTROL Global system. For network segmentation, one Gigabit interface can be assigned to the camera network and the second to management or remote-client access. The 28 TB storage capacity should be configured according to the camera count, stream resolution, recording schedule, retention period, and VMS storage policy.
