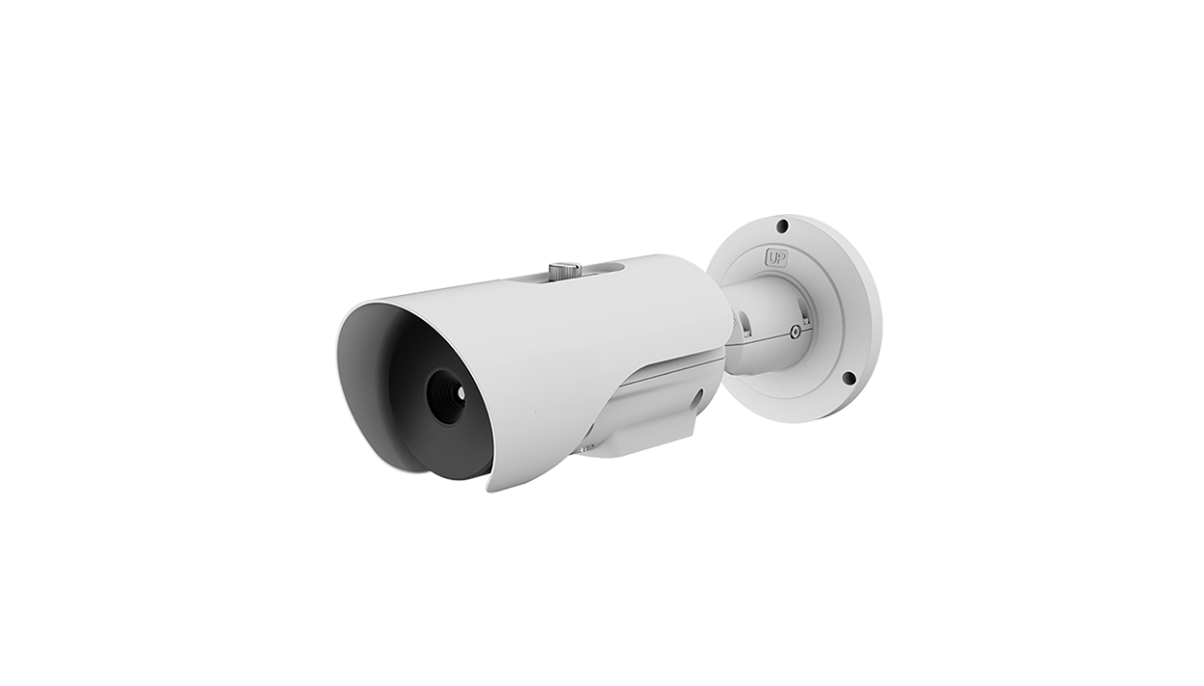

Ganz - ZNT8-B1F25-1 - Thermal Network Bullet Camera with Analytics, 25mm Fixed

Product Overview

The Ganz ZNT8-B1F25-1 is a thermal network bullet camera with a 384 × 288 uncooled VOx detector and a fixed 25mm focus-free lens. It provides narrow-angle thermal imaging, human and vehicle detection, smoke and fire-point detection, and temperature measurement for outdoor security and safety applications. The camera supports three temperature-measurement rule types, local microSD recording, PoE, and IP66 protection.

Key Configuration

Model: ZNT8-B1F25-1 | Thermal Resolution: 384 × 288 | Lens: Fixed 25mm, F1.0, 14° × 11° field of view | Connectivity: 10/100Mbps RJ-45, PoE IEEE 802.3af, ONVIF, SDK, CGI | Protection: IP66

Key Features

• · 384 × 288 VOx uncooled focal-plane array provides thermal imaging
• · Fixed 25mm F1.0 focus-free lens provides a 14° horizontal field of view
• · NETD of ≤40mK supports thermal sensitivity for scene analysis
• · Supports human and vehicle detection and capture
• · Provides smoke detection and fire-point detection
• · Intelligent analytics include intrusion, line crossing, loitering, wrong-way, enter-area, leave-area, and people counting
• · Supports spot, line, and area temperature measurement rules
• · Measures temperatures from -20°C to 150°C or 0°C to 550°C with ±2°C or ±2% accuracy
• · Supports temperature-difference, threshold, and temperature-rise alarms
• · Built-in microSD slot supports cards up to 1TB

Technical Context

The thermal sensor detects infrared radiation in the 8-14µm spectral range and can display temperature information from configured spot, line, and area rules. Up to 20 temperature rules are supported, including one full-screen rule and 19 additional measurement regions. Thermal analytics can trigger alarms for abnormal temperatures, fire points, smoke, human or vehicle intrusion, and other defined events.

Installation Notes

The metal camera measures Ø120.5 × 315.9-352.6 mm, with final dimensions varying by lens option. It supports 12V DC, 24VAC, or PoE IEEE 802.3af power, consumes up to 4.5W, and includes one audio input/output, two alarm inputs/outputs, RS-485, CVBS output, and a reset button. The camera operates from -40°C to 60°C at up to 90% non-condensing humidity and supports optional junction-box, pole-mount, and corner-mount accessories.
