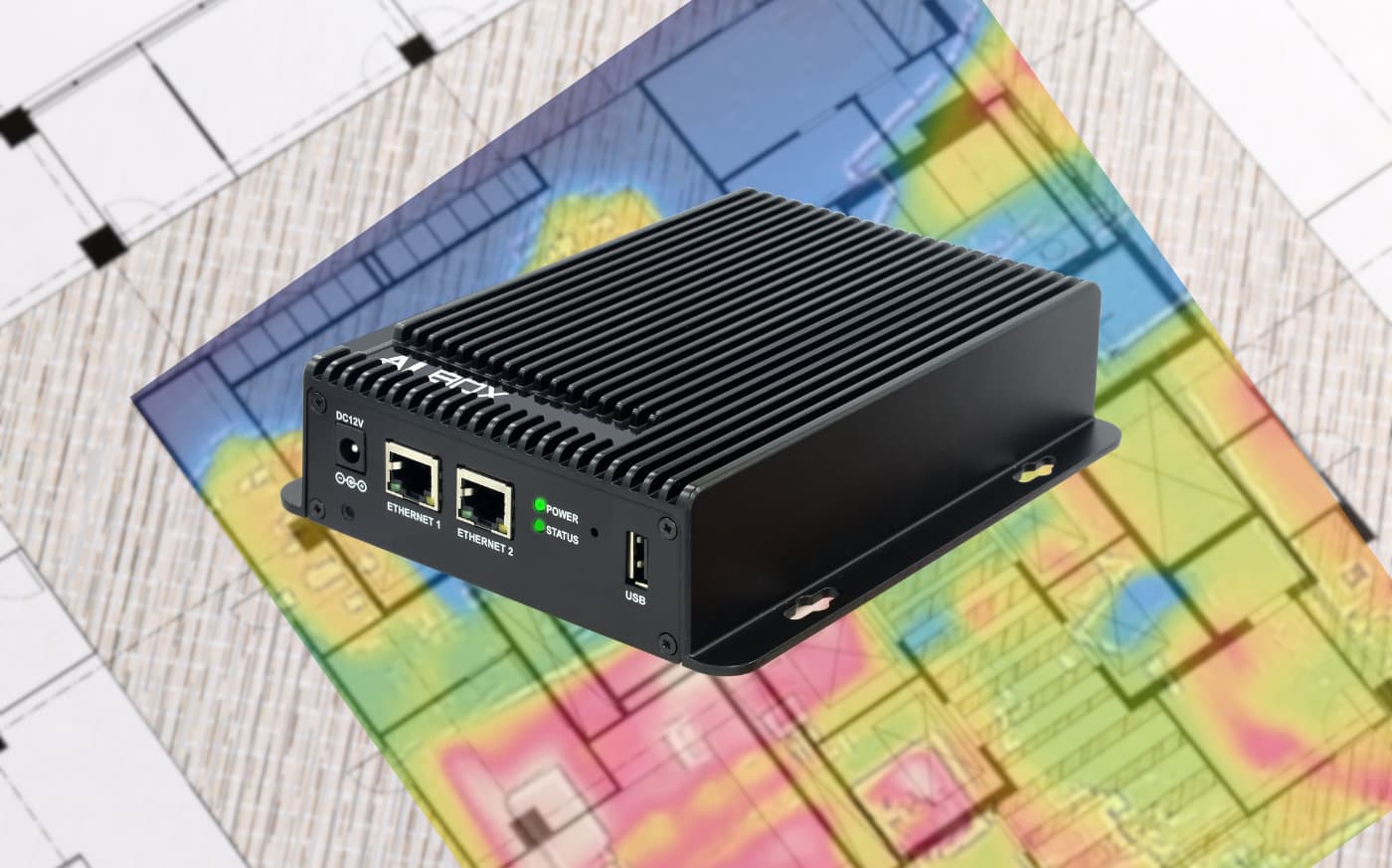

Ganz - ZSL-AH - AI Licenses for Advanced Heatmap for ZN-AIBOX-STD
Part number:
ZSL-AH
Price:
Description
AI Licenses for Advanced Heatmap for ZN-AIBOX-STD
Features:
- Event rule combining - AI video analytics
- Simple AI setup with existing IP cameras
- Multi-level AI-based false alarm reduction
- High-performance pose estimation AI technology
- Smart scene detection
- Run multiple AI apps on each video channel
- Easy integration with other systems
- Web-based configuration
- Enhanced security options
- NDAA compliant
| AI Application Packages | Pre-installed Package | AI Box V2.0 Standard Package - ZN-AIBOX-STD • Dynamic Privacy Masking • Standard Attribute (clothing colors) • Queue Management • Standard Heat Map • Intrusion Detection • Loitering Detection • People Counting • Vehicle Counting • Zone Counting (zone occupancy) • Virtual Fence (line crossing) • Stopping Detection • Stay & Go (enter & exit) • Occupancy Counting • Combine Rule • Multi-Zone Counting • Car Occupancy Counting | Pro Package Add-on ZSL-PRO • Crowd Detection • Advanced Visitor Analysis • Intentional Body Gaze Detector • Hand & Foot Intrusion • Imminent Threat • Fallen Person Detection • Animal Detection • Vehicle Counting (bus, truck, other cars) • Thermal (human) Detector • Drone View • Advanced Attribute • Fisheye Camera Support • Vehicle Type Detection • Also includes Standard Package licenses |
| AI Application Add-ons | Add-on Licenses (Per channel license required) | • License Plate Recognition (LPR) - US, EU, JP, KR • Advanced Heat Map • No PPE Detection • Forklift Driver No Helmet • Illegal Dumping • PTZ Auto Tracking • Aggression Detection • Bullying Detection • Staff Exclusion People Counting | |
| AI Engine | Included in AI Applications | Detector, Tracker, Recognizer, and Behavior Analyzer | |
| Event Trigger | Included in AI Applications | Behavior Detection Trigger, Counting Trigger, System Trigger, and Recognition Trigger | |
| False Alarm Filter | Perspective interpolation based object size filter | ||
| AI-based multi-level prevention filter | |||
| Combined with Other Triggers | Yes | ||
| Event Action | System Events | Alarm in, virtual alarm in, video loss / recovery, system start, disarm, recurrence, login, tamper detection | |
| System Action Handler | Relay out, RS485, audio back channel (camera speaker) | ||
| Network Action Handler | HTTP, FTP, e-mail (SMTP), AWS S3, TCP, Onvif | ||
| VMS Action Handler | Ganz CORTROL plug-in, Milestone, NX Plug-in | ||
| NVR/DVR Action Handler | HTTP API | ||
| Combining Rules with Other Events | Yes | ||
| Pre/Post Snapshot | Yes | ||
| Analytics Report | Counter Report | TBD | |
| Visitor Analytics Report (License, TBD) | - | ||
| Queue Management Report (TBD) | - | ||
| Heatmap and Pathmap Reports (TBD) | - | ||
| UI | Web UI | HTML5 web UI (no plug-ins) | |
| API | API | Onvif, REST | |
| Video | Number of Input Video Channels | AI Apps Supported in 8ch Mode • Standard Package • Pro Package • Add-on licenses | AI Apps Supported in 16ch Mode • Intrusion • Loitering • People Counting • Vehicle Counting • Zone Counting • Virtual Fence • Stopping • Stay & Go, • Occupancy • Combined Counter |
| Annotated Video Output - RTSP | Yes - 8 ch mode | No - 16 ch mode | |
| Pre / Post JPEG Snapshot | Yes - 8 ch mode | Yes - 16 ch mode | |
| Max Video Input Resolution | 4K (3840x2160) @ 60 fps | 2MP (1920x180) @ 240 fps | |
| Video Input Method | RTSP, RTSP over HTTPS, Onvif | ||
| Supported Input Video Format | H.265 / H.264 | ||
| Supported Input FPS | 3 ~ 30fps per channel Note: If channel uses dynamic FPS - Turn off | ||
| Supported Input GOP | Same value as FPS setting per channel Note: If channel uses dynamic GOP - Turn off | ||
| Video Output Stream Method | RTSP over TCP/UDP, RTSP over websocket, RTSP over HTTPS (TBD) | ||
| Monitor Out / Monitor Resolution | - / - | ||
| Audio | Audio Input / Output | 1 x Audio in / 1 x Audio out | |
| Interface | USB | 1 x USB2.0, 1 x USB3.0 | |
| RS-485 | 1 | ||
| LAN | 2 x 10/100/1000 BASE-T Ethernet (ETH1/ETH2) | ||
| Wiegand | 1ch input / 1ch output | ||
| Alarm I/O | Alarm Input/ Output | 4ch input / 1ch (relay) output | |
| Additional | Watchdog / RTC | Yes / Yes | |
| Cooling Fan | - | ||
| Factory Reset Button | Yes | ||
| LED Indicators | 1 x power LED (3 color) / 1 x Status LED (3 color) | ||
| Power | Power Supply / Consumption | 12V/3.3A adaptor / 16 watts | |
| Environment | Temperature / Humidity | -4ºF~158ºF (-20ºC ~ 70ºC) / 10 ~ 90% NC | |
| Chassis | Dimensions | 5.6” L x 7.1” W x 1.7” H , 142mm L x 180mm W x 42mm H | |
| Weight (net/gross,) | 2lbs / 3.3lbs, 0.9/ 1.5 Kg | ||
| Certifications | CE, FCC, KC, NDAA Compliant | ||
