GeoVision - 54-BXWIUSB-MP02 - GV-WiFi Adaptor V2
Part number:
140-WFUSB-000
Price:

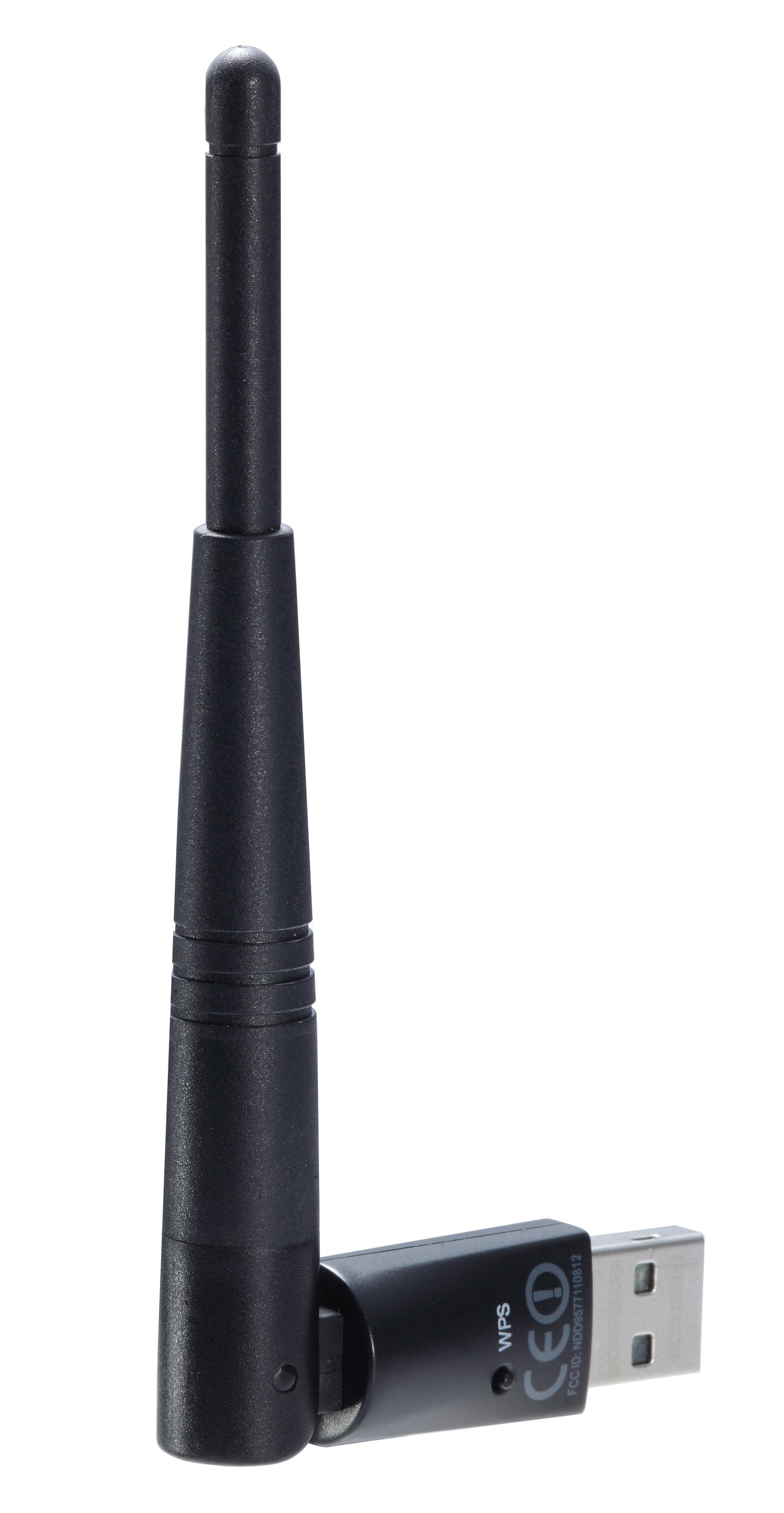

GV-WiFi Adaptor V2 is designed to connect GV-IP devices to a wireless network. This product supports wireless connections at 2.4 GHz and 5 GHz. GV-WiFi Adaptor V2 is a plug-and-play device; no drivers are required for it to function.
Features:
- GV‐WiFi Adaptor V2
- Installation Guide
- Mini USB to standard USB adapter (For use with H.265 Box IP Cameras only)
Note:
- Specifications are subject to change without notice.
| Network Standard | 2.4 GHz: IEEE 802.11b, 802.11g, 802.11n 5 GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n | ||
| Chipset | RTL8811AU | ||
| Host Interface | USB 2.0 Backward Compatible (Standard‐A Type connector) | ||
| Operating Frequency | 2.4000 ‐ 2.4835GHz (subject to local regulations) 5.150 ‐ 5.825GHz (subject to local regulations) | ||
| Dimensions (L x W x H) | 15 x 15 x 155 mm (0.59 x 0.59 x 6.10”) | ||
| Weight | 0.01 kg (0.02 lb) | ||
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
installation Guide
0.4mb
