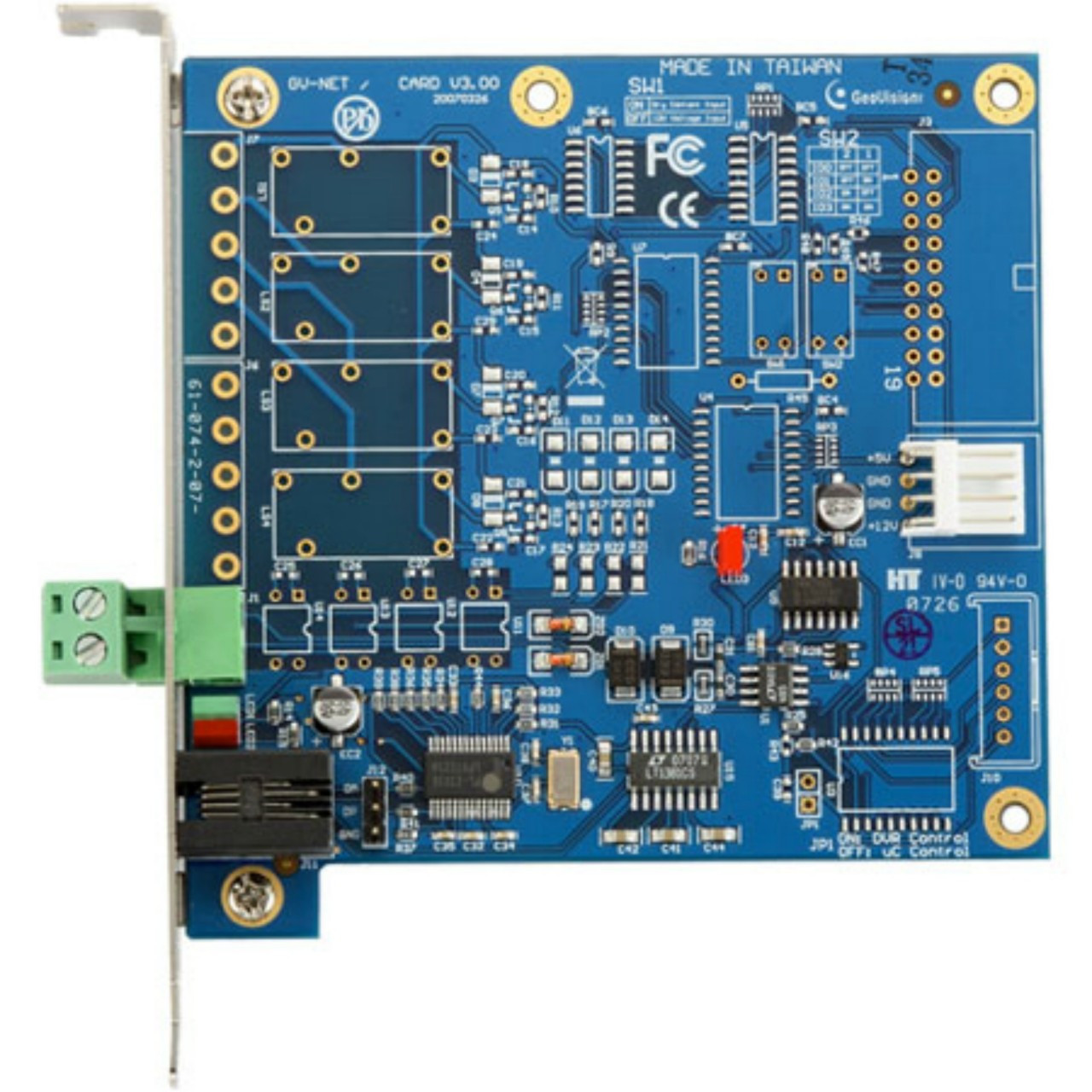

GV-NET Card V3.2 is a RS-485 / RS-232 interface converter that can be installed inside a PC. It also supports connection via USB port.
|
Specifications |
||
|
OS Supported |
32‐bit |
Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2008 |
|
64‐bit |
Windows 7 / 8 / 8.1 / 10 / Server 2008 / Server 2012 / Server 2012 R2 |
|
|
Interface |
RJ‐11 to DB9 (RS‐232) |
|
|
RJ‐11 to USB |
||
|
3‐pin internal USB to internal USB |
||
|
RS‐485+ / RS‐485‐ |
||
|
Communication |
RS‐485 1,200~115,200 bps; USB |
|
|
Environmental Conditions |
0~50°C / 32~122°F, 5%~95% (non‐condensing) |
|
|
Dimensions (W x H) |
97 x 90 ( mm) / 3.82 x 3.54 (in) |
|
|
Installation Guide |
||
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
installation Guide
0.1mb
