GeoVision - 55-RG150-000 - Recording Server 150 Channel
• Up to 256 IP channels recording and up to 600 IP channels distributing
• Video gateway between IP devices and receiving clients (GV-VMS, GV-NVR, GV-Control Center, GV-Edge Recording Manager,
GV-Eye and others))
• Support for third-party IP video devices (Sony, Axis, VIVOTEK, Panasonic, HikVision, Arecont Vision), and ONVIF, PSIA and RTSP
protocols
• Different recording policies for each channel to record continuously, upon motion detection, upon I/O trigger or by schedule
(recording upon I/O trigger is only for GV-IP devices)
• Video playback using Remote ViewLog

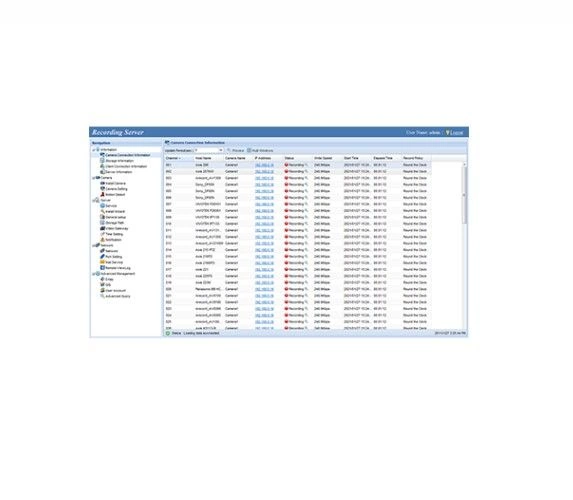

• Web interface to remotely configure and monitor GV-Recording Server using Internet Explorer, Firefox, Google Chrome and Safari
• Passive and active connection methods with IP video devices (Passive connection only for up to 128 channels and only supported
by GV-IP devices)
• Solution for Mobile DVR (GV-Video Server, GV-Compact DVR) to obtain a public IP address
• Bandwidth monitoring
• Two-way audio communication (only for GV-IP devices through active connection)
• Remote event monitoring through GV-Vital Sign Monitor
• Remote backup through GV-Backup Center, GV-Failover Server or GV-Redundant Server
• IP device monitoring, event search and remote playback through GV-Cloud Center
• Smart streaming
• Live streaming of GV-IP cameras on YouTube
• Support for 31 languages
| Number of IP Video Device Connections | 256 channels |
| Number of Remote Client Connections | 600 channels |
| Active Connections | Up to 256 channels |
| Passive Connections | Up to 128 channels (only for GV-IP devices) |
| 3rd Party IP Cameras Support | Yes |
| Live Viewing | Single live view, multi-channel live view |
| Recording | Yes (up to 256 channels) |
| Live Streaming on YouTube | Yes (up to 16 channels using H.264 codec) |
| Remote Backup | Yes (with GV-Backup Center, GV-Failover Server and GV-Redundant Server) |
| Protocol | DynDNS, HTTP, HTTPS, ONVIF, PSIA, RTSP, SMTP, SNMP, TCP, UDP, UPnP |
| E-Mail Notification | Yes (for Active connection lost, passive connection lost, USB protection key removed and inserted, recycling of recorded video, start keep days operation, motion detection, disk full, disk error, I/O trigger, disk removed, recording failure) |
| SMS Notification | No |
| 2-Way Audio | Yes (only for GV-IP devices through active connection) |
| GPS support | Yes (only for GV-IP cameras) |
| Number of Accounts | Up to 1000 accounts |
| Mobile Phone Support | Yes (With GV-Eye) |
| Bandwidth Control | No |
| IE Live View | Yes (up to 16 channels per page) |
| IE Event Query | Yes |
| IE I/O Control | No |
| Language | Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
The GV-Recording Server is a video streaming solution designed for large-scale surveillance. It supports up to 256 recording channels from various IP sources. Each IP camera can be configured to record continuously, upon motion detection or I/O trigger, or according to a schedule, via an intuitive web interface. It can also distribute up to 600 channels to GeoVision software, including GV-NVR, GV-VMS, GV-Control Center, and GV-Edge Recording Manager. Leveraging the GV-Recording Server enables users to maintain optimal frame rates while significantly reducing the CPU load and bandwidth usage of IP video devices.
