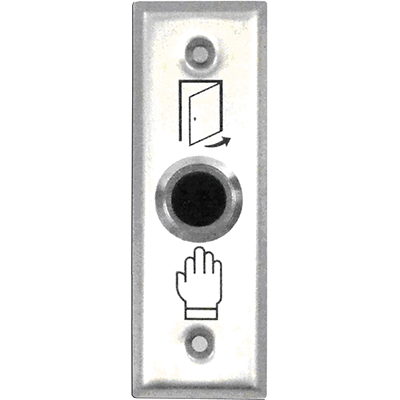

GeoVision - 81-IRBIB65-001U - GV-Infrared Button IB-65 Infrared Button
• Activates without pressing the button to prevent the spread of diseases.
• Specially designed to prevent any interference from other infrared.
• Double color status light and adjustable proximity range.
• Door opening time can be set as a trigger state (0.5~20 sec) or a toggle mode output
• Operating temperature: ‐10°C ~ +70°C / 14°F ~ 158°F
• Sealing protection: IP65.
• Infrared proximity has a total lifespan of 100,000 hours. Relay has a total lifespan of 1,000,000 times.
| Model | GV-IB65 |
| Standard | US |
| Power input | DC12V ~ DC 24V (± 10%) |
| Proximity Range | 3 ~ 12 cm / 1.18 ~ 4.72 in (± 25%) |
| Output Loading | 1A, DC30V (Max.) |
| Output State | Trigger state (0.5 ~ 20 sec) or toggle mode |
| Life Time | Infrared sensor: 100,000 hours Relay mechanical lifespan: 1000,000 times |
| Default Indicator Color | Standby Mode: Red; Activated Mode: Green (Indicator colors are adjustable.) |
| Case | Stainless Steel |
| Power Consumption | Maximum current 35mA, DC24V |
| Operating Temperature | -10° C ~ +70° C / 14° F ~ 158° F |
| Operating Humidity | Maximum 85% Rh |
| Dimensions (L x W x D) | 115 x 70 x 30 mm / 4.53 x 2.76 x 1.18 in |
| Weight | 95 g / 0.21 lb |
The GV-IB25/GV-IB65/GV-IB85 infrared button can detect movement within a range of 3–12 cm, allowing you to open doors with a wave of your hand. The touchless sensor eliminates the need to touch the button, keeping your hands clean when entering or exiting places such as hospitals, restaurants and shops. Additionally, the built-in relay function enables you to programme the door opening time for enhanced security.
