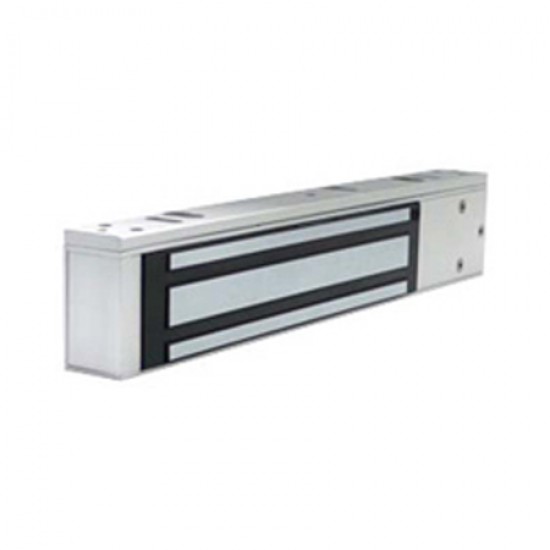

GeoVision - 81-LSH01-001 - GV-ML600 Electromagnetic Lock with Built-In Voltage
Part number:
Price:
• Weight Capacity: Supports up to 250kg, ensuring robust security for various door types.
• Voltage Spike Suppressor: Built-in feature safeguards against electrical surges, enhancing the longevity of the lock.
• Versatile Application: Suitable for single-leaf and double-leaf doors, making it a flexible choice for different installations.
• Installation Ease: Designed for straightforward installation, reducing setup time and cost.
| Voltage | DC 12V / 24V |
| Current | 500mA at 12V / 250mA at 24V |
| Holding Force | 272.15 kg / 600 lb |
| Dimension (L x W x H) | 250 x 47.2 x 26.6 mm / 9.84 x 1.86 x 1.05 in |
| Armature Plate Dimension (L x W x H) | 185 x 38 x 12.5 mm / 7.28 x 1.50 x 0.49 in |
| Certification | CE, UL |
Name
Description
Size
Downloads
File
Installation Manual
0.2mb
