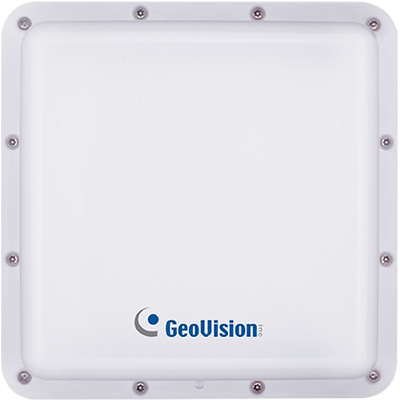

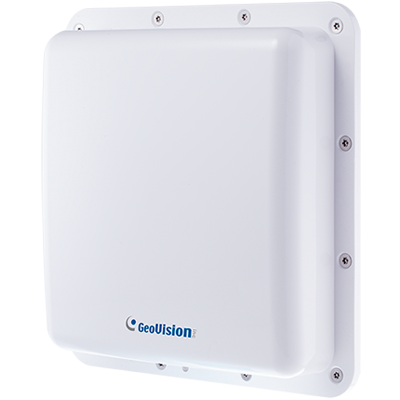

GeoVision - 81-SRFD190-01US - GV-RU9003 outdoor UHF RFID long range reader 64 bits Type B
Part number:
Price:
• Built-in antenna and RF module
• Effective identification with a specially designed antenna pattern
• Compatible with an access controller using the Wiegand 64 interface
• Effective range of up to 10 m (33 ft) under optimal conditions
• Special energy-saving design reduces power consumption
• Support for external sensors and controllers
• Electronic tag compliant with EPC Gen II (ISO 18000-6C) standard
• R&D patent for EMI reduction
• FCC/CE certification
| Input voltage | 9 ~15 V |
| Antenna gain | 7.71 dBi (circular polarization) |
| Antenna receiving | 50 ohm U.FL. |
| Wiegand interface | Wiegand 64 bits, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 |
| Operating frequency | RU9003 TW: 922-928 MHz |
| RU9003 US: 902-928 MHz | |
| RU9003 EU: 865-868 MHz | |
| Emission power | 27.9 dBm |
| Modulation scheme | PR-ASK, ASK |
| Current | <1A max. |
| Protocol | EPC Gen2 (ISO 18000-6C) |
| Receiving sensitivity | -85 dBm |
| Sensing range | 10 m (33 ft) max. |
| Water resistance | IP56 |
| Operating temperature | -20°C ~ 55 °C (-7.6°F ~ 131°F) |
| Storage temperature | -20°C ~ 85°C (-7.6°F ~ 185°F) |
| LEDs | Red, Green |
| Humidity | 5-90 % |
| Dimensions | 228 x 228 x 52.3 mm ( 8.97 x 8.97 x 2.04 in) |
| Weight | 530 g (1.16 lb) |
| Certification | FCC, CE |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
Installation Guide
0.9mb
File
Compatibility Table for GV-AS Controllers
0.8mb
The GV-RU9003 is an ISO 18000-6C (EPC GEN2) standard Radio Frequency Identification (RFID) reader. Designed for use in car park management, the reader can read RFID tags from up to 10 metres (33 feet) away under optimal conditions.
