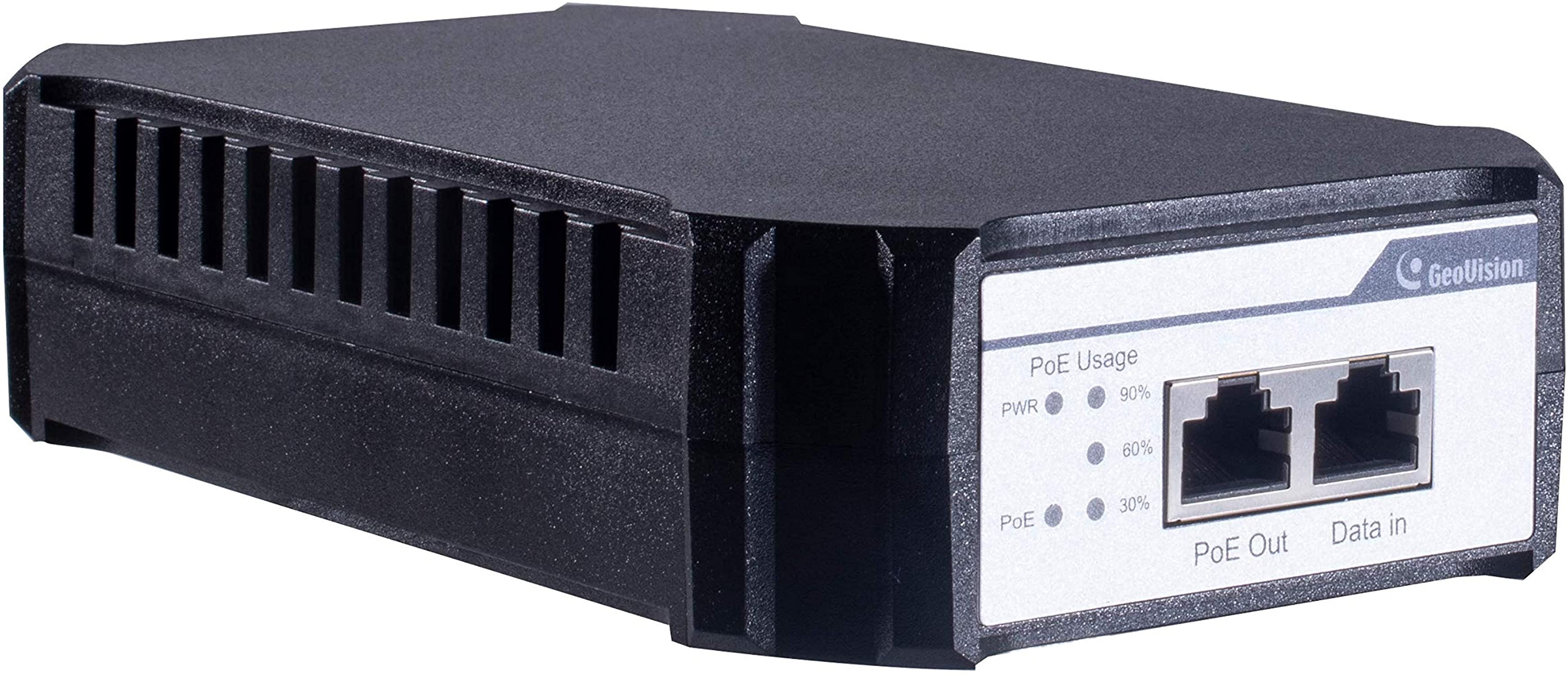

GV-PA902BT is a Gigabit PoE (Power over Ethernet) adapter. The adapter supports the IEEE802.3af/at/bt Power over Ethernet standard, with a maximum power output of 95 W over a single Ethernet cable. You can mount an IP camera anywhere in a building where power outlets are scarce by using the PoE adapter.
|
Port |
Data in port: 1 x 10/100/1000 Mbps RJ‐45 port PoE out port: 1 x 10/100/1000 Mbps RJ‐45 port |
|
|
Power Source |
High Power Over Ethernet (Max. 95 W) |
|
|
PoE Power Output |
DC 54V (Max. 95 W) |
|
|
Ethernet Cable Length |
Max 100 m (328 ft) from GV‐PA902BT to IP device, CAT5e, 6 |
|
|
Power Input |
AC 100V ~ 240V, 50/60Hz |
|
|
Operation Temperature |
Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F ) Storage Temperature: ‐40 °C ~ 70 °C (‐40 °F ~158°F ) |
|
|
Humidity |
Operating Humidity: 10% ~ 90% non‐condensing Storage Humidity: 5% ~ 90% non‐condensing |
|
|
Surge Protection |
±6 kV |
|
|
Dimensions (L x W x H) |
170 x 102 x 40 mm (6.69” x 4.01” x 1.57”) |
|
|
Weight |
0.95 kg (2.09 lb) |
|
|
Standard |
IEEE802.3af/at/bt |
|
|
Energy Efficiency Grade |
6 |
|
