Geovision - GV-PA903BT - Gigabit PoE BT Injector
Part number:
140-APA903B-G00
Price:

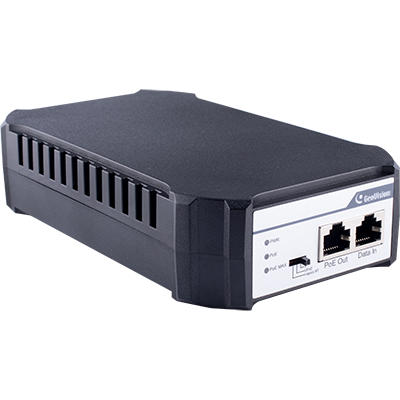

GV‐PA903BT is a Gigabit PoE (Power over Ethernet) adapter. The adapter supports the IEEE802.3af/at/bt Power over Ethernet standard, with a maximum power output of 95 W over a single Ethernet cable. You can mount an IP camera anywhere in a building where power outlets are scarce by using the PoE adapter.
| Port | Data in port: 1 x 10/100/1000 Mbps RJ-45 port PoE out port: 1 x 10/100/1000 Mbps RJ-45 port |
| Power Source | High Power Over Ethernet (Max. 95 W) |
| PoE Power Output | DC 54V (Max. 95 W) |
| Ethernet Cable Length | Max 100 m (328 ft) from GV-PA903BT to IP device, CAT5e, 6 |
| Power Input | AC 100V ~ 240V, 50/60 Hz |
| Operating Temperature | Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F ) Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F ) |
| Humidity | Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Surge Protection | ±4 kV |
| Dimensions (L x W x H) | 170 x 100 x 40 mm (6.69” x 3.94” x 1.57”) |
| Weight | 0.76 kg (1.68 lb) |
| Standard | IEEE802.3af/at/bt |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
Installation Guide
1mb
File
Adapter Comparison Chart
0.1mb
