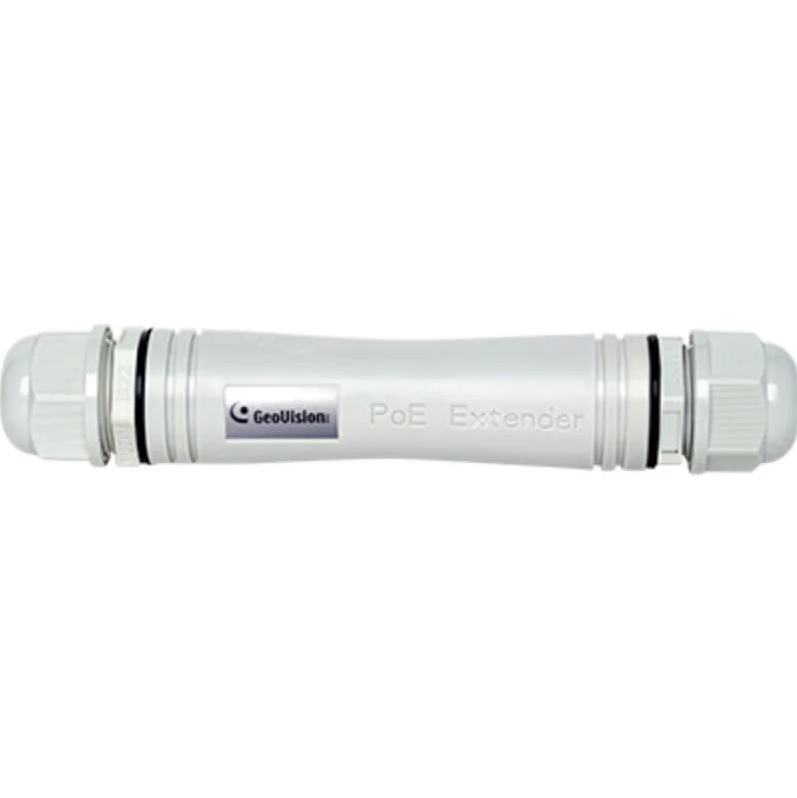

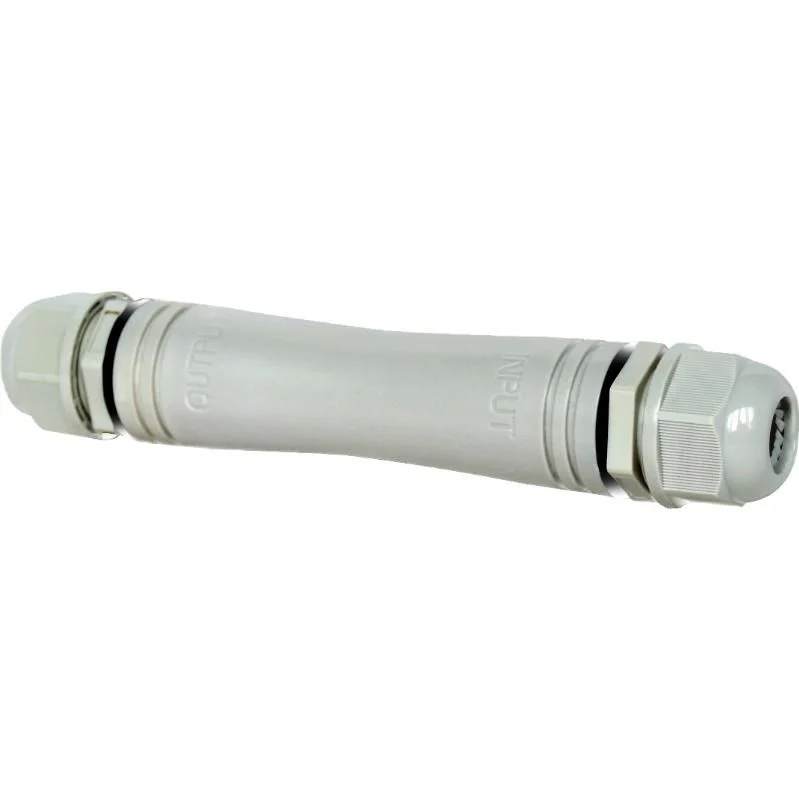

Geovision - 84-APOE111-0010 - GV-POEX0111 Gigabit Waterproof PoE Extender

Product Overview

The GV‑POEX0111 is a single‑port Gigabit waterproof PoE extender designed to extend both network data and power between a PoE switch and a compatible GV‑IP camera. It supports 10/100/1000 Mbps Ethernet, IEEE 802.3af PoE, and IEEE 802.3at PoE+, and can be used in series to reach long‑distance camera installations without requiring an additional power supply.

Key Configuration

• Device: Single-port Gigabit PoE extender for extending power and data over Ethernet cabling.
• Transmission: Supports distances up to 800 m (2,625 ft) using three GV-POEX0111 extenders with GV-APOE switches in CCTV mode.
• Connectivity: Features an RJ-45 network connector compatible with Cat 5e or higher Ethernet cables.
• Application: Ideal for long-distance IP surveillance and PoE network deployments.

Key Features

The extender delivers 10/100/1000 Mbps data rates for gigabit connectivity and complies with PoE IEEE 802.3af and PoE+ IEEE 802.3at standards. Its IP67‑rated waterproof housing is designed for outdoor installations, and the PoE-powered/pass‑through design eliminates the need for an additional power supply. It is compatible with GV‑IP Cameras for extended surveillance deployments.

Technical Context

Maximum transmission distance depends on the PoE switch type, cable quality, and the number of extenders used. When connected to GV‑APOE Series switches in CCTV mode, one extender supports up to 400 m, two extenders reach up to 600 m, and three extenders extend the link to 800 m between the switch and the IP camera.

Installation Notes

The extender is built for outdoor use and should be installed with Cat 5e or better cabling. Multiple GV‑POEX0111 units can be connected in series for longer cable runs, though the available power budget decreases as distance and the number of extenders increase.
