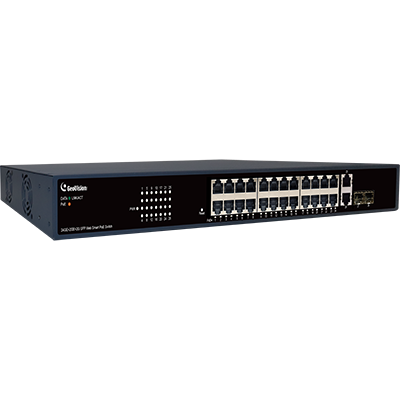

GeoVision - 84-APOE241-C01U - 24-port Gigabit 802.3at+ 2 RJ45 uplink port +2 SFP uplink port Easy Web Smart PoE Switch
• 24-Port 10/100/1000BaseT(X) PoE+ with 2-Port Gigabit RJ-45 Uplink and 2-Port SFP Uplink
• IEEE 802.3af/at compliant
• Easy web smart features
• Web-based Configuration and Management
• VLAN, QoS, DSCP, IGMP Snooping, Bandwidth Control, Storm Control
• PD Alive Monitor
• Support for ONVIF Detect
• PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
• Max. 250 W PoE Budget
• 19" Rack-mount
• Up to 24 GV-IP Cameras support
| Ethernet | |
|---|---|
| Layer Supported | Easy Web Smart |
| Ports | |
| Number of Ports | 24-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+ 2-port Gigabit RJ-45 Uplink 2-port SFP Uplink |
| Performance | |
| MAC Address | 8 K, Auto-Learning, Auto-Aging |
| Buffer Memory | 4.1 Mbits |
| Transmission Method | Store and Forward |
| Transmission Media | 10Base-T: UTP Cat 3 or 5 |
| 100Base-TX: UTP Cat 5 or 5e | |
| 1000Base-T: UTP Cat 5e or 6 1000Base-SX/LX: MMF, SMF | |
| Filtering/Forwarding Rates | 41.66 Mpps |
| Backplane Capacity | 56 Gbps |
| Smart Features | |
| VLAN | VLAN Basic, Config |
| Network | IPv4 Dual Stack, DHCP Client |
| IGMP Snooping | IGMP Snooping v1/v2 |
| Quality of Service (QoS) | QoS Queue Scheduling, Cos / DSCP |
| DHCP IP | DHCP Snooping |
| Loop Detection | Loopback Detection |
| ONVIF | ONVIF Detect |
| PoE Configuration | POE Global Configuration, POE Port Configuration, PD Alive Monitor |
| Diagnostics | Ping, Copper Test |
| Port Management | Basic config (Speed, Duplex, Flow Control), Statistics, Storm Control, Rate Limit, Port Mirror, EEE, Jumbo Frame |
| Administrator Management | Basic Info, System Status, User Management, Firmware Upgrade, System Reboot, Restore Factory |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Max Power per Port | 30 W |
| PoE Power Budget | 250 W |
| PoE Mode | Mode A |
| Mechanical | |
| LED Indicators | Per Port: Link/Act PoE Act/Status Power System |
| General | |
| Dimensions (H x W x D) | 44 x 440 × 207 mm (1.73" x 17.32" x 8.14") |
| Weight | 3.2 kg (7.05 lb) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Humidity | 10% to 90% RH (non-condensing) |
| Surge Protection | Differential Mode ±2 kV, Common Mode ±4 kV |
| Power Requirements | |
| Power Input | 100 ~ 240 V / AC, 50 ~ 60 Hz |
| Max Power Consumption | 280 W |
| Standards and Certifications | |
| Standards | IEEE 802.3i - 10BaseT |
| IEEE 802.3u - 100BaseTX | |
| IEEE 802.3ab - 1000BaseT | |
| IEEE 802.3z - 1000BaseSX/LX | |
| IEEE 802.3at - Power Over Ethernet Plus (PoE+) | |
| IEEE 802.3x - Full Duplex Ethernet Flow Control IEEE 802.1Q - VLAN IEEE 802.1p - Class of Service (CoS) | |
| Certifications | CE, FCC Class A, RoHS compliant, IEC 61000-4-5 Lv.5 |
The 84-APOE241-C01U is a web smart PoE+ switch featuring 24 10/100/1000BaseT(X) ports, as well as two Gigabit RJ-45 uplink ports and two SFP uplink ports. Supporting the IEEE 802.3at Power over Ethernet standard, the switch has a maximum PoE budget of 250 W and allows power supply over network cables of up to 250 m (820 ft) in length at 10 Mbps. Designed for medium or large network environments, the switch strengthens network connections and efficiency and provides exceptionally smart web management features, including VLAN, QoS, DSCP, IGMP snooping and more. GV-APOE241C can be installed in a 19” cabinet with a rack-mount kit or underneath a desk.
