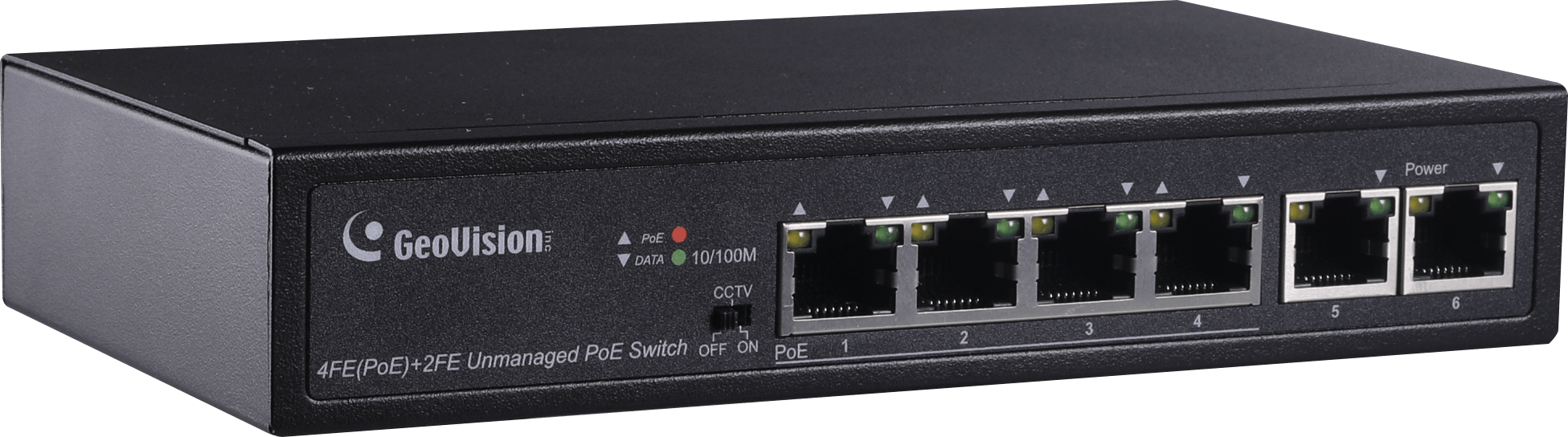

GV-APOE0400 is a 6-port 10/100 Mbps unmanaged PoE Switch with 4 PSE/PoE ports and 2 uplink ports. The switch supports IEEE 802.3at Power over Ethernet standard, with up to 32 W per port and a maximum power consumption of 65 W. In addition to not requiring special network cables for connecting your powered devices (PD), such as IP cameras, it also allows power supply over cables of up to 250 m (820 ft) in length, at 10 Mbps. The switch is designed for small network environment to strengthen its network connection and efficiency.
Features:
- PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
- 6-port 10/100 BaseTX, 4-port with Power over Ethernet
- IEEE 802.3at Compliant (4 Ports at Full 15.4 W / 2 Ports at Full 30 W)
- Max. 65 W power consumption
- 6" Metal Case of Palm Size
- Up to 4 GV-IP Camera support
Note:
- Specifications are subject to change without notice.
| Ethernet | |
| Layer Supported | L2 |
| Ports | |
| Number of Ports 6 x 10/100 RJ‐45 ports: |
|
| Performance | |
| MAC Address | 2 K |
| Buffer Memory | 768 K bits |
| Transmission Method | Store and Forward |
| Transmission Media |
|
| Packet Forwarding Rates | 0.89 Mpps |
| Backplane Capacity | 1.2 Gbps |
| Mechanical Characteristics | |
| LED Indicator |
|
| Electrical Characteristics | |
| PoE Power |
|
| PoE Mode | Mode A |
| Max. Power Consumption | 65 W |
| PoE Budget | 60 W |
| General | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 10 to 90% RH (non‐condensing) |
| Dimensions (L x W x H) | 32 x 168 x 94 mm (1.26" x 6.61" x 3.70") |
| Weight | 0.5 kg (1.10 lb) |
| Surge Protection | ±4 kV |
| Storage Temperature | ‐20°C ~ 90°C (‐4°F ~ 194°F) |
| Standards and Regulatory | |
| Standards |
|
| Regulatory | CE, FCC Class A, RoHS compliant |
