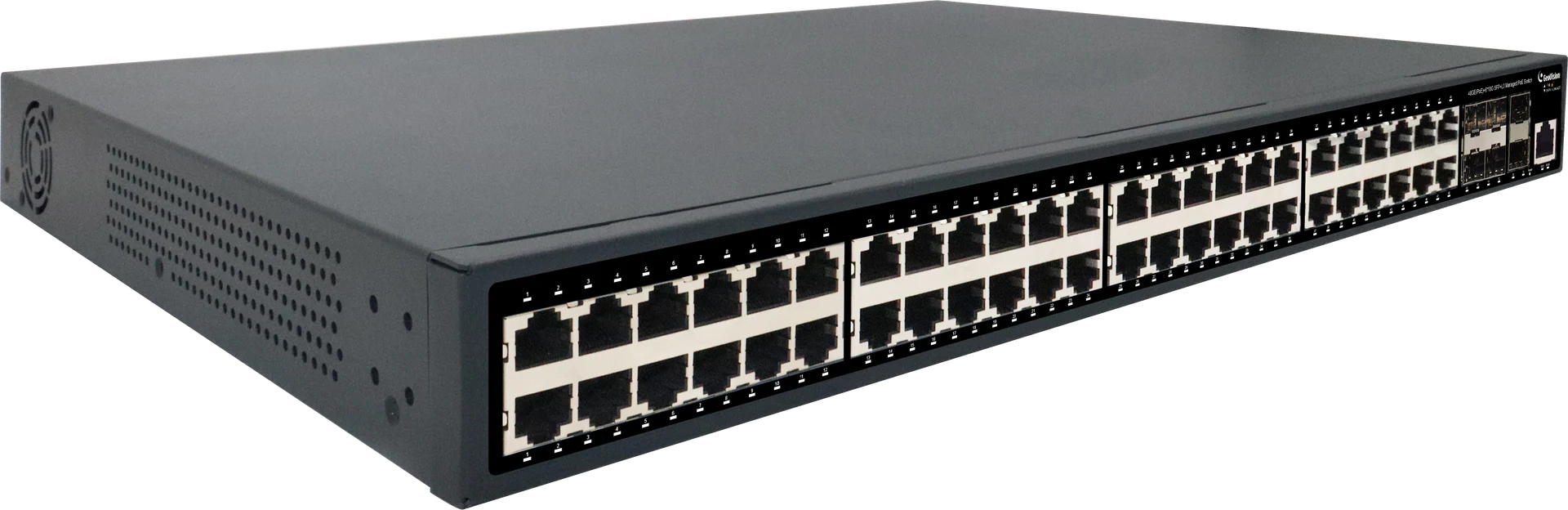

GeoVision - 84-APOE48W-301U - 48-Port Gigabit 802.3at + 6*10GE SFP+ Uplink Port, Web Management
• 48-Port 10/100/1000BaseT(X) PoE+ with 6 SFP+ Uplink Ports
• IEEE 802.3af/at compliant
• PoE Budget 500 W / AC 110 V & 600 W AC 220 V
• L3 Web-based configuration and management
• VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control
• PD Alive Monitor
• Support for ONVIF Discover
• PoE Schedule
• PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
• 19" Rack-mount
• Up to 48 GV-IP Cameras support
| Ethernet | |
|---|---|
| Layer Supported | L3 |
| Ports | |
| Number of Ports | 48-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+ 6-port 10 Gbps SFP+ Fiber-optic module expansion slots 1 Console port |
| Performance | |
| MAC Address | 32 K, Auto-Learning, Auto-Aging |
| Buffer Memory | 16 M bits |
| Jumbo Frames | 12 KB |
| Transmission Method | Store and Forward |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP |
| 100BaseTX Cat. 5 and over UTP | |
| 1000BaseFX Cat. MMF, SMF 1000BaseX Cat. MMF, SMF | |
| Filtering/Forwarding Rates | 160.71 Mpps |
| Backplane Capacity | 216 Gbps |
| PD Alive Monitor | Yes |
| CCTV | Yes |
| *When the CCTV function is enabled, PoE connection network cables can be extended up to 250 m (820 ft) at 10 Mbps transmission rate | |
| Smart Features | |
| VLAN | Management VLAN, Private VLAN, Voice VLAN, Surveillance-VLAN Q-in (Double Tag), 802.1v Protocol VLAN, MAC-Based VLAN |
| System Settings | Basic info, System Status, User Management, SNTP, Import/Export Config, Firmware Upgrade, System reboot/Restore Factory |
| Network | IPv4 / IPv6, DHCP Client / DHCPv6 Client |
| Port | IEEE 802.3ad witch LACP, Static Trunk, EEE, Jumbo Frame, Error-Disable |
| IGMP Snooping | IGMP Snooping V1/V2/V3, MLD Snooping V1/V2, IGMP Proxy, Fast Leave, MVR |
| Link Aggregation | Static, Load Balance, LAG, LACP, Max groups and ports per group |
| Mac Address Table | MAC Address Size, MAC Aging, MAC Filter, MAC Notification |
| Quality of Service (QoS) | QOS Apply: Port Based, 802.1p, CoS, DSCP, IP Precedence, TCP/UDP (IPv4/IPv6) QOS Scheduling: WRR, Strict Priority, DSCP & CS, IPv4 Qos (QCEs), IPv6 Qos (QCEs) |
| ARP | Static ARP, APR Prevention, IP Source Guard, Dynamic ARP Inspection |
| DHCP IP | DHCP Snooping, Option82, 43, 60, 61, 67 |
| STP | STP Root Guard, BPDU Guard, Loop Detection |
| SNMP | SNMP Community, SNMP View, SNMP Trap, SNMP (V1, V2C, V3) |
| RMON | RMON (1, 2, 3, 9) |
| ACL | L2+/L3/L4, IPv6 Support, Management Access List |
| AAA | TACACS+, Radius |
| Discovery | LLDP (802.1ab), LLDP-MED |
| ONVIF | ONVIF Detection, ONVIF Server (NLM) |
| PoE Configuration | PoE Port Configuration, PoE Delay, PD Alive Monitor, PoE Schedule |
| Diagnostics | IPv6 Ping, Traceroute, Cable Test, DDMI |
| Port Management | Basic config (speed, duplex, flow control), Statistics, Storm Control, Rate Limit, Port-Security, Port Mirror, Port Protected, EEE, Jumbo Frame |
| Administrator Management | Basic info, System Status, User Management, SNTP, Import/Export Config, Firmware Upgrade, System Reboot, Restore Factory |
| System Log | Logging Management, Debug |
| L3 Management | RIP, OSPF Support |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Max Power per Port | 30 W |
| PoE Power Budget | 500 W / AC 110 V & 600 W / AC 220 V |
| PoE Mode | Mode A |
| Mechanical | |
| LED Indicators | Per Port: Link/Act PoE Act/Status Power System |
| General | |
| Dimensions (H x W x D) | 44 x 440 x 330 mm (1.73" x 17.32" x 12.9") |
| Weight | 5.6 kg (12.3 lb) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Humidity | 10 ~ 90% RH (non-condensing) |
| Surge Protection | Differential Mode ±2 kV, Common Mode ±4 kV |
| Power Requirements | |
| Power Input | AC 100 ~ 240 V, 50 / 60 Hz |
| Max Power Consumption | 850 W |
| Standards and Certifications | |
| Standards | IEEE 802.3i - 10BaseT |
| IEEE 802.3u - 100BaseTX | |
| IEEE 802.3ab - 1000BaseT | |
| IEEE 802.3z - 1000BaseSX/LX | |
| IEEE 802.3af - Power Over Ethernet (PoE) | |
| IEEE 802.3at - Power Over Ethernet Plus (PoE+) IEEE 802.3x - Full Duplex Ethernet Flow Control IEEE 802.3ad - Link Aggregation Control Protocol (LACP) IEEE 802.3bz - 2.5 G Base-T and 5 G Base-T IEEE 802.3ae - 10 Gigabit Ethernet Over Fiber IEEE 802.1Q - VLAN IEEE 802.1p - Class of Service (CoS) IEEE 802.1D - Spanning Tree Protocol (STP) IEEE 802.1w - Rapid Spanning Tree Protocol (RSTP) IEEE 802.1X - Port-Based Network Access Control (PNAC), including Extensible Authentication Protocol - Transport Layer Security (EAP-TLS) | |
| Certifications | CE, FCC Class A, UKCA, RoHS compliant, IEC 61000-4-5 Lv.5 |
The GV-APOE4813 is a 48-port, 10/100/1000Base-T(X) PoE+ web smart PoE switch with six SFP+ uplink ports. It supports the IEEE 802.3af/at power over Ethernet standard. Not only does it eliminate the need for power cables to connect your powered devices (PDs), such as IP cameras, it also allows power supply over cables up to 250 metres (820 feet) in length at 10 Mbps. Perfect for strengthening network connection and efficiency in medium or large network environments, the switch provides exceptionally smart web management features, including VLAN, QoS, RSTP, IGMP snooping, LACP and port security, among others. In addition, the GV-APOE4813 can be installed in a 19-inch cabinet with a rack-mount kit or underneath a desk.
