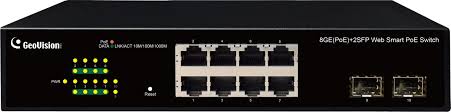

GeoVision - 84-APOE81C-001U - 8-port Gigabit 802.3at+ 2 Gigabit SFP uplink port, Easy Web Smart PoE Switch, US
• 8-Port Configuration: 8-Port 10/100/1000BaseT(X) PoE+ with 2 SFP Uplink Ports, providing versatile connectivity options.
• Power over Ethernet Compliance: IEEE 802.3at compliant (8 Ports at Full 15 W / 4 Ports at Full 30 W), ensuring reliable power delivery to all connected devices.
• Web Management: Easy web smart features enable straightforward configuration and monitoring of network performance.
• Extensive Management Options: Supports VLAN, QoS, DSCP, IGMP Snooping, Bandwidth Control, and Storm Control for advanced control and optimization.
• PD Alive Monitor: Ensures that powered devices are functioning correctly, enhancing reliability.
• ONVIF Support: Compatible with ONVIF Discover, streamlining IP camera integration and management.
• Extended Cable Support: PoE connection for network cables up to 250 m (820 ft) at a 10 Mbps transfer rate, extending the flexibility of installation.
• Max. Power Consumption: Max. 130 W Power Consumption ensures adequate power for all connected devices.
• Rack-Mountable: 19" Rack-mount option provides flexibility for cabinet installation, saving space.
• Camera Support: Capable of supporting up to 8 GV-IP cameras for comprehensive surveillance solutions.
| Ethernet | |
|---|---|
| Layer Supported | Easy Web Smart |
| Ports | |
| Number of Ports | 8-port 10/100/1000BaseT(X) with RJ-45 Connectors, PoE+ 2-port SFP Uplink Port |
| Performance | |
| MAC Address | 8 K, Auto-Learning, Auto-Aging |
| Buffer Memory | 4.1 M bits |
| Transmission Method | Store and Forward |
| Transmission Media | 10/100BaseT(X) Cat. 5 UTP/STP 1000BaseT Cat. 5e, 6 UTP/STP |
| Filtering/Forwarding Rates | 14.88 Mpps |
| Backplane Capacity | 20 Gbps |
| Smart Features | |
| VLAN | VLAN Basic, Config |
| Network | IPv4 Dual Stack, DHCP Client |
| IGMP Snooping | IGMP Snooping v1/v2 |
| Quality of Service (QoS) | QoS Queue Scheduling, Cos / DSCP |
| DHCP IP | DHCP Snooping |
| Loop Detection | Loopback Detection |
| ONVIF | ONVIF Detect |
| PoE Configuration | PoE Global Configuration, PoE Port Configuration, PD Alive Monitor |
| Diagnostics | Ping, Copper Test |
| Port Management | Basic Config (Speed, Duplex, Flow Control), Statistics, Storm Control, Rate Limit, Port Mirror, EEE, Jumbo Frame |
| Administrator Management | Basic info, System Status, User Management, Firmware Upgrade, System Reboot, Restore Factory |
| Mechanical Characteristics | |
| LED Indicators | Per Port: Link/Act PoE Act/Status Power System |
| PoE Power | |
| Input | 100 ~ 240 V / AC, 50 ~ 60 Hz |
| Output | IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts (8 Ports at Full 15 W / 4 Ports at Full 30 W) |
| PoE Mode | Mode A |
| Max. Power Consumption | 130 W (443 BTU) |
| PoE Budget | 120 W (409 BTU) |
| General | |
| Dimensions (H x W x D) | 220 x 150 x 44 mm (8.66" x 5.9" x 1.73") |
| Weight | 1.23 kg (3.35 lb) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Humidity | 10% to 90% RH (non-condensing) |
| Surge Protection | ±4 kV |
| Standards and Certification | |
| Standards | IEEE 802.3 10BaseT |
| IEEE 802.3u 100BaseTX | |
| IEEE 802.ab 1000BaseT | |
| IEEE 802.3z 1000BaseSX/LX | |
| IEEE 802.3x Full-duplex and Flow Control IEEE 802.1Q VLAN IEEE 802.1p Class of Service IEEE 802.3at Power Over Ethernet (PoE+) | |
| Certification | CE, FCC Class A, RoHS compliant |
The GV-APOE081C is an 8-port 10/100/1000BaseT(X) PoE+ easy web smart PoE switch with two SFP uplink ports. Supporting the IEEE 802.3at Power over Ethernet standard, the switch has a maximum power consumption of 130 W and allows power supply over network cables of up to 250 m (820 ft) in length at 10 Mbps. Designed for small network environments, the switch strengthens network connections and efficiency and provides streamlined smart web management features, including VLAN, QoS, DSCP, IGMP snooping and more. Additionally, the GV-APOE081C can be installed in a 19" cabinet using a rack-mount kit or placed under a desk.
