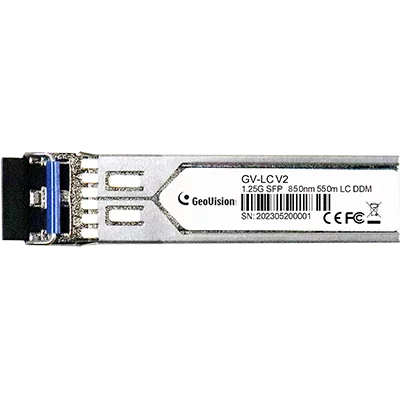

GeoVision - 84-APOELC1-0010 - GV-LC10 V2 SFP Transceiver
Part number:
Price:
The SFP transceiver is designed to plug into the SFP port of the GV-POE switch, providing the interface between the switch and the optical fibre cables. This product complies with the IEEE 802.3z 1000BaseSX/LX standard. The SFP transceiver is hot-swappable; you can add or remove it without powering down.
| Model | GV-LC10 V2 |
| Network Standard | IEEE 802.3z 1000BaseLX |
| Wavelength | 1310 |
| Media | SMF |
| Distance | 9 um, 20 km (65616 ft) |
| TX Power (dBm) | -9 ~ -3 |
| RX Sensitivity (dBm) | Max. -23 |
| Connector Type | LC |
| Operating Temperature | 0 °C ~ 70 °C (32 °F ~ 158 °F) |
| Regulatory | CE / FCC / RoHS compliant |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Installation Guide
1.2mb
