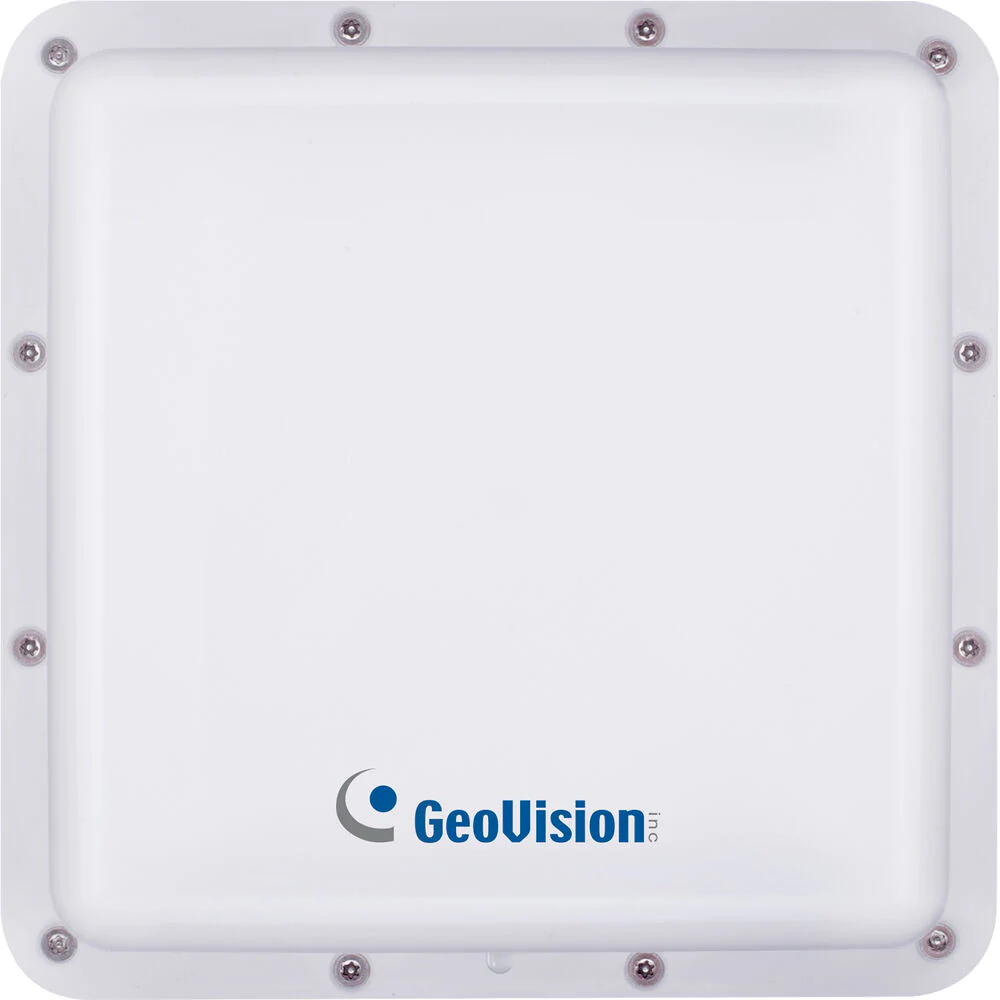

GeoVision - 84-AS15200-A01U - GV-AS1520 V1.00 A Type
Part number:
510-AS152-000
Price:
GV-AS1520, this High Precision UHF RFID Controller includes integrate with GV-Access control platform (GV-ASManager) to exciting features from Proximity Reader for Vehicle Management. create complete security solution without hassle.
Features:
- Anti-Passback (APB) support
- Ideal sensing range within 10 m (32.8ft)
- Support for external sensors
- Special energy-saving design reducing power consumption
- Effective identification with specially designed antenna pattern
- Built-in antenna and RF module
- Vehicle counting and parking share space
- Area Monitor & track suspicious activity
- DC 12V/ PoE+ (IEEE 802.3at)
| CPU | ARM-based 32bit RISC |
| Number of User Cards | 100,000 cards |
| Antenna Gain | 7.71 dBi (circular polarization) |
| Antenna Receiving | 50 ohm U.FL. |
| Operating Frequency | AS1520 TW 922-928MHz, AS1520 US 902-928MHz AS1520 EU 865-868MHz |
| Supported Transponders | EPC Gen2 (ISO 18000-6C) |
| Receiving sensitivity | -85 dBm |
| Reading Range (Avg.) | 10 m (32.8ft) max |
| Operating Voltage | 12V DC, 1.25A / POE+ (IEEE 802.3at, provides up to 25.5 W) |
| Communication | TCP/IP |
| Temperature Range | -20°C ~ 55°C (-7.6°F ~ 131°F) |
| Relative Humidity | 10 ~ 90% RH (non - condensing) |
| Dimension ( L × W × H ) | 228 × 228 × 52.3 mm (8.97 × 8.97 × 2.04 in) |
| Ingress Protection | IP56 |
Name
Description
Size
Downloads
File
Datasheet
1.5mb
