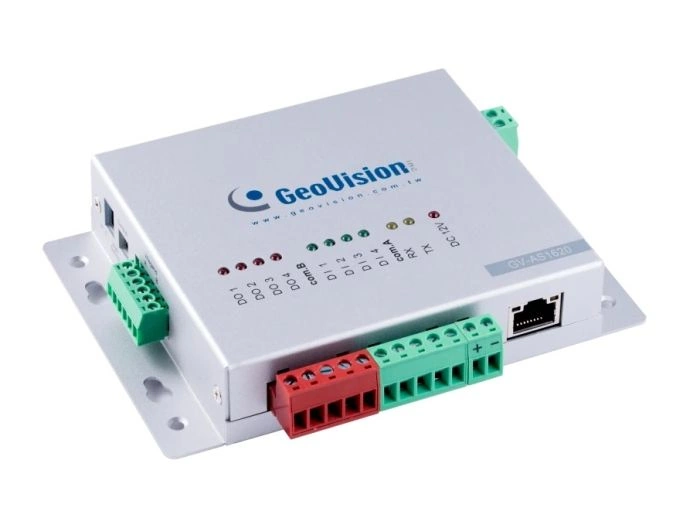

GeoVision - 84-AS16200-0100 - GV-AS1620 V1.00 1 Door Control Panel
• One door IP controller (entry and exit)
• 3 types of interfaces, Wiegand, RS‐485 and TCP/IP, supporting 2 readers for each interface.
• 4 digital inputs for door contact, exit button, fire contact and tamper contact
• 4 relay outputs for lock, alarm, 2 LED for an access granted and access denied
• DC 12V, 3A / PoE+ (IEEE 802.3at)
• Suitable for door, parking lot and elevator controls
• Stores up to 100,000 cards
| System | |
|---|---|
| GV-ASManager Version | V5.2.0 or later |
| Hardware | |
| Wiegand Interface | 2 Wiegand interfaces, 26 ~ 64-bit format 12V DC power supply, 200 mA |
| RS-485 Interface | 1 RS-485 interface for max. 2 GV-Readers (GV-CR420 / GV-DFR1352 / GV-SR1251 / GV-Reader1251 / GV-R1352 / GV-RK1352 / GV-WTR) |
| TCP/IP Interface | RJ-45, 10 / 100 Mbps 1 TCP/IP interface for max. 2 GV-Readers (GV-CR420 / GV-FR2020 / GV-CR1320 / GV-GF1921 / GV-GF1922; GV-FWC with GV-FD8700-FR / GV-VD8700) |
| Digital I/O | Input: 4 inputs, Dry Contact, NO / NC |
| Output: 4 relay outputs (DC 30V, 3A; 110V AC ~ 250V AC, 3A), NO / NC | |
| Power | 12V DC, 3A / PoE+ (IEEE 802.3at, provides up to 25.5W) |
| Operating Temperature | 0°C ~ 65°C / 32°F ~ 149°F |
| Operating Humidity | 5% ~ 95% RH (Non-Condensing) |
| Dimensions | 111.4 x 27.5 x 101 mm / 4.39 x 1.08 x 3.98 in (case included) |
| Weight | 235 g / 0.52 lb (case included) |
| Ingress Protection | IP54 |
| Regulatory | CE, FCC, RoHS compliant |
The 84-AS16200-0100 is a single door controller with three interface types (Wiegand, RS-485 and TCP/IP) to accommodate various entry and exit readers. Through its I/O pins, it not only provides basic door operations, but also supports alarm, tamper and fire sensor applications. It also allows connected LEDs to indicate whether access has been granted or denied.
