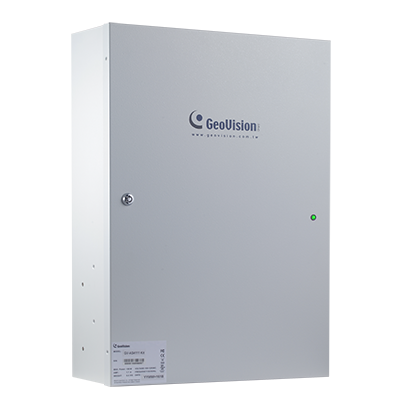

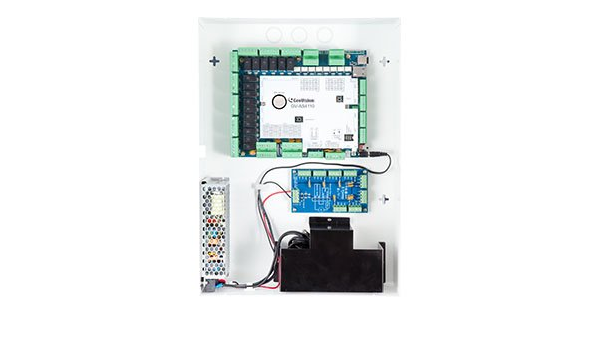

The GV-AS4111 Kit is a cabinet that includes a GV-AS4111, a power adapter board, a power supply, and a backup battery case. The power supply powers the GV-AS4111 Kit as well as up to 8 output devices (12V, 0.5A per device).
Features:
- One-way control: 4 doors
- Two-way control: 4 doors by Wiegand, RS-485 and Network
- 8 Wiegand card readers of 26 to 64 bits
- 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
- Built-in 16 inputs and 24 relay outputs
- Suitable for controlling doors, parking gates and elevator call buttons
- Tampering alarm
- UL 294 compliance
Note:
- UL 294 Attack Class Level 1 depends on other connected equipment.
- Specifications are subject to change without notice.
| System Requirements | ||
| GV‐ASManager Version | GV‐ASManager V4.2.3 or later | |
| Software | ||
| One‐Way Control | 4 doors | |
| Two‐Way Control | 4 doors | |
| Hardware | ||
| CPU | 32‐bit ARM7TDMI | |
| Number of User Cards | 100,000 cards | |
| Event Buffer | 1,000,000 events and log data | |
| Power | 100 ~ 120V AC, 50 ~ 60 Hz, 1.7A | |
| RS‐485 Interface | 1 RS‐485 interface only for GV‐Readers and GV‐GF Fingerprint Readers (max. 8 Readers) Distance 600 m (1968.50 ft), 24 AWG, 13V DC min., 85 °C min. | |
| Wiegand Interface | 8 Wiegand interfaces, 26 ~ 64 bit format, distance 100 m (328.1ft), 24 AWG, 13V DC min., 85 °C min. | |
| TCP/IP Interface | 1 TCP/IP interface for GeoVision network readers | |
| Communication | TCP/IP | |
| Battery | Built‐in battery, replaceable button cell (CR2032) | |
| Input | 16 inputs, dry contact, NO/NC | |
| Output | 1~16 relay output / 30V DC, 3A 17~24 relay output / 30V DC, 1A | |
| Operating Temperature | 0 ~ 65 °C / 32 ~ 149 °F | |
| Operating Humidity | 10% ~ 90% RH (non‐condensing) | |
| Dimension (W x H x D) | 420 x 300 x 110 mm / 16.5 x 11.8 x 4.33 in | |
| Weight | 4.4 kg / 9.68 lb | |
| Certification | UL 294, CE, FCC, RoHS | |
| Power Adaptor Board | ||
| Output | DC Voltage Range | 12V |
| Rated Current | 0.5A | |
| Rated Power | 6W | |
| Number of connectors | Input | 2 |
| Output | 8 | |
| Wire Size (AWG) | 12 ‐ 22 | |
| Power Supply | ||
| Output | DC Voltage Range | 11V ~ 13V (Nominal 12V) |
| Rated Current | 13A | |
| Rated Power | 150 W | |
| Input | US Standard (UL) | 110 ~ 120V, 50 Hz / 60 Hz, 1.7 A |
| EU Standard | 200 ~ 240V, 50 Hz / 60 Hz | |
