• 4-door and 8-reader cloud-based access control
• Up to 8 readers, either from a single GV-AS Controller or from up to 8 GV-DFK1355 readers
• Access logs and event images are uploaded onto GV-Cloud Access Control
• Live view display of connected IP cameras on GV-Cloud Access Control
• Stores up to 100,000 cards
| Network | |
|---|---|
| Interface | 10/100 Ethernet |
| Protocol | DHCP, DNS, HTTP, ICMP, IPv4, NTP, TCP/IP, UDP |
| Mechanical | |
| Connectors | Power: 2-pin terminal block, PoE |
| Ethernet: Ethernet (10/100 Base-T), RJ-45 Cable | |
| USB: USB 3.0 | |
| RS-485: RS-485 +/- LED Indicator: 2 LEDs: Power, Status | |
| General | |
| Environment Temperature | Start-up: 0°C ~ 60°C (32°F ~ 140°F) |
| Operation: 0°C ~ 60°C (32°F ~ 140°F) | |
| Humidity | 10% to 90% (no condensation) |
| Power Source | 12V DC, 1.25A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 7 W |
| Dimensions | 77 x 22 x 70 mm (3.06" x 0.86" x 2.75") |
| Weight | 173 g (0.38 lb) |
| Certification | CE, FCC, LVD, RoHS compliant |
| Power over Ethernet | |
| PoE Standard | PoE (IEEE 802.3af) |
| PoE Power Supply Type | End-Span and Mid-Span |
| PoE Power Output | Per Port 48V DC, 320mA, Max. 15.4 watts |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through GV-IP Device Utility |
| Feature Max. unit supported | GV-AS Controller: 1 |
| GV-DFK1355 reader: 8 | |
| GV-Cloud Bridge encoder (firmware V1.03 or later): 2 | |
| IP cameras: 4 | |
| Language | English |
| Application | |
| Software Supported | GV-Cloud Access Control GV-Cloud VMS |

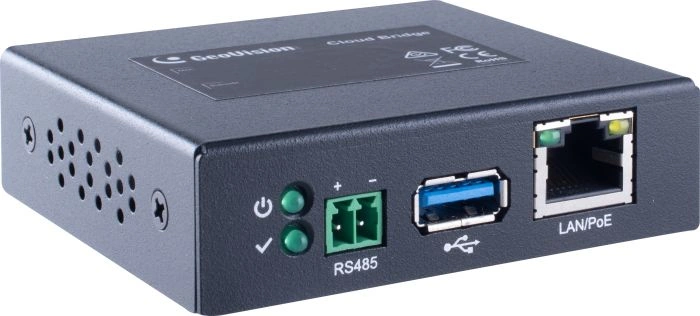

The GV-AS Bridge is an access controller that connects up to eight readers - either from a single GV-AS Controller or up to eight GV-DFK1355 readers - to the GV-Cloud Access Control system for cloud-based monitoring and management. This enables cloud-based access control for up to four doors and eight readers. When connected to IP cameras directly or via the GV-Cloud Bridge encoder, the GV-AS Bridge can transmit snapshots, live views, or playback recordings (GV-Cloud Bridge required) to GV-Cloud Access Control in response to access events.
