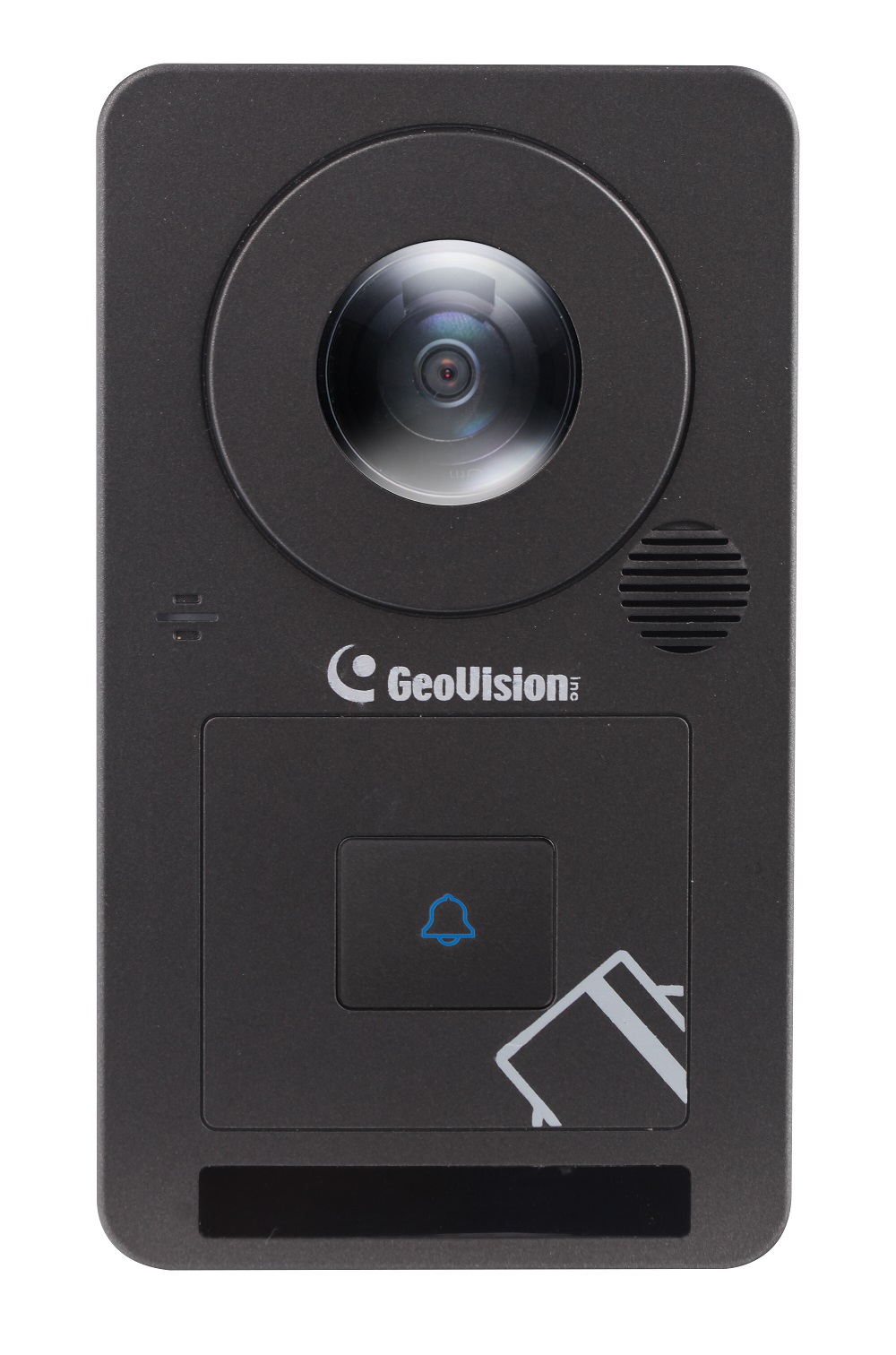

GV-CS1320 is an access controller with a built-in 2 MP camera and 13.56 MHz reader. GV-CS1320 recognizes access control cards and grants access to up to 100,000 users accordingly. Its camera captures the live view of entrance and transmits it to the access control system GV-ASManager over a network, without the need of installing and maintaining a separate camera in addition to the camera access controller.
Three types of notifications are available for the operator to communicate with visitors at the door installed with GV-CS1320 and grant access: SIP/VoIP Calling, GV-ASNotify PC program and GV-Access mobile app.
For VoIP Calls, when its touchpad is activated, GV-CS1320 will place a call to the operator through VoIP. The operator can then communicate with the visitor and enter an access code to open the door. Additionally, GV-CS1320 supports the Card and Face mode to perform face detection together with card verification before access can be granted.
Features:
- 2MP progressive scan super low lux CMOS
- Minimum illumination at 0.02 lux
- Dual streams from H.264 and MJPEG
- Up to 15 fps at 1920 x 1080
- Day and night function (with removable IR-cut filter)
- Built-in IR with effective distance up to 3 m (10 ft)
- Ingress protection (IP66)
- DC 12V, 2.5A / PoE+ (IEEE 802.3at)
- Built-in microphone and speaker
- Wide Dynamic Range (WDR)
- Built-in micro SD card slot
- Provides 180° panorama view
- ONVIF (Profile S) conformant
- Built-in 13.56 MHz Reader (Mifare DESFire, MIFARE Plus and MIFARE Classic)
- GeoVision access cards with GID (GeoVision Identifier) to enhance security
- Access by card plus face detection
- Up to 2 readers of RS-485, OSDP and network communication
- 1 door (one-way or two-way control)
- 2 inputs, dry contact (Door Sensor / Exit Button)
- 1 relay output (Electric Lock)
- Support for GV-I/O Box 4 Ports for door / fire / temper sensor, door button and doorbell applications
- Touchpad to activate two-way communication between the operator and visitors
- Snapshots captured upon card presented and touchpad activated
- SIP / VoIP calling support
- Anti-Passback (APB) support
- Different access control modes enabled according to the Authentication Schedule: Card only mode (default), Card and Face Mode
- GV-Access app for push notifications
Note:
- To support face detection function, avoid placing the camera reader where the light source is directly behind the subject.
- GV-CS1320 supports either RS-485 or OSDP communication, but not both at the same time.
- RS-485 and network communications only support GeoVision readers, while OSDP is compatible with third-party readers.
- All specifications are subject to change without notice.
| Camera | |||
| Image Sensor | 1/2.8" progressive scan super low lux CMOS | ||
| Picture Elements | 1920 (H) x 1080 (V) | ||
Minimum Illumination | B/W | 0.02 Lux | |
| Shutter Speed | Automatic, Manual (1/5 ~ 1/8000 sec) | ||
| White Balance | Automatic, Manual (2800K ~ 8500K) | ||
| S/N Ratio | 52 db | ||
| Lens | |||
| Megapixel | Yes | ||
| Day / Night function | Yes (with removable IR‐cut filter) | ||
| Lens Type | Fixed | ||
| Focal Length | 1.7 mm | ||
| Maximum Aperture | F/2.5 | ||
| Mount | M12 | ||
| Image Format | 1/2.8" | ||
| Horizontal FOV | 180° | ||
| IR LED Quantity | 2 | ||
| Max. IR Distance | 3 m (9.84 ft.) | ||
| Operation | |||
| Video Compression | H.264, MJPEG | ||
| Video Streaming | Dual streams from H.264 and MJPEG | ||
| Video Resolution | Stream 1 | 1920 x 1080 (16:9) | |
| Stream 2 | 640 x 360 (16:9) | ||
| Frame Rate | 15 fps at 1920 x 1080 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). | ||
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Orientation, Shutter Speed | ||
| Audio Compression | G.711 | ||
| Network | |||
| Interface | 10/100 Ethernet | ||
| Protocol | DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, PSIA, QoS (DSCP), RTSP, SIP, SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA | ||
| Mechanical | |||
| Local Storage | Micro SD card | ||
| Connectors | Power | 2‐pin terminal block | |
| Ethernet | Ethernet (10/100 Base‐T), RJ‐45 Connector | ||
| Audio | Built‐in microphone and speaker | ||
| RS‐485 | RS‐485 +, RS‐485 ‐ | ||
| General | |||
| Operating Temperature | ‐10 ~ 50 °C (14 ~ 122 °F) | ||
| Humidity | 10% to 90% (no condensation) | ||
| Power Source | 12V DC, 2.5A / PoE+ (IEEE 802.3at) | ||
| Maximum Power Consumption | 25.5 W | ||
| Regulatory | CE, FCC, RCM, RoHS compliant | ||
| Dimensions | 137 x 80 x 34.5 mm (5.4 x 3.15 x 1.36 in) | ||
| Weight | 315 g (0.69 lb) | ||
| Ingress Protection | IP66 | ||
| Web Interface | |||
| Installation Management | Web‐based configuration | ||
| Maintenance | Firmware upgrade through Web Browser or GV‐IP Device Utility | ||
| Access from Web Browser | Camera live view, change video quality, bandwidth control, image snapshot, audio, picture in picture, picture and picture | ||
| Language | English / French / Portuguese / Russian / Spanish / Traditional Chinese | ||
| Applications | |||
| Mobile Phone support | embedded 3GPP/ISMA browser | ||
| Live Viewing | Web browser (IE, Edge, Chrome, Firefox) | ||
| Access Control / LPR Management | GV‐ASManager | ||
| Reader | |||
| CPU | 32‐bit RISC microprocessor | ||
| Frequency | 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic) | ||
| RS‐485 Interface | 1 RS‐485 interface for GV‐WTR | ||
| TCP/IP Interface | 1 TCP/IP interface for GV‐AS controller | ||
| Communication Protocol | TCP/IP | ||
| Digital I/O | 2 inputs, dry contact NO/NC | ||
| 1 relay output (30V DC, 0.5A) | |||
| ID Formats | GID and UID | ||
