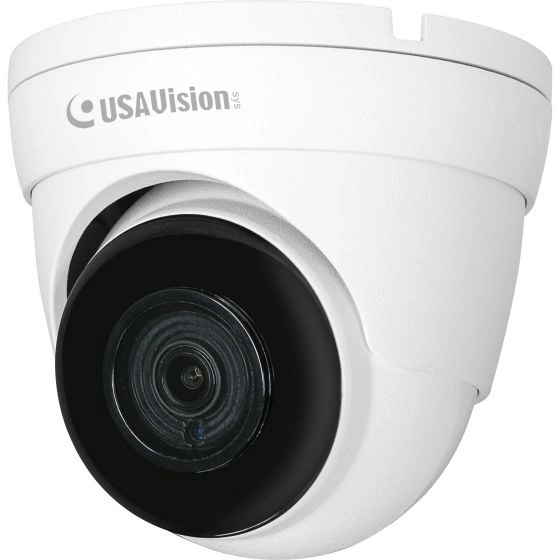

GeoVision - 84-CR200F2-UA00 - 2 MP Super Low Lux WDR IR Eyeball Dome Camera
• 1/3” progressive scan CMOS sensor
• IR distance up to 20 m (65 ft)
• Built‐in microphone
• Ingress protection (IP66)
• 4 in 1 (TVI / AHD / CVI / CVBS)
| Video | |
|---|---|
| Imaging Device | 1/3" |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color: 0.05 Lux @ F1.2 (AGC ON) |
| B/W: 0 Lux | |
| IR ON: 0 Lux | |
| Video Output | TVI/AHD/CVI/CVBS |
| Lens Type | |
| Lens Type | Fixed |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Maximum Aperture | F/2.2 |
| Mount | M12 |
| Field of View | Horizontal: 88.24°, Vertical: 48.71°, Diagonal: 104.37° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| Resolution | 2MP:1920 (H) x 1080 (V) |
| Max. Frame Rate | AHD / CVI / TVI: 2 MP, PAL@25fps, NTSC@30fps CVBS: 960H |
| IR LED Quantity | 18 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| Day/Night Mode | Color / B&W / EXT |
| Backlight Compensation | Off / User BLC |
| Digital Noise Reduction | 2D DNR |
| Gain Control | Auto |
| White Balance | ATW |
| Flip/Mirror | Flip/Rotate/Mirror |
| Image Setting | Exposure Mode, AGC, Day&Night Mode, Image Mode, AWB, Bright, Contrast, Saturation, Sharpness, NR (2D Noise Reduction), Flip, Mirror, Rotate, DWDR, Reset |
| Language | English / Spanish / French / Japanese |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° |
| Tilt: 0° ~ 80° | |
| Rotate: 0° ~ 360° | |
| Connectors | Power: DC jack |
| Video Output: 1 channel BNC Audio: 1 in (built‐in microphone) * The built-in microphone is only activated in TVI video output. | |
| General | |
| Operating Conditions | -30 ~ 55°C (‐22°F ~ 131°F)/less than ≤ 95% RH |
| Storage Conditions | -30 ~ 60°C (‐22°F ~ 140°F)/less than ≤ 95% RH |
| Power Source | 12V DC, 1A |
| Power Consumption | IR OFF ≤ 0.5W, IR ON ≤ 3.5W |
| Color/Material | Metal |
| Dimension (L × W × H) | Ø 100 x 90 mm (Ø 3.9” x 3.5”) |
| Weight | 410 g (0.90lb) |
| Ingress Protection | IP66 |
| Regulatory | FCC, RoHS compliant |
The GeoVision 84-CR200F2-UA00 is a versatile 2MP analog HD eyeball dome camera featuring a 1/3" progressive CMOS sensor delivering 1920x1080 resolution. Equipped with a 2.8mm fixed lens providing an 88.24° horizontal FOV at F2.2 aperture, it captures wide-area coverage ideal for indoor and outdoor surveillance. With 0.05 lux color minimum illumination and 18 IR LEDs providing 20m night vision, it delivers clear imaging in low-light conditions. The camera supports multiple video outputs including TVI, AHD, CVI, and CVBS, offering flexibility for hybrid analog/HD systems. Housed in an IP66-rated metal casing with 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 55°C. Key features include built-in microphone (activated in TVI mode), 2D DNR, DWDR, and comprehensive image settings including exposure, AGC, white balance, and flip/mirror/rotate adjustments. With low power consumption (0.5W IR off, 3.5W IR on) and straightforward DC 12V power, it provides an economical solution for analog HD surveillance deployments requiring reliable performance in a compact eyeball dome form factor.
