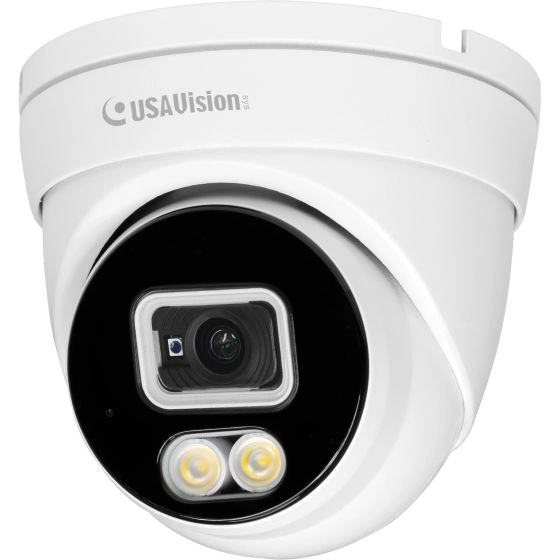

GeoVision - 84-CR250F2-UA00 - 2 MP Super Low Lux WDR Full Color IR Eyeball Dome Camera
• 1/3” progressive scan CMOS sensor
• Full Color smart warm LED
• IR distance up to 30 m (100 ft)
• Built‐in microphone
• Ingress protection (IP66)
• 4 in 1 (TVI / AHD / CVI / CVBS)
| Video | |
|---|---|
| Imaging Device | 1/3" |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color: 0.05 Lux @ F1.2 (AGC ON) |
| B/W: 0 Lux | |
| IR ON: 0 Lux | |
| Video Output | TVI/AHD/CVI/CVBS |
| Lens Type | |
| Lens Type | Fixed |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Maximum Aperture | F/1.0 |
| Mount | M12 |
| Field of View | Horizontal: 95°, Vertical: 50.9°, Diagonal:112.1° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| Operational | |
| Resolution | 2 MP: 1920 (H) x 1080 (V) |
| Max. Frame Rate | AHD / CVI / TVI: 2 MP, PAL@25fps, NTSC@30fps CVBS: 960H |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 30 m (100 ft) |
| Warm LED Quantity | 2 warm LEDs |
| Max. Warm LED Light Distance | 20m (65ft) |
| Day/Night Mode | Color / B&W / EXT |
| Backlight Compensation | Off / User BLC |
| Digital Noise Reduction | 2D DNR |
| Gain Control | Auto |
| White Balance | ATW |
| Flip/Mirror | Flip/Rotate/Mirror |
| Image Setting | Exposure Mode, AGC, Day&Night Mode, Image Mode, AWB, Bright, Contrast, Saturation, Sharpness, NR (2D Noise Reduction), Flip, Mirror, Rotate, DWDR, Reset |
| Language | English / Spanish / French / Japanese |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° |
| Tilt: 0° ~ 80° | |
| Rotate: 0° ~ 360° | |
| Connectors | Power: DC jack |
| Video Output: 1 channel BNC Audio: 1 in (built‐in microphone) * The built-in microphone is only activated in TVI video output. | |
| General | |
| Operating Conditions | -30 ~ 55°C (‐22°F ~ 131°F)/less than ≤ 95% RH |
| Storage Conditions | -30 ~ 60°C (‐22°F ~ 140°F)/less than ≤ 95% RH |
| Power Source | 12V DC, 1A |
| Power Consumption | IR OFF ≤ 0.5W, IR ON ≤ 3.5W |
| Color/Material | Metal |
| Dimension (L × W × H) | Ø 100 x 90 mm (Ø 3.9” x 3.5”) |
| Weight | 410 g (0.90 lb) |
| Ingress Protection | IP66 |
| Regulatory | FCC, RoHS compliant |
The GeoVision 84-CR200F5-UA00 is a high-performance 2MP analog HD eyeball dome camera featuring a 1/3" progressive CMOS sensor delivering 1920x1080 resolution, distinguished by its exceptional F1.0 ultra-fast aperture for superior low-light sensitivity. Equipped with a 2.8mm fixed lens providing a wide 95° horizontal FOV, it captures expansive coverage ideal for demanding surveillance applications. With 0.05 lux color minimum illumination and dual illuminators - 2 IR LEDs providing 30m night vision and 2 warm LEDs providing 20m full-color night vision - it delivers flexible low-light imaging options. The camera supports multiple video outputs including TVI, AHD, CVI, and CVBS, offering versatility for hybrid analog/HD systems. Housed in an IP66-rated metal casing with 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 55°C. Key features include built-in microphone (activated in TVI mode), 2D DNR, DWDR, and comprehensive image settings. With low power consumption (0.5W IR off, 3.5W IR on) and DC 12V power, it provides an economical yet high-performance solution for analog HD surveillance deployments requiring exceptional low-light sensitivity and full-color night vision capabilities in a compact eyeball dome form factor.
