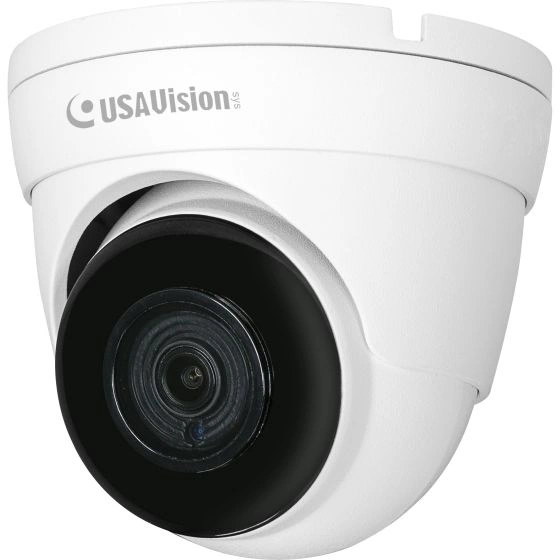

GeoVision - 84-CR510F2-UA00 - 5 MP Super Low Lux IR Eyeball Dome Camera
• 1/2.7” progressive scan CMOS sensor
• IR distance up to 20 m (65 ft)
• Built‐in microphone
• Ingress protection (IP66)
• 4 in 1 (TVI / AHD / CVI / CVBS)
| Video | |
|---|---|
| Imaging Device | 1/2.7" |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color: 0.05 Lux @ F1.2 (AGC ON) |
| B/W: 0 Lux | |
| IR ON: 0 Lux | |
| Video Output | TVI/AHD/CVI/CVBS |
| Lens Type | |
| Lens Type | Fixed |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Field of View | Horizontal: 111.4°, Vertical: 58.8°, Diagonal: 134° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| Operational | |
| Resolution | 5MP: 2592 (H) x 1944 (V) |
| Max. Frame Rate | AHD / TVI: 5 MP @20 fps AHD / CVI / TVI: 4MP, PAL@25fps, NTSC@30fps CVBS: 960H |
| IR LED Quantity | 18 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| Day/Night Mode | Color / B&W / EXT |
| Backlight Compensation | Off / User BLC |
| Digital Noise Reduction | 2D DNR |
| Gain Control | Auto |
| White Balance | ATW |
| Flip/Mirror | Flip/Rotate/Mirror |
| Image Setting | Exposure Mode, AGC, Day&Night Mode, Image Mode, AWB, Bright, Contrast, Saturation, Sharpness, NR (2D Noise Reduction), Flip, Mirror, Rotate, Reset |
| Language | English/Spanish/French/Japanese |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0° ~ 360° |
| Tilt: 0° ~ 80° | |
| Rotate: 0° ~ 360° | |
| Connectors | Power: DC jack |
| Video Output: 1 channel BNC Audio: 1 in (built‐in microphone) * The built-in microphone is only activated in TVI video output. | |
| General | |
| Operating Conditions | -30 ~ 55°C (‐22°F ~ 131°F)/less than ≤ 95% RH |
| Storage Conditions | -30 ~ 60°C (‐22°F ~ 140°F)/less than ≤ 95% RH |
| Power Source | 12V DC, 1A |
| Power Consumption | IR OFF ≤ 1W, IR ON ≤ 4W |
| Color/Material | Metal |
| Dimension (L × W × H) | Ø 100 x 90 mm (Ø 3.9” x 3.5”) |
| Weight | 410 g (0.90lb) |
| Ingress Protection | IP66 |
| Regulatory | FCC, RoHS compliant |
The GeoVision 84-CR510F2-UA00 is a high-resolution 5MP analog HD eyeball dome camera featuring a 1/2.7" progressive CMOS sensor delivering 2592x1944 resolution. Equipped with a 2.8mm fixed lens providing an ultra-wide 111.4° horizontal FOV at F1.6 aperture, it captures expansive coverage ideal for comprehensive surveillance applications. With 0.05 lux color minimum illumination and 18 IR LEDs providing 20m night vision, it delivers clear imaging in low-light conditions. The camera supports multiple video outputs including TVI, AHD, CVI, and CVBS, offering flexibility for hybrid analog/HD systems with 5MP at 20fps and 4MP at 25/30fps support. Housed in an IP66-rated metal casing with 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 55°C. Key features include built-in microphone (activated in TVI mode), 2D DNR, and comprehensive image settings including exposure, AGC, white balance, and flip/mirror/rotate adjustments. With low power consumption (1W IR off, 4W IR on) and DC 12V power, it provides an economical 5MP solution for analog HD surveillance deployments requiring high-resolution coverage in a compact eyeball dome form factor.
