GeoVision - 84-DFK1355-0010 - Keypad Reader
• Access control card and PIN code recognition
• Wiegand and RS-485 interfaces
• OSDP communication through RS-485
• 13.56 MHz ISO 14443A
• MIFARE® DESFire® card support
• GeoVision access card compatibility with GID (GeoVision Identifier)
• Ingress protection (IP66)
• Case sensor for tamper alarm detection
• 12-key keypad with white backlight
| Frequency | 13.56 MHz ISO14443A |
| Wiegand Interface | Wiegand 26 / 34 bits, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 |
| RS-485 Interface | OSDP protocol, 9,600 bps, distance 600 m (1968.50 ft) |
| Read Range | 2 cm (max) |
| Keypad | 12 keys (0-9, *, #) |
| Input / Output Ports | Input Port: Door Sensor x 1, Exit Button x 1, Case Sensor x 1 |
| Output Port: Relay, Door Lock x 1 | |
| LED | Green / Red Bi-color LED x 1 (Status / Power) |
| Beeper | Buzzer |
| Color | Black |
| Supported ID Format | UID, GID, DES-ID |
| Power Source | DC 12V, 1A |
| Power Consumption | 500 mA (max) |
| Operating Temperature | -20 °C ~ 70°C (-4 °F ~ 158 °F) |
| Operating Humidity | 20~ 80% RH (non-condensing) |

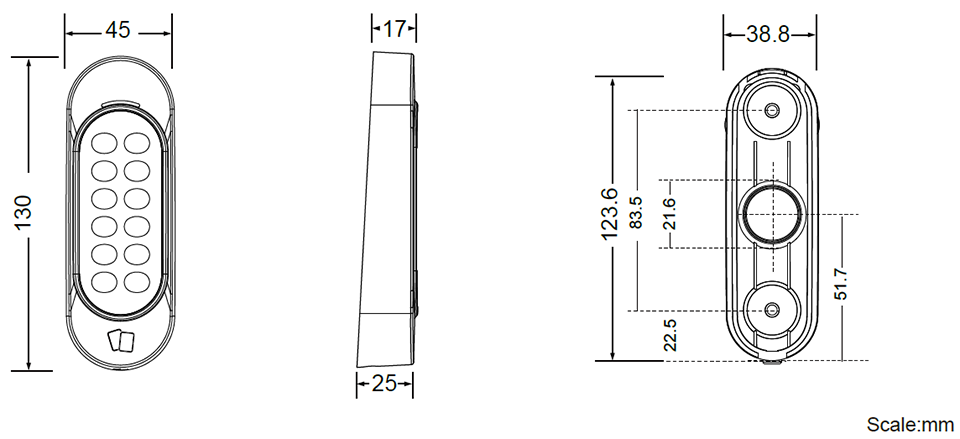

| Dimensions (L x W x H) | 130 x 45 x 25 mm / 5.1 x 1.8 x 1 in |
| Weight | 96 g / 0.21 lb |
| Ingress Protection | IP66 |
| Certification | CE, FCC, LVD, UKCA |

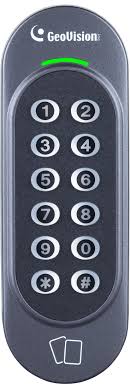

The 84-DFK1355-0010 is a slim-profile keypad reader that supports both PIN code and access card authentication. This makes it ideal for installation on narrow door frames or in tight spaces. With Wiegand and RS-485 interfaces, it can be easily integrated into a wide range of access control systems. Its IP66-rated enclosure ensures reliable performance in any environment. When paired with the GV-AS Bridge controller and GV-Cloud Access Control platform, it can control a single door, as it is equipped with two inputs (Exit Button and Door Sensor) and one output (Door Lock).
