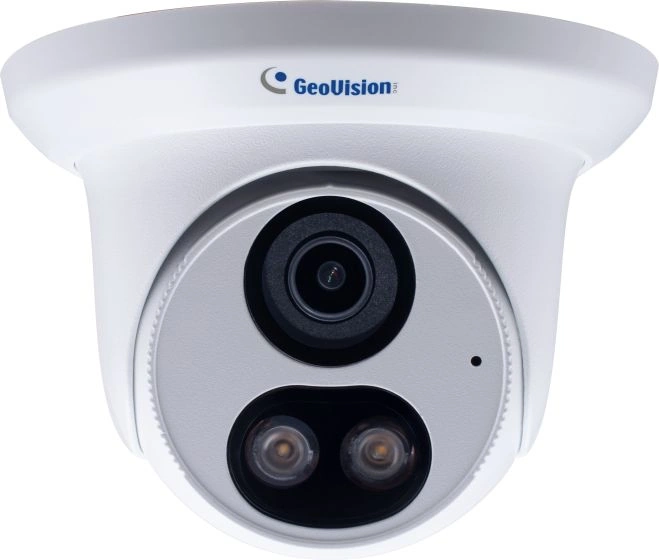

GeoVision - 84-EBFC58W-0010 - 5MP H.265 Super Low Lux WDR Pro Full Color Warm LED Eyeball Dome IP Camera
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.7" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.001 lux
• Up to 30 fps at 2880 x 1620
• Full color smart warm LEDs distance up to 30 m (100 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• DC 12V / PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/2.7" progressive scan CMOS |
| Picture Elements | 2880 (H) x 1620 (V) |
| Minimum Illumination | Color: 0.001 Lux (F1.0, AGC ON) |
| Shutter Speed | Automatic / Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR | WDR Pro |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 5 MP |
| Day / Night | Color |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/1.0 |
| Mount | M12 |
| Horizontal FOV | 102° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| Smart Illumination LED Quantity | 2 Warm LEDs |
| Max. LED Distance | 30 m (100 ft) |
| DORI | |
| Detect | 63 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 2880 x 1620 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720, 720 x 576 (Default), 640 x 480, 640 x 360 Third Stream (Closed by Default): 640 x 360, 352 x 288 |
| Frame Rate | 30 fps at 2880 x 1620, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 720 x 576, 30 fps at 704 x 288, 30 fps at 640 x 480, 30 fps at 640 x 360, 30 fps at 352 x 288 (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 40 Mbps |
| Maximum Stream | 20 *When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection. *Tampering alarm and Audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way Audio |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T, M) |
| Deep Learning Function | |
| AI Perimeter Protection | - Perimeter Protection (Human & Vehicle classification): Cross Line, Enter Area, Leave Area, Intrusion - Face Detection, People Flow Counting, Crowd Density Monitoring *All Perimeter Protection rules can be enabled together. However, due to hardware resource limitations, only one AI function can be enabled at a time: Perimeter Protection, Face Detection, People Flow Counting, or Crowd Density Monitoring. |
| Mechanical | |
| Camera Angle Adjustment | Pan: 3°~ 360° Tilt: 0°~ 80° Rotate: 3°~ 360° |
| Connectors | Power: DC 12V, PoE (IEEE 802.3af) Ethernet: RJ-45 Audio: 1 In (Built-in microphone) Local Storage: microSD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
| General | |
| Environment Temperature | Start-up: -30°C ~ 60°C (-22°F ~ 140°F) Operation: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V / PoE (IEEE802.3af) |
| Max. Power Consumption | 7.5W |
| Dimensions | Ø 126 x 93 mm (Ø 5" x 3.7") |
| Weight | 0.44 kg (0.97 lb) |
| Ingress Protection | IP67 |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Software Applications | |
| Software Supported | GV-DVR / NVR (V8.9.1), GV-VMS (V17.4.4 / V18.2.1), GV-Control Center (V3.8.0 / V4.0.1), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Recording Server / Video Gateway (V2.0.1), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1), GV-AI Guard (V1.0.0) |
| Live Viewing | Browser (Edge, IE mode in Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-EBFC58W-0010 is a high-performance 5MP eyeball dome camera featuring a 1/2.7" progressive CMOS sensor delivering 2880x1620 resolution (5MP) at 30fps. Equipped with a 2.8mm fixed lens featuring an exceptional F1.0 ultra-fast aperture and 102° horizontal field of view, it captures expansive coverage with superior light-gathering capability. With Super Low Lux technology achieving an outstanding 0.001 lux minimum illumination in color and two Warm LEDs providing 30m full-color night vision, it delivers true color imaging 24/7 without the need for infrared. WDR Pro (120dB), 56dB S/N ratio, and 3DNR ensure crystal-clear image quality in extreme low-light and high-contrast scenes. Housed in an IP67-rated weatherproof casing with full 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 60°C. Powered by on-device deep learning, the camera delivers comprehensive AI Perimeter Protection with human and vehicle classification including cross line, enter area, leave area, and intrusion detection. Additional AI functions include face detection, people flow counting, and crowd density monitoring (one AI function at a time due to hardware resources). H.265/H.264/MJPEG triple streaming with up to 40 Mbps throughput and 20 simultaneous streams optimizes performance. Video analytics include motion detection, tampering alarm, and audio detection. One-way audio with built-in microphone and edge storage via microSD card (UHS-I) provide essential functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS, GV-Control Center, GV-AI Guard, and GV-Eye mobile app for professional 5MP surveillance requiring true full-color night vision.
