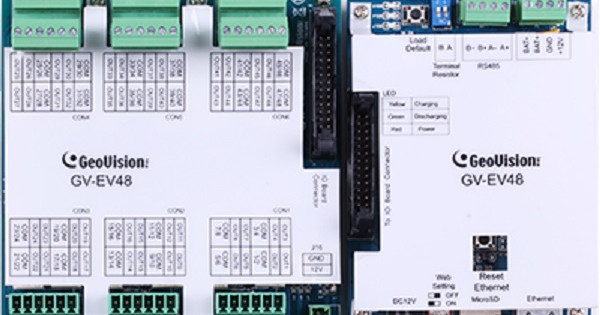

GeoVision - 84-EV48000-100U - Elevator Controller 48 Floors
Part number:
Price:
• Grant access to specific elevator floors using access cards, card's PIN code or fingerprint
• GV‐EV48 – 24 Floors: Built‐in 24 relay outputs to support up to 24 elevator floors
• GV‐EV48 – 48 Floors: Built‐in 48 relay outputs to support up to 48 elevator floors
• Support up to 2 GV‐Readers / GV‐GF Fingerprint Readers through network connection and RS‐485 connection
| System | |
|---|---|
| GV-ASManager Version | GV-ASManager V4.1 or later |
| Hardware | |
| CPU | 32-bit ARM7TDMI |
| Number of User Cards | 40,000 cards |
| Event Buffer | 1,000,000 events and log data |
| Power | AC 100~250 V, 50~60Hz |
| RS-485 Interface | 1 RS-485 interface only for GV-Readers and GV-GF Fingerprint Readers (max. 2 readers) |
| Communication | TCP/IP |
| GV-EV48-24 Floors Output | 24 relay outputs (30VDC, 1A; 125V AC, 0.3A) |
| GV-EV48-48 Floors Output | 48 relay outputs (30VDC, 1A; 125V AC, 0.3A) |
| Operating Temperature | 0~65°C / 32 ~ 149°F |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Dimensions (W x H x D) | 210 x 170 x 55 mm (8.27 x 6.69 x 2.17 in) |
| Weight | 610 g (1.34 Ib) |
| Certification | CE, FCC, RoHS |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
Quick Start Guide
1.2mb

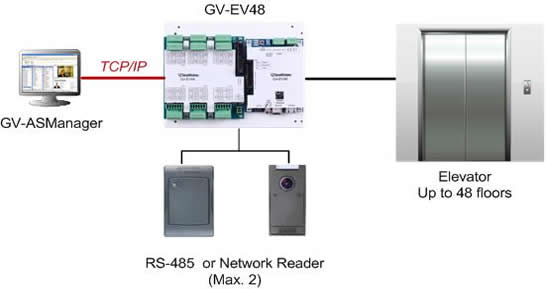

The 84-EV48000-100U is an elevator controller designed to control access to one elevator with a maximum of 48 floors. Up to two GV-Readers/GV-GF fingerprint readers can be connected to the 84-EV48000-100U using an RS-485 connection and a network connection. The GV-EV48 can recognise identification cards and grant access to authorised floors only.
