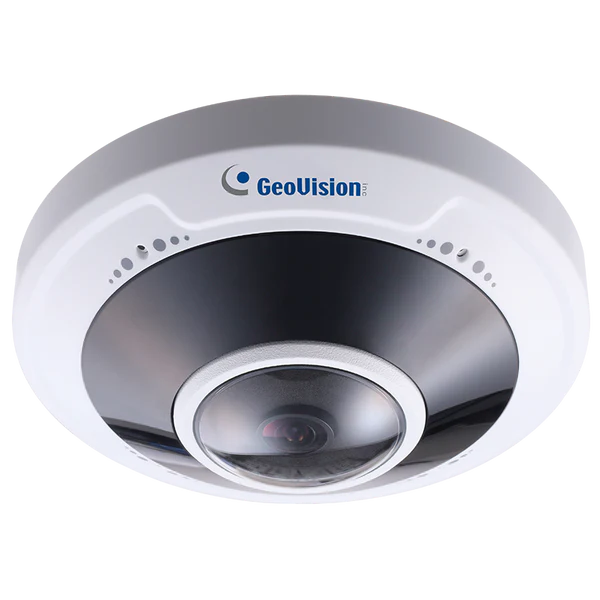

GeoVision - 84-FER572W-0010 - 5MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera
• 1/2.8" progressive scan CMOS
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2592 x 1944
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• Intelligent IR
• Vandal resistance (IK10)
• Ingress protection (IP66)
• One sensor input and one alarm output
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
• Built-in microphone
• Two-way audio capable
• No mechanical moving parts
• DC 12V / PoE (IEEE 802.af)
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan CMOS |
| Picture Elements | 2592 (H) x 1944 (V) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000s) |
| White Balance | Auto / Manual (2800K ~ 8500K) |
| S/N Ratio | 55 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Optics Lens | |
| Megapixel | Yes |
| Day/Night | Yes (with removable IR‐cut filter) |
| Lens Type | Fixed |
| Focal Length | 1.4 mm |
| Maximum Aperture | F/2 |
| Mount | M12 |
| Image Format | 1/2.8" |
| FOV | Horizontal: 180° Vertical: 180° Diagonal: 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 3 IR LEDs |
| Max. IR Distance | 20 m (65 ft) |
| DORI | |
| Detect | 31.5 m (103.3 ft) |
| Observe | 12.6 m (41.3 ft) |
| Recognize | 6.3 m (20.7 ft) |
| Identify | 3.2 m (10.5 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams from H.265, H.264 or MJPEG |
| Frame Rate | 30 fps at 2592 x 1944 (50/60 Hz) *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum throughput | 40 Mbps |
| Maximum stream | 20 *When the total bitrate is within the maximum throughput |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 180°) |
| Audio Compression | G.711 |
| Audio Support | Two‐way Audio (external speaker required) |
| Sensor Input | 1 Input, dry contact, NO / NC |
| Alarm Output | 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Video Resolution | |
| Main Stream | 2592 x 1944 (Default) |
| Sub Stream | 640 x 480, 1280 x 960 (Default) |
| Third Stream (Closed by Default) | 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1X (including EAP-TLS), ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile S, G, T) |
| Mechanical | |
| Connectors | Power: DC Jack Ethernet: RJ-45 Audio: 1 In (built‐in or external microphone with power supply), 1 Out (Audio Out Wire) Digital I/O: I/O wires Local Storage: microSD card slot (SD / SDHC / SDXC), up to 512 GB |
| General | |
| Operating Temperature | Start-up: -30⁰C ~ 60⁰C (-22°F ~ 140°F) Operation: -30⁰C ~ 60⁰C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 8.5W |
| Dimensions | Ø 125 x 44 mm (Ø 4.9" x 1.7") |
| Weight | 360 g (0.79 lb) |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Certification | CE, FCC, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese, Simplified Chinese |
| Applications | |
| Software Supported | GV-VMS (V17.4.3 / V18.2.1 or later), GV-Recording Server (V2.1.0 or later) |
| Smart Device Access | GV‐Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox), Mobile App |
The GeoVision 84-FER572W-0010 is a compact 5MP fisheye IP camera featuring a 1/2.8" progressive CMOS sensor delivering 2592x1944 resolution at 30fps with true 180° panoramic field of view (horizontal, vertical, and diagonal) via its 1.4mm fixed lens (F2.0). With Super Low Lux technology achieving 0.01 lux minimum illumination in color and three IR LEDs providing 20m night vision, it captures comprehensive 360° coverage in extreme low-light conditions. WDR Pro (120dB) and 55dB S/N ratio ensure clear imaging across the entire scene. Housed in an IK10 vandal-resistant metal casing with IP66 weatherproof rating, it operates reliably from -30°C to 60°C. The camera supports triple-streaming H.265/H.264/MJPEG compression with up to 20 simultaneous streams and 40 Mbps throughput. Two-way audio, digital I/O, and edge storage up to 512GB provide robust functionality. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-VMS, GV-Recording Server, and GV-Eye mobile app for comprehensive 180° fisheye surveillance coverage in indoor and outdoor applications.
