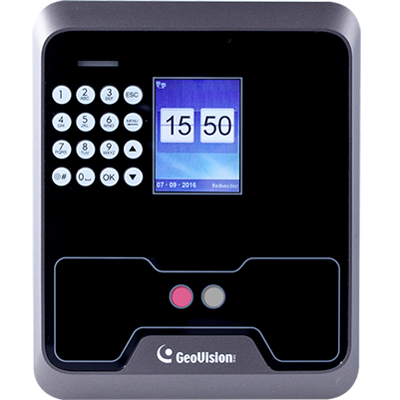

GeoVision - 84-FR20200-0010 - GV-FR2020 13.56 MHZ FACE RECOGNITION READER
Part number:
520-FR2020-000
Price:
The face recognition reader can be used in conjunction with GV‐AS Controller and GV‐ASManager to provide an intuitive, smart
access control solution. When combined with a GeoVision controller and software, GV‐FR2020 can operate in Face Recognition mode
as well as Card, Card + Face Recognition, or Password + Face Recognition.
Features:
- 2.4" TFT color screen, 320 x 240 pixel display
- Special stereo dual sensors (Lens and IR sensor)
- Up to 80 cm (31. 50 in) detection range
- 2000 face capacity
- ≤ 0.5 second verification speed
- 16-bit Hi-Fi voice and sound indication
- 12V DC, 2 A (only for standalone operation) / PoE+ (IEEE 802.3at)
- Built-in 13.56 MHz Reader
- Work with GV-AS21/41/81 series / AS1620 / CS1320 Controller and GV-ASManager
- Standalone operation
- Integration with third‐party Wiegand controllers
- 3 languages supported (English, Traditional Chinese and Hebrew)
- Four access modes: Face Recognition, Card, Card + Face Recognition and Password + Face Recognition
- Anti-Passback (APB) support
- CE, FCC compliant
Note:
- All specifications are subject to change without prior notice.
| Hardware | |
| Application | Indoor use only |
| LCD Display | 2.4” TFT color screen, 320 x 240 pixel |
| CPU | 1G MHz |
| Ambient Light | 0‐5000 lux |
| Image Sensor | Special Stereo Dual Sensors (Lens and IR sensor) |
| Function | |
| Detection Range | Up to 80 cm (31. 50 in) |
| Communication Interface | TCP/IP (LAN) and Wiegand 26/34 |
| Operation Mode | Face Recognition, Card, Password, Face Recognition + Card or Face Recognition + Password |
| Firmware Upgrade | USB 2.0 with a maximum capacity of 16 GB |
| Voice Instruction | 16‐bit Hi‐Fi Voice and Sound Indication |
| RFID Card Supported | 13.56 MHz, 26‐bit Wiegand card formats (UID only) ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic) |
| Number of Faces Stored | 2,000 (for Face Recognition mode) |
| Standalone Function | Yes (for Face Recognition, Card and Password modes) |
| General | |
| Language | English, Hebrew, Traditional Chinese |
| Humidity | 20% ~ 80% |
| Operating Temperature | 0 ~ 40° C (32 ~ 104° F) |
| Power | 12V DC, 2 A (only for standalone) / PoE+ (IEEE 802.3at) |
| PoE Power Supply Type | Mid‐span |
| Digital I/O | 1 relay output (30V DC, 3A) for standalone operation only |
| Dimensions (H x W x D) | 147 x 175 x 62 mm (5.79 x 6.89 x 2.44 in) |
| Weight | 0.33 kg (0.73 lb) |
| Certification | CE, FCC |
