GeoVision - 84-FRPV200-001U - Face Recognition Panel with Built-in NFC Reader and IPS Touch Screen
• 7" IPS touch screen with 600 x 1024 HD display
• Face recognition distance of up to 2 m (6.6 ft)
• Liveness detection (face spoofing detection)
• Masked face recognition
• Three access modes: Face Only mode, Card or Face mode, Card + Face mode
• Integration with third-party Wiegand controllers
• Mobile app supported for push notifications
• 16 languages supported
• CE, FCC, LVD, RoHS compliant
• Built-in RGB & IR cameras
• 10,000 face image capacity
• 10,000 access card capacity
• 50,000 event log capacity
• Built-in 13.56 MHz, ISO 14443A reader
• QR code reading (optional)
| Binocular Cameras RGB Camera | ||
|---|---|---|
| Image Sensor | 1/2.7” CMOS | |
| Minimum Illumination | 0.1 lux at F2.0 | |
| White Balance | Automatic | |
| Frame Rate | 20 FPS | |
| Dynamic Range | 85 dB | |
| Touchscreen Panel | ||
| Display | 7” IPS LCD | |
| Resolution | 600 x 1024 | |
| Capacity | ||
| Face Recognition Distance | 2 m (6.6 ft) | |
| Recognition Angle | Vertical (FOV): 62° | |
| Horizontal (FOV): 78° | ||
| Card Supported | • 13.56 MHz for ISO 14443A | |
| • QR code reading (Optional) | ||
| Capacity | Face Image: 10,000 Card: 10,000 Event Log: 50,000 | |
| Operation Mode | Face Only mode, Card or Face mode, Card + Face mode | |
| Firmware Upgrade | via GV-IP Device Utility | |
| Installation Management | Web-based configuration | |
| Face Recognition | ||
| Recognized Face Angle | Tilt (Down / Up): -35° ~ 35° | |
| Swing (Left / Right): -35° ~ 35° | ||
| Network | ||
| Interface | 10/100 Ethernet | |
| Mechanical | ||
| Audio | Built-in speaker and microphone | |
| Internal Storage | 16 GB eMMC | |
| Connector | Power: DC jack | |
| Ethernet: RJ-45 | ||
| Wiegand Output: Wiegand 26 / 34 bits, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 | ||
| Wiegand Input: Not functional | ||
| Relay Output: DC 30V, 1A USB: 2.0 | ||
| General | ||
| Model | GV-FR Panel V2 / V2-QR | GV-FR Panel V2 with Pillar Stand / V2-QR with Pillar Stand |
| Language: Bulgarian, Chinese Simplified, Chinese Traditional, Czech, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Slovak, Spanish, Thai, Ukrainian | ||
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) | |
| Humidity | 10% ~ 90% (non-condensing) | |
| Power | DC 12V, 3A | |
| Max. Power Consumption | 5 W | |
| Dimensions (H x W x D) | 261 x 124 x 21.3 mm (10.28 x 4.88 x 0.84 in) | 377 x 124 x 86 mm (14.84 x 4.88 x 3.39 in) |
| Weight | 0.92 kg (2.03 lb) | 1.35 kg (2.98 lb) |
| Pillar Stand Tilt Angle | N/A | 45° |

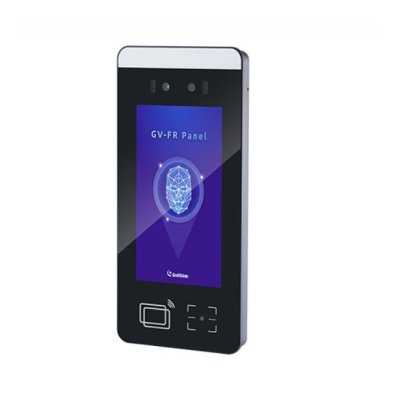

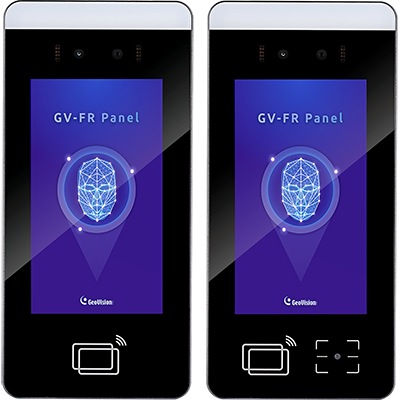

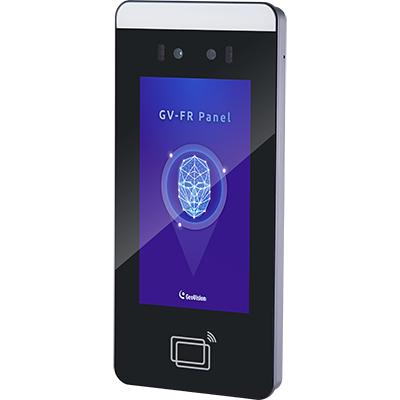

The GV-FR Panel V2 is a face-recognition-based access reader featuring a 7-inch LCD touchscreen capable of displaying HD images at 600 x 1024 resolution. When connected to the GV-ASManager access control system, the GV-FR Panel V2 can grant or deny access using the following methods: Face Recognition, Access Cards and Card Plus Face Double Authentication. The GV-FR Panel V2-QR can read QR codes generated by the GV-ASManager Visitor Management System (GV-VMWeb). Guests can enter regulated areas by scanning the QR code displayed on their mobile phone. The GV-FR Panel V2 can integrate with any third-party Wiegand access control system thanks to its advanced face recognition capability. It combines AI video analytics with access control to enhance convenience and security. The live view from the GV-FR Panel V2 can be displayed on the GV-VMS, providing a more comprehensive surveillance management environment. When integrated with the GV-GEBF4911 camera, the GV-FR Panel V2 supports tailgating detection for a designated entry area. If multiple individuals are detected attempting to enter at the same time, the GV-FR Panel V2 will deny access to prevent unauthorised entry.
