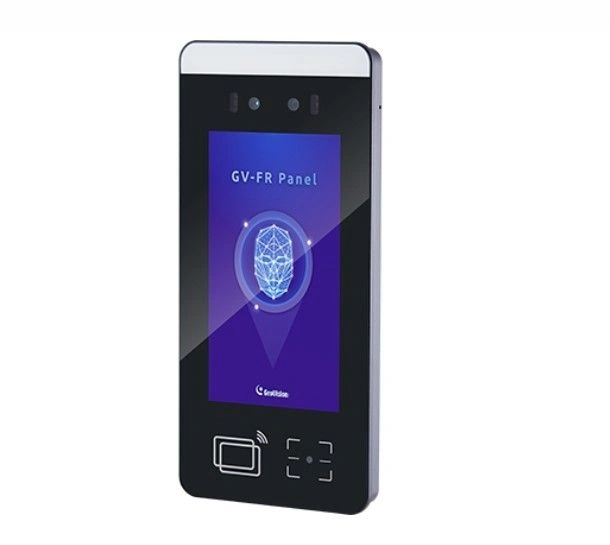

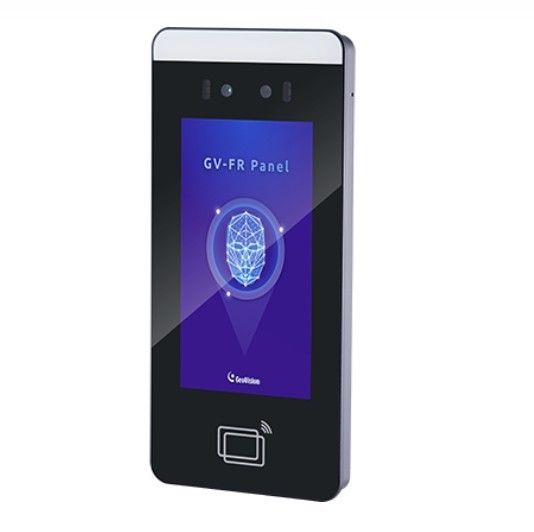

GeoVision - 84-FRPV2Q0-001U - Face Recognition Panel with Built-in NFC / QR Code Reader and IPS Touch Screen
Product Overview
The GeoVision GV‑FR Panel V2 is a face‑recognition‑based access reader featuring a 7‑inch IPS touchscreen (600×1024 HD), built‑in RGB and IR cameras, and a face recognition distance of up to 2 meters. It offers a capacity of 10,000 faces or cards and 50,000 event logs, and includes an integrated 13.56 MHz ISO 14443A NFC reader for seamless credential management.
Key Configuration
- • Display: 7" IPS LCD, 600×1024 resolution
- • Face recognition distance: up to 2m (6.6 ft)
- • Recognition angle: vertical 62°, horizontal 78°
- • Capacity: 10,000 faces, 10,000 cards, 50,000 events
- • Binocular cameras: RGB + IR
- • Card reader: 13.56 MHz ISO 14443A (QR code optional)
Key Features
The GV‑FR Panel V2 offers three access modes: Face Only, Card or Face, and Card + Face, with liveness detection to prevent face spoofing and masked face recognition for access with face coverings. It supports QR code reading (V2‑QR model) for visitor access via GV‑ASManager Visitor Management System, and tailgating detection when integrated with the GV‑GEBF4911 camera.
Technical Context
Wiegand output (26/34 bits) enables integration with third‑party controllers via GV‑AS1620/2120/4110/8110 series, while connection to GV‑ASManager grants or denies access using facial, card, or double authentication. Live view casting to GV‑VMS provides surveillance integration, and the built‑in speaker and microphone support two‑way communication. 16GB eMMC storage, 16 languages, and certifications (CE, FCC, LVD, RoHS) are included.
Installation Notes

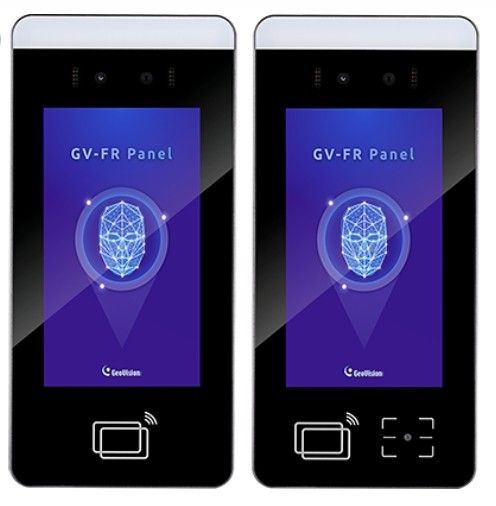

The panel measures 261 × 124 × 21.3 mm and weighs 0.92 kg, operating from -10°C to 50°C with 10‑90% RH. Powered by DC 12V, 3A (max 5W), it features RJ‑45 10/100 Ethernet, USB 2.0, and a relay output of DC 30V, 1A. Firmware upgrades are done via GV‑IP Device Utility, with web‑based configuration and GV‑Eye mobile app for push notifications. Available in standard and V2‑QR (with QR reader) models.
| Binocular Cameras RGB Camera | |
| Image Sensor | 1/2.7" CMOS |
| Minimum Illumination | 0.1 lux at F2.0 |
| White Balance | Automatic |
| Frame Rate | 20 FPS |
| Dynamic Range | 85 dB |
| Touchscreen Panel | |
| Display | 7" IPS LCD |
| Resolution | 600 x 1024 |
| Capacity | |
| Face Recognition Distance | 2 m (6.6 ft) |
| Recognition Angle - Vertical (FOV) | 62° |
| Recognition Angle - Horizontal (FOV) | 78° |
| Card Supported | 13.56 MHz for ISO 14443A QR code reading (Optional) |
| Face Image Capacity | 10,000 |
| Card Capacity | 10,000 |
| Event Log Capacity | 50,000 |
| Operation Mode | Face Only mode, Card or Face mode, Card + Face mode |
| Firmware Upgrade | via GV-IP Device Utility |
| Installation Management | Web-based configuration |
| Face Recognition | |
| Recognized Face Angle - Tilt (Down / Up) | -35° ~ 35° |
| Recognized Face Angle - Swing (Left / Right) | -35° ~ 35° |
| Network | |
| Interface | 10/100 Ethernet |
| Mechanical | |
| Audio | Built-in speaker and microphone |
| Internal Storage | 16 GB eMMC |
| Connector | |
| Power | DC jack |
| Ethernet | RJ-45 |
| Wiegand Output | Wiegand 26 / 34 bits, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 |
| Wiegand Input | Not functional |
| Relay Output | DC 30V, 1A |
| USB | 2.0 |
| General | |
| Model | GV-FR Panel V2 / V2-QR |
| Language | Bulgarian, Chinese Simplified, Chinese Traditional, Czech, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Slovak, Spanish, Thai, Ukrainian |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | 10% ~ 90% (non-condensing) |
| Power | DC 12V, 3A |
| Max. Power Consumption | 5 W |
| Dimensions (H x W x D) | 261 x 124 x 21.3 mm (10.28 x 4.88 x 0.84 in) |
| Weight | 0.92 kg (2.03 lb) |
| Pillar Stand Tilt Angle | N/A |
