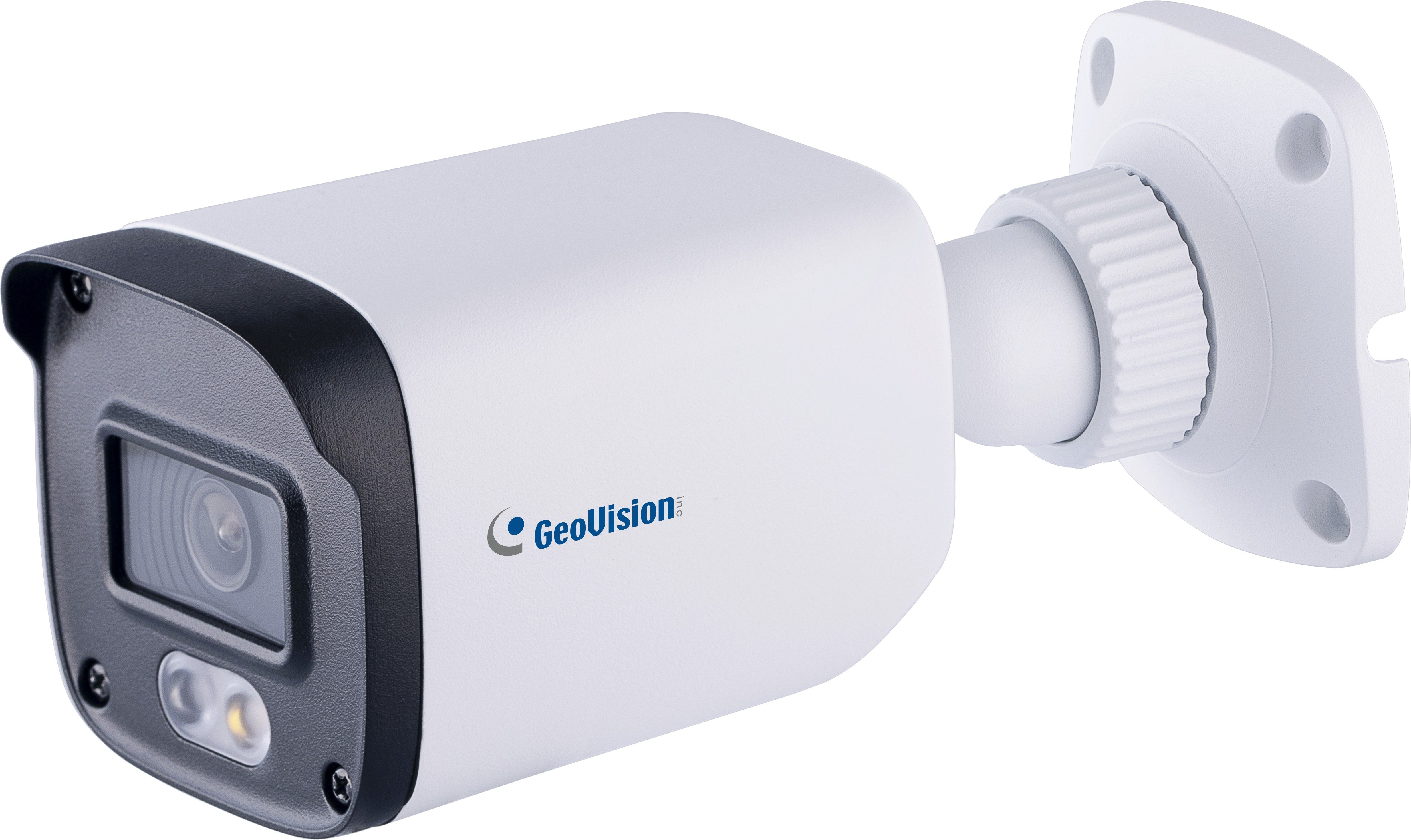

GeoVision - 84-GBLF282-3F10 - AI 2MP H.265 Super Low Lux WDR Pro Full Color Warm LED IR Bullet IP Camera, 3.6mm
• AI deep learning: Smart Perimeter Protection & Classification (Human, Vehicle)
• 1/2.8" progressive scan CMOS sensor
• Min. illumination at 0.008 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 1920 x 1080
• Smart warm LED distance up to 30 m (100 ft)
• Intelligent IR
• Wide Dynamic Range Pro (WDR Pro)
• IR distance up to 30 m (100 ft)
• Built-in microphone
• Built-in microSD card slot (SDHC / SDXC / UHS-I, Class 10) for local storage
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan CMOS |
| Picture Elements | 1920 (H) x 1080 (V) | 2 Megapixels (1080p) |
| Minimum Illumination | Color: 0.008 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 2 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 3.6 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Horizontal FOV | 89° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| Smart Illumination LED Quantity | 1 Warm LED |
| Max. LED Distance | 30 m (100 ft) |
| DORI | |
| Detect | 50 m (164.0 ft) |
| Observe | 20 m (65.6 ft) |
| Recognize | 10 m (32.8 ft) |
| Identify | 5 m (16.4 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Three streams |
| Video Resolution | Main Stream: 1920 x 1080 (Default), 1280 x 720 Sub Stream: 704 x 480, 704 x 576, 640 x 480, 640 x 360 (Default), 352 x 240, 352 x 288 Third Stream: 704 x 480 (Default), 704 x 576, 480 x 240, 352 x 240, 352 x 288 |
| Frame Rate | 30 fps at 1920 x 1080 / 1280 x 720 / 704 x 480 / 640 x 480 / 352 x 240 (60 Hz) 25 fps at 1920 x 1080 / 1280 x 720 / 704 x 576 / 640 x 480 / 352 x 288 (50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | AI off: 64 Mbps AI on: 12 Mbps |
| Maximum Stream | 6 * When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection, Video Exception |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Video Cast Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°– including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Intrusion *The two functions can only be enabled one at a time. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 80° Rotate: 0 ~ 360° |
| Connectors | Power: DC jack, PoE Ethernet: RJ-45 Audio: Built-in microphone: Yes; External microphone required: Yes (Audio jack, 3.5 mm); Built-in speaker: No; External speaker required: No * For devices with a microphone or speaker, choose either the built-in or external option. * If equipped with an Audio In port, it only supports microphones with power supply. Local Storage: Micro SD card slot (SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12V DC, 1.5A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 6 W |
| Dimensions | 165.7 × 69 × 69 mm (6.5 × 2.7 × 2.7 in) |
| Weight | 0.45 kg (0.992 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian, Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Traditional Chinese |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 with Patch or later, V18.3.4 with Patch or later), GV-Edge Recording Manager (V2.2.8 or later), GV-Control Center (V4.2.1 or later), GV-Recording Server (V2.1.1 with Patch or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Web Browser (Edge 120.0.2210.121, Chrome 120.0.6099.200, Firefox 121.0, Safari 11), Mobile App |
The GeoVision 84-GBLF282-3F10 is a versatile 2MP bullet camera featuring a 1/2.8" progressive CMOS sensor delivering 1920x1080 Full HD resolution at 30fps. Equipped with a 3.6mm fixed lens providing an 89° horizontal FOV at F1.6 fast aperture, it captures targeted coverage with superior light-gathering capability. With Super Low Lux technology achieving 0.008 lux color minimum illumination and dual illuminators - one IR LED and one Warm LED, both providing 30m distance - it delivers true full-color night vision without infrared. WDR Pro (120dB) and 3DNR ensure exceptional image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and full 3-axis mechanical adjustment (pan 360°/tilt 80°/rotate 360°), it operates reliably from -30°C to 60°C with DORI detection up to 50m. Powered by on-device deep learning, it delivers AI analytics, including line crossing and region intrusion (one function at a time). H.265 triple streaming with edge storage up to 512GB ensures robust performance. Fully ONVIF Profile G/S/T/M compliant, it integrates with GV-VMS and GV-Eye for professional 2MP AI surveillance requiring full-color night vision.
