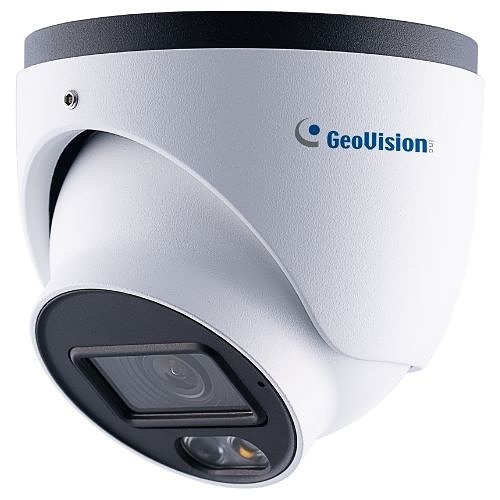

GeoVision - 84-GEBF482-2F10 - AI 4MP H.265 Super Low Lux WDR Pro Full Color Warm LED IR Eyeball Dome IP Camera, 2.8mm
• AI deep learning: Smart Perimeter Protection & Classification (Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2560 x 1440
• Wide Dynamic Range Pro (WDR Pro)
• Smart warm LED distance up to 30 m (100 ft)
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• 3-axis mechanism (pan / tilt / rotate)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• DC 12V / PoE (IEEE 802.3af)
| Camera | |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Picture Elements | 2560 (H) x 1440 (V) |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F/1.6 |
| Mount | M12 |
| Image Format | 1/3" |
| FOV | Horizontal: 94° Vertical: 50° Diagonal: 115° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 1 IR LED |
| Max. IR Distance | 30 m (100 ft) |
| Smart Illumination Quantity | 1 Warm LED |
| Max. Warm LED Light Distance | 30 m (100 ft) |
| DORI | |
| Detect | 2.8 mm: 62 m (203.4 ft) 3.6 mm: 79 m (259.1 ft) |
| Observe | 2.8 mm: 25 m (82.0 ft) 3.6 mm: 32 m (104.9 ft) |
| Recognize | 2.8 mm: 12 m (39.3 ft) 3.6 mm: 16 m (52.4 ft) |
| Identify | 2.8 mm: 6 m (19.6 ft) 3.6 mm: 8 m (26.2 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution | Main Stream: 2560 x 1440 (default), 2304 x 1296, 1920 x 1080, 1280 x 720 Sub Stream: 1280 x 720 (default), 704 x 480, 704 x 576, 640 x 480, 352 x 240, 352 x 288 Third Stream: 704 x 480 (default), 704 x 576, 480 x 240, 352 x 240, 352 x 288 |
| Frame Rate | Max. 30 fps (60 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 480 x 240, 352 x 240 Max. 25 fps (50 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 480 x 240, 352 x 288 |
| Maximum Throughput | 6 Mbps |
| Maximum Stream | 6 * When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Object Abandoned / Missing Detection, Video Exception |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Abnormal Color Detection |
| Image Setting | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°– including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | One-way audio |
| Deep Learning Function | |
| AI Analytics | Line Crossing, Region Intrusion (Human & Vehicle classification) * The two functions can only be enabled one at a time. |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 360° Tilt: 0 ~ 75° Rotate: 0 ~ 360° |
| Connectors | Power: DC jack Ethernet: RJ-45 connector Audio: Built-in microphone: Yes; External microphone required: Yes (audio jack, 3.5 mm or 0.14 in); Built-in speaker: No; External speaker required: No * Choose either the built-in or external microphone. * The Audio In port only supports microphones with a power supply. Local Storage: microSD card slot (SD / SDHC / SDXC), up to 256 GB |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | DC 12V, 1A / PoE (IEEE 802.3af) |
| Max. Power Consumption | 6 W |
| Dimensions | Ø 94.6 × 82.8 mm (Ø 3.7 × 3.3 in) |
| Weight | 0.45 kg (0.99 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Certification | CE, FCC, RoHS, UKCA compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish, Ukrainian |
| Software Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required), GV-Control Center (V4.2.1.0 or later), GV-Edge Recording Manager (V2.3.0 or later), GV-Recording Server (V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.4 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.4.1 or later) |
| Live Viewing | Web Browser (Chrome, Edge, Firefox, Safari), Mobile App |
The GeoVision 84-GEBF482-2F10 is an advanced 4MP eyeball dome camera featuring a 1/3" progressive CMOS sensor delivering 2560x1440 Quad HD resolution at 30fps. Equipped with a 2.8mm fixed lens (F1.6) providing a 94° horizontal field of view, it captures wide-area coverage ideal for comprehensive surveillance. With Super Low Lux technology achieving 0.005 lux minimum illumination in color and dual illuminators—one IR LED and one Warm LED, both providing 30m distance—it delivers true full-color night vision without compromising low-light performance. WDR Pro (120dB) and 3DNR ensure exceptional image quality in high-contrast scenes. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating and full 3-axis mechanical adjustment (pan 360°/tilt 75°/rotate 360°), it operates reliably from -30°C to 60°C. Powered by on-device deep learning, the camera delivers AI analytics including line crossing and region intrusion with human and vehicle classification (one function at a time). H.265/H.264 triple streaming with up to 6 Mbps throughput and 6 simultaneous streams optimizes bandwidth efficiency. Video analytics include motion detection, object abandoned/missing detection, and video exception detection. One-way audio with built-in microphone and edge storage up to 256GB via microSD card provide essential functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for reliable AI-powered 4MP surveillance requiring full-color night vision.
