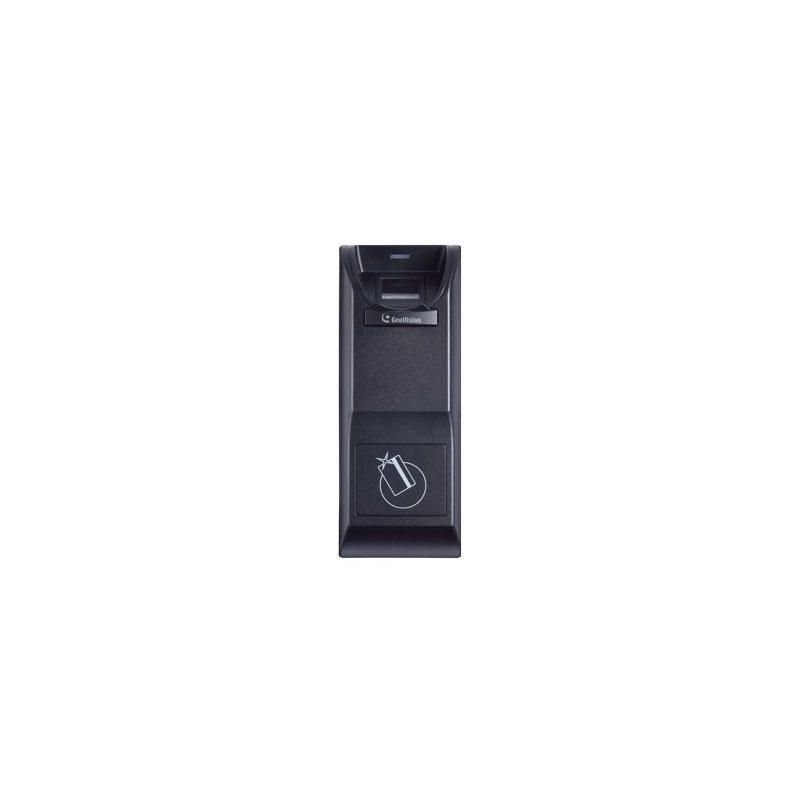

The fingerprint reader works with GeoVision controllers and GV-ASManager system to create a complete access control system. Three types of operation modes are supported: Card + Fingerprint, Fingerprint Only, and Card Only.
Features:
- Work with GV-AS / GV-EV Controller and GV-ASManager
- Standalone mode available
- Three types of access modes: card only, fingerprint only and card plus fingerprint
- Connect with GV-AS Controller through TCP/IP interface (WAN)
- Enroll fingerprints through TCP/IP connection with GV-ASManager (Fingerprint Only Mode)
- GeoVision access cards with GID (GeoVision Identifier) to enhance security
- Optical sensor
Note:
- For data synchronization with GV-ASController and GV-ASManager through the Ethernet, it only supports the following controller firmware version and software version:
* GV-ASManager: V4.0 or later
* GV-AS210 / 410 / 810: V1.1 or later
* GV-AS2110 / 4110 / 8110: V1.23 or later - GV-GF1922 does not support third-party controllers.
- All specifications are subject to change without prior notice.
|
Models |
GV‐GF1921 |
GV‐GF1922 |
|
|
Hardware |
|||
|
Application |
Indoor use only |
||
|
Sensor |
Capacitive |
Optical |
|
|
Sensing Area (H x W) |
18 x 13 mm (0.71 x 0.51 in) |
20 x 17 mm (0.79 x 0.67 in) |
|
|
Output Interface |
DC 30V, 0.3A |
||
|
Input Interface |
2 Ports, dry‐contact |
||
|
Communication Interface |
TCP/IP (LAN / WAN) |
||
|
Supported Card |
ISO14443A (MIFARE DESFire, MIFARE Plus, and MIFARE Classic), 13.56 MHz |
||
|
Function |
|||
|
Operation Mode |
Fingerprint Only, Card + Fingerprint, Card Only |
||
|
Fingerprint Enrollment |
(Fingerprint Only Mode) |
TCP/IP |
|
|
(Fingerprint + Card Mode) |
|||
|
Firmware Upgrade |
TCP/IP |
||
|
Number of Fingerprints Stored |
1,900 (for Fingerprint Only mode) |
||
|
Standalone Function |
Yes (for Fingerprint Only mode) |
||
