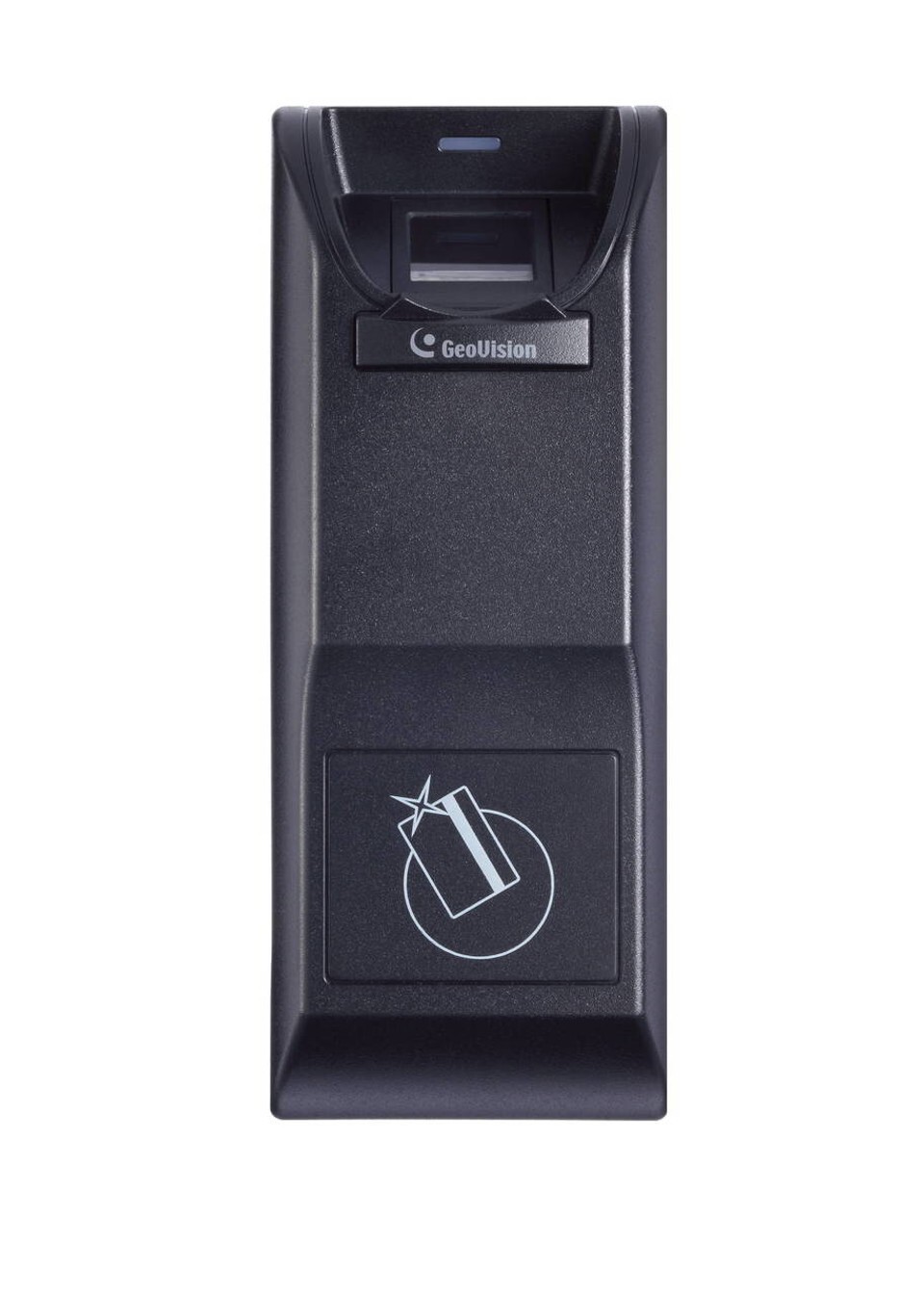

GeoVision - 84-GF19220-2000 - Fingerprint Reader
Part number:
Price:
• Storage capacity of up to 9,500 fingerprints on the reader
• Three access modes: cards only, fingerprints only, and cards with fingerprints
• Fingerprint template storage on user cards (Card with Fingerprint Mode)
• Fingerprint enrollment with GV-ASManager (Fingerprint Only Mode)
• GeoVision access card compatibility with GID (GeoVision Identifier)
• Standalone operation mode supported
| Hardware | |
|---|---|
| Sensor | Optical |
| Sensing Area (H x W) | 20 x 17 mm (0.79 x 0.67 in) |
| Frequency | 13.56 MHz ISO 14443A |
| Communication Interface | TCP/IP (LAN, WAN) |
| Output Interface | 1 out (door relay), DC 30 V, 0.3A |
| Input Interface | 2 inputs (door sensor and exit button), dry contact |
| Function | |
| Operation Mode | Fingerprint Only, Card + Fingerprint, Card Only |
| Fingerprint Enrollment | Fingerprint Only Mode: via GV-ASManager |
| Fingerprint + Card Mode: via Enroll Card / Delete Card / GV-AS ID F Card | |
| Firmware Upgrade | via Web interface or GV-IP Device Utility |
| Number of Fingerprints Stored | 9,500 |
| Standalone Operation | Yes (for Fingerprint Only mode) |
| General | |
| Application | Indoor use only |
| Operating Temperature | 0 ~ 50° C (32 ~ 122° F) |
| Humidity | 10% ~ 90% (no condensation) |
| Power | DC 7 ~ 15 V, Max 250mA |
| Dimensions (H x W x D) | 138 x 59 x 48 mm (5.43 x 2.32 x 1.89 in) |
| Weight | 160 g (0.35 lb) |
| Certification | CE, FCC |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
GV-Access Control Reader Comparison
0.4mb
When combined with the GeoVision controller and access control system, the fingerprint reader forms a complete access control solution. Fingerprints can be enrolled either directly on the reader or via the GV-ASManager system, enabling centralised distribution of fingerprint data across multiple readers.
