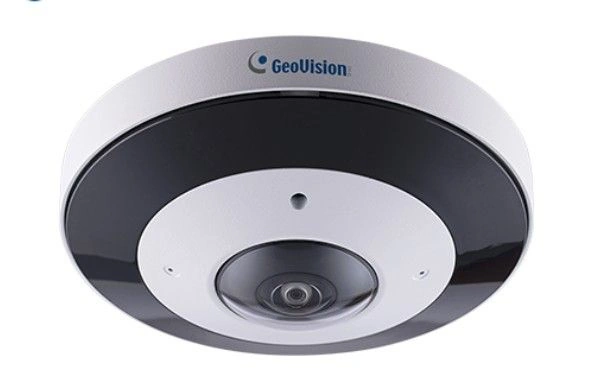

GeoVision - 84-GFER690-0010 - Cloud AI 6MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera, 1.65mm
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
• 1/2.5" progressive scan CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264, or MJPEG
• Up to 30 fps at 2160 x 2160
• Wide Dynamic Range Pro (WDR Pro)
• Day / Night functionality (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 20 m (66 ft)
• Two-way audio capable
• Built-in microphone
• Built-in microSD card slot (SDHC/SDXC/UHS-I, Class 10)for local storage
• DC 12V / PoE (IEEE 802.3af)
• Ingress protection (IP67)
• Vandal resistance (IK10)
| Camera | |
|---|---|
| Image Sensor | 1/2.5" progressive scan CMOS |
| Picture Elements | 2160 (H) x 2160 (V) |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON) B/W: 0 Lux IR On: 0.1 Lux |
| Shutter Speed | Auto / Manual (1/3 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Automatic |
| S/N Ratio | 50 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 6 MP |
| Day/Night | Yes (with removable IR‐cut filter) |
| Lens Type | Fixed |
| Focal Length | 1.65 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| Image Format | 1/2.5" |
| Horizontal FOV | 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| IR LED Quantity | 4 IR LEDs |
| Max. IR Distance | 20 m (66 ft) |
| DORI | |
| Detect | 33 m (108.2 ft) |
| Observe | 13.1 m (42.9 ft) |
| Recognize | 6.6 m (21.6 ft) |
| Identify | 3.3 m (10.8 ft) |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+, MJPEG |
| Video Streaming | Triple streams from H.265, H.264, or MJPEG |
| Frame Rate | Max. 30 fps (60 Hz) / 25 fps (50 Hz) at 3200 x 1800, 2160 x 2160, 1920 x 1080, 1440 x 1440, 1280 x 720, 1080 x 1080, 960 x 960, 720 x 720, 640 x 640, 640 x 360, 480 x 480, 360 x 360 Max. 20 fps (50 & 60 Hz) at 2560 x 1440 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | AI Off: 10 Mbps AI On: 10 Mbps |
| Maximum Streams | 10 * By default, 2 connections are occupied whether connected to GV-Cloud VMS or not. |
| Video Analytics | Motion Detection |
| Smart Alarm | Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection |
| Image Settings | Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, Defog, BLC, Antiflicker, Smart IR, Image Orientation (Flip, Mirror, 0°, 180°) |
| Stream Mode & Supported Live Preview | 1: Fisheye - Fisheye View 2: Panoramic View - Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°) 3: Fisheye + Panoramic View + 3 PTZ - Fisheye View, Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°), Fisheye View + PTZ x 3, Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°) + PTZ x 3 4: Fisheye + 4 PTZ - Fisheye View, PTZ x 4 5: Fisheye + 4 PTZ Fusion - Fisheye View, 4 PTZ Fusion |
| Installation Method & Supported Live Preview | Ceiling Mount: Fisheye View, 180°Panoramic View x 2, Fisheye View + PTZ x 3, 180° Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion Wall Mount: Fisheye View, 360°Panoramic View, Fisheye View + PTZ x 3, 360° Panoramic View + PTZ x 3, PTZ x 4, 4 PTZ Fusion Desktop Mount: Fisheye View, 180°Panoramic View x 2, Fisheye View + PTZ x 3, 180° Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external speaker required) |
| Digital I/O | Input: 1 input, dry contact, NO / NC Output: 1 relay output (DC 30V, 1A / AC 125V, 0.3A) |
| Video Resolution Hardware (On-Edge) Dewarping | |
| Main Stream (only in Edge IE mode) | Fisheye View: 2160 x 2160 (default), 1440 x 1440, 1080 x 1080 Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°): 3200 × 1800 (default), 2560 x 1440, 1920 × 1080 PTZ: 1280 × 720 (default) 4 PTZ Fusion: 2560 × 1440 (default) |
| Sub Stream | Fisheye View: 960 × 960 (default), 720 x 720, 480 × 480 Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°): 1280 x 720 (default), 640 x 360 PTZ: N/A 4 PTZ Fusion: 640 x 360 (default) |
| Third Stream | Fisheye View: 640 x 640 (default), 360 x 360 Panoramic View (Ceiling / Desktop: 180°x 2, Wall: 360°): 1280 x 720 (default), 640 x 360 PTZ: N/A 4 PTZ Fusion: 640 x 360 (default) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IP, UPnP |
| Deep Learning Function | |
| AI Analytics | Only the following configurations of Stream Modes and Installation Methods enable smart detection events. Configuration 1 (Human detection only): Modes: 1, 3, 4, 5; Mounting: Ceiling; Functions: Target Counting by Line, Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Crowd Density, Heat Map Configuration 2 (Human and vehicle detection): Modes: 2, 3; Mounting: Wall or Desktop; Functions: Target Counting by Line, Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Crowd Density * A maximum of 1 smart detection event is allowed at a time to ensure comprehensive detection results and the optimized performance by the camera. * Once connected to GV-Cloud VMS / GV-Center V2, up to 1 smart detection event is supported. |
| Mechanical | |
| Connectors | Power: DC jack, PoE Ethernet: RJ-45 RS-485: Yes, half-duplex Audio: Built-in microphone: Yes; External microphone required: Yes (audio jack, 3.5 mm or 0.14 in); Built-in speaker: No; External speaker required: Yes (audio jack, 3.5 mm or 0.14 in) * Choose either the built-in or external microphone. * The Audio In port only supports microphones with a power supply. Video Output: CVBS output (BNC connector x 1) Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14 in) Local Storage: microSD card slot (SDHC/SDXC/UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | DC 12V / PoE (IEEE 802.3af) |
| Max. Power Consumption | 10 W |
| Dimension | Ø 130.6 x 46.3 mm (Ø 5.14 x 1.82 in) |
| Weight | 516.2 g (1.14 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Playback, Image Quality, Video Recording (only in Edge IE mode), Image Snapshot, Two-Way Audio (only in Edge IE mode), Digital Zoom, Bandwidth Control, Virtual PTZ, Auto Pan, Text Overlay, Image Masking, Intelligent Mark |
| Language | Chinese Traditional, Czech, Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America), Turkish |
| Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.5 or later, patch files required), GV-Control Center (V4.2.1 or later, patch files required), GV-Edge Recording Manager for Windows (V2.2.8 or later, patch files required), GV-Recording Server (V2.1.1 or later, patch files required), GV-Cloud VMS (V1.2.1 or later), GV-Center V2 (V18.4.1 or later, patch files required), GV-IP Device Utility (V9.0.2 or later) |
| Smart Device Access | GV-Eye for iOS (V3.1.0 or later), GV Eye for Android (V3.1.1 or later) |
| Live Viewing | Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-GFER690-0010 is a specialized 6MP fisheye IP camera featuring a 1/2.5" progressive CMOS sensor delivering 2160x2160 resolution at 30fps with a 180° panoramic field of view via its 1.65mm fixed lens. With Super Low Lux technology achieving 0.01 lux minimum illumination in color and four Intelligent IR LEDs providing 20m night vision, it captures comprehensive 360° surveillance in extreme low-light conditions. WDR Pro (120dB), defog, and 3DNR ensure clear imaging across the entire scene. Housed in an IK10 vandal-resistant metal casing with IP67 weatherproof rating, it includes RS-485, CVBS video output, and operates reliably from -30°C to 60°C. Powered by on-device deep learning, the camera delivers AI analytics including human and vehicle detection with configurable stream modes for ceiling, wall, or desktop mounting. Smart events include line crossing, region intrusion, crowd density, heat mapping, and target counting. Advanced dewarping options provide multiple viewing modes: Fisheye View, Panoramic View (180°x2 or 360°), PTZ x4, and 4 PTZ Fusion for seamless panoramic tracking. H.265/H.264 triple streaming, two-way audio, digital I/O, and edge storage via microSD card ensure robust functionality. Fully ONVIF Profile G/S/T/M compliant, it integrates seamlessly with GV-Cloud VMS, GV-Center V2, and GV-Eye mobile app for comprehensive 360° cloud surveillance.
