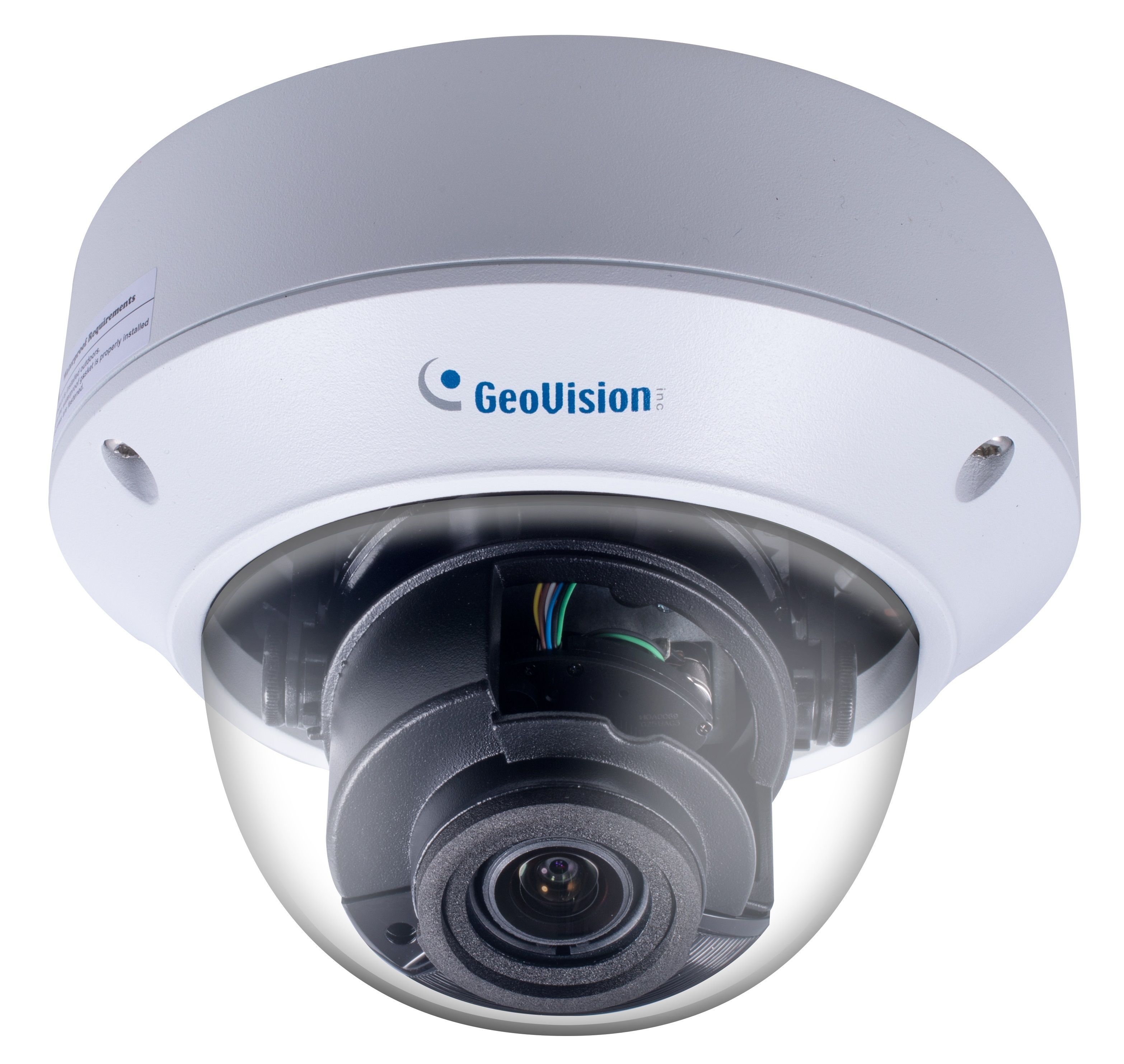

GeoVision - 84-GVD4810-0010 - 4 Megapixel IR Vandal Proof Network Dome Camera, 2.7-13.5mm Lens
Product Overview
The GV‑TVD4810 is a 4 MP outdoor IP dome camera with H.265 compression, AI deep learning analytics, Super Low Lux imaging, WDR Pro, and 5x optical zoom. It features intelligent IR, IK10 vandal‑resistant metal housing, and IP67 weather protection for reliable day/night surveillance.
Key Configuration
• Camera: 4 MP IP dome camera with a 1/3" progressive scan super low lux CMOS sensor.
• Lens: Motorized varifocal lens with 5× optical zoom for remote zoom and focus adjustment.
• Video: Triple-stream support with H.265, H.264, and MJPEG compression.
• IR: Up to 40 m (130 ft) IR illumination with automatic day/night switching.
• Power: 12V DC or IEEE 802.3af PoE.
Key Features
This camera features AI perimeter protection with human and vehicle classification, streaming at 30 fps in 2688 × 1520 resolution. WDR Pro and Super Low Lux ensure clear imaging in challenging light. It supports ONVIF G/S/T, microSD edge storage, and two-way audio (external speaker required).
Installation Notes
It can be powered via DC 12V or PoE for flexible installation, supports local recording through a microSD card slot, and features a 3‑axis adjustment mechanism for easy pan, tilt, and rotation positioning during mounting.
| Camera | |
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination | Color: 0.002 Lux (F1.2, AGC ON); IR On: 0 Lux |
| Shutter Speed | Automatic, Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes, with removable IR-cut filter |
| Focal Length | 2.7 ~ 13.5 mm |
| Lens Type | Motorized varifocal lens |
| Maximum Aperture | F/1.2 |
| Mount | Ø 14 mm |
| Horizontal FOV | 98° ~ 31° |
| Operation | |
| Focus | Automatic / Manual |
| Zoom | 5x optical zoom |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 40 m (130 ft) |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Frame Rate | 30 fps at 2688 x 1520; 30 fps at 2560 x 1440; 30 fps at 2304 x 1296 (60 / 50 Hz). Frame rate and performance may vary depending on the number of connections and data bitrates. |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection. Tampering alarm and audio detection are accessible through the camera web interface and can trigger alerts such as e-mail and FTP. |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°, including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Two-way audio, external speaker required |
| Digital I/O Input | 1 input, dry contact, NO / NC |
| Digital I/O Output | 1 relay output (1A 30V DC / 0.3A 125V AC) |
| Face Detection | |
| Environment | 100 lux |
| Detectable Face Angle | Tilt (Up/Down): ≤ 10°; Swing (Left/Right): ≤ 30° |
| Max. Number of Faces | Up to 40 |
| Min. Face Image Pixel Requirement | 80 pixels |
| Deep Learning Function | |
| AI Analytics | Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area with human and vehicle classification, People Flow Counting, Crowd Density Monitoring |
| Video Resolution | |
| Main Stream | 2688 x 1520 (default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (default), 640 x 480, 352 x 288 |
| Third Stream | Closed by default: 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment | Pan: 0 ~ 355°; Tilt: 0 ~ 80°; Rotate: 0 ~ 355° |
| Power Connector | DC jack (DC 12 V, 1.25 A), PoE |
| Ethernet Connector | RJ-45 |
| Audio Connector | 1 input, built-in or external microphone with power supply; 1 output, audio out wire |
| Digital I/O Connector | 4-pin terminal block, pitch 3.5 mm (0.14") |
| Local Storage | Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10). UHS-II card type is not supported. |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95%, no condensation |
| Power Source | 12 V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 7.0 W |
| Dimensions | Ø 148 x 111 mm (Ø 5.8 x 4.4") |
| Weight | 0.92 kg (2.03 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Regulatory | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV-VMS V17.4.2 / V18.2.1, GV-DVR / NVR V8.9.1, GV-Control Center V3.8.0, GV-Recording Server / Video Gateway V2.0.0, GV-Edge Recording Manager Win version V2.0.0, GV-Redundant / Failover Server V1.2.0, GV-Mobile Server V1.5.1 |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (Chrome, Edge, Firefox, Safari), Mobile App |
