GeoVision - 84-JOYSTCK-0010 - GV-Joystick V2
Part number:
400-JOYSK-000
Price:

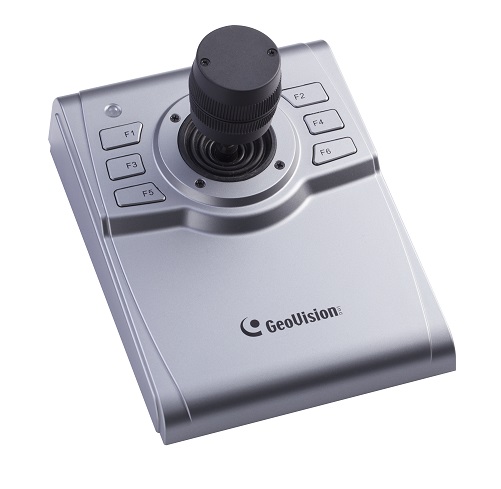

GV-Joystick V2 is a plug-and-play device for panning, tilting, zooming, and focusing a PTZ camera. It can be plugged into the GeoVision surveillance system for standalone use or connected to GV-Keyboard to empower operation.
Features:
- GV-Joystick V2
- USB Type A to Type B Cable
- RJ-45 Cable
- Software CD
Note:
- The joystick is a HID device compatible with any third-party software supporting HID protocol.
- Specifications are subject to change without notice.
Specifications
| OS Supported | 32‐bit | Windows 7 / 8 / 10 / Server 2008 |
| 64‐bit | Windows 7 / 8 / 10 / Server 2008 R2 / Server 2012 / Server 2016 / Server 2019 | |
| Communication | USB | Connects to PC |
| RJ‐45 | Connects to GV‐Keyboard V3 | |
| Power | DC IN | DC 5V 50mA |
Environmental Conditions | Operation Temperature | 0 ~ 50°C / 32 ~ 122°F |
| Humidity | 5% ~ 95% (non‐condensing) | |
| Dimensions (W x H x D) | 160 x 90 x 118 mm (6.3 x 3.54 x 4.65") | |
| Weight | 500 g (1.1 lb) | |
