GeoVision - 84-JSTV300-0010 - GV-Joystick V3
Part number:
Price:
GV-Joystick V3 is a plug-and-play device for panning, tilting, zooming, and focusing a PTZ camera. It is compatible not only with GeoVision software, but also with any third-party software that supports the HID standard.
| OS Supported | Windows 11 / 10 / 7 / Server 2016 / Server 2019 |
| Joystick | |
| Type | 3-Axis Hall Joystick |
| X/Y Axis | Camera Pan/Tilt |
| Z Axis | Camera Zoom |
| Lifespan | Over 5 million operations |
| Deflection Square Limiter | |
| XY Axis Angle | ±20° |
| Z Axis Angle | ±30° |
| Buttons | |
| Number of Buttons | 8 programmable mechanical buttons |
| Rated for | Over 5 million operations |
| Interface | USB 2.0, driver-free |
| Power | USB powered |
| Operating Temperature | -25 ~ 60°C / 77 ~ 140°F |
| Humidity | 5% ~ 95% (non-condensing) |

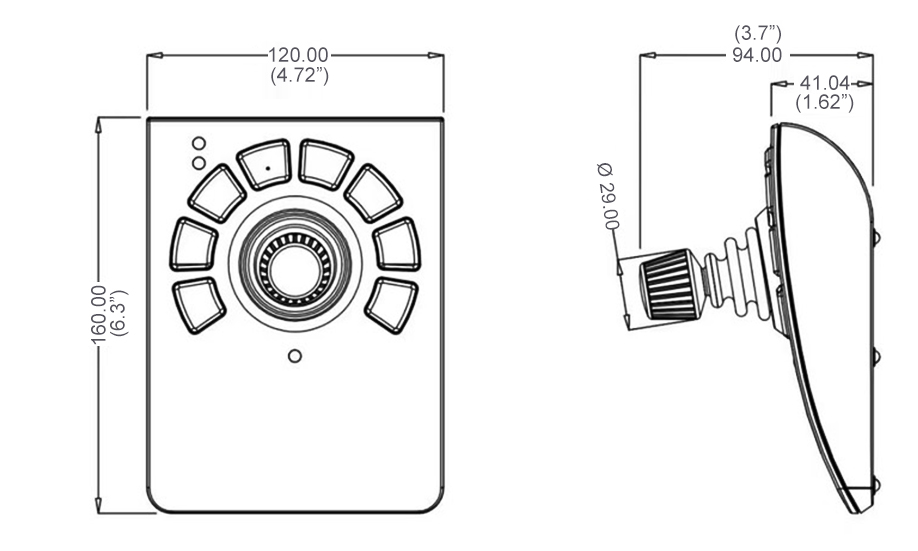

| Dimensions (W x H x D) | 120 x 157 x 94 mm (4.7 x 6.2 x 3.7") |
| Weight | 600 g (1.32 lb) |
| Certification | CE, FCC |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Installation Guide GV-Joystick V3
0.5mb
File
Comparison Table GV-Joystick
0.4mb
