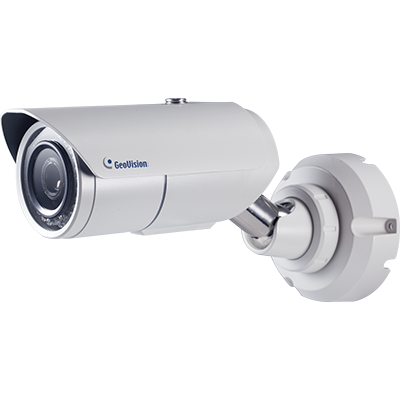

GV-LPC2011 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 60 km/h (37 mph) or less with extreme temperatures (-30°C ~ 50°C / -22°F ~ 122°F) resistance. It is weather proof (IP67). Equipped with a Super Low Lux CMOS image sensor, the camera is capable of displaying a color live view at near darkness. Its multiple LEDs and build-in intelligent IR provide clear license plate for two lanes under low-light conditions at a maximum IR distance of 10 m (35 ft). The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. The camera also allows automatic and precise control of exposure using its P‐iris, producing images with better clarity and contrast.
Features
- 1/2.8” color progressive scan super low lux CMOS
- Motorized varifocal lens for remote focus / zoom adjustment
- Dual streams from MJPEG or H.264
- Up to 30 fps at 1920 x 1080
- Maximum Speed 60 km/h (37 mph)
- Recognition for reflective License Plate only
- Intelligent IR
- Day and Night function (with removable IR-cut filter)
- Megapixel lens
- P-iris lens for auto iris control
- Maximum IR distance 10 m (35 ft)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)
- 3D noise deduction
- Defog
- Motion detection
- Privacy Mask
- Text Overlay
- Tampering Alarm
- IP address filtering
- Support for iPhone, iPad, Android & 3GPP
- 30 languages on Web interface
- ONVIF (Profile S) compliant
Note:
- The power adapter can be purchased upon request.
- Specifications are subject to change without notice.
| Camera | ||
| Image Sensor | 1/2.8” progressive scan super low lox CMOS | |
| Picture Elements | 1920 (H) x 1080 (V) | |
| Camera Type | Color, B/W | |
Minimum Illumination | Color | 0.05 Lux |
| B/W | 0.04 Lux | |
| IR ON | 0 Lux | |
| Shutter Speed | Auto, Manual (1/120 ~ 1/2000 sec) | |
| White Balance | Auto / Manual (2800K ~ 8500K) | |
| S/N Ratio | 56 dB | |
| WDR | Yes | |
| Dynamic Range | Up to 72 dB | |
| Max. Speed | 60 km/h (37 mph) | |
| Lens | ||
| Megapixel | 2 MP | |
| Day/Night | Yes | |
| Lens Type | Motorized varifocal lens | |
| Focal Length | 3 ~ 9 mm | |
| Maximum Apertur | e | F/1.7 |
| Mount | Ø 14 mm | |
| Image Format | 1/2.7" | |
| Horizontal FOV | 102° ~ 40° | |
| Operation | Focus | Remote Focus |
| Zoom | 3x Optical Zoom | |
| Iris | P‐Iris | |
| IR LED Quantity | 24 IR LEDs | |
| IR Distance | 5 ~ 10 m (16 ~ 35 ft) | |
| Operation | ||
| Video Compression | H.264, MJPEG | |
| Video Stream | Dual streams from H.264 or MJPEG | |
| Frame Rate | 30 fps at 1920 x 1080 (60/50 Hz) * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes) | |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Gamma, Auto Exposure, White Balance, Flicker less, Image Orientation, Shutter Speed, Maximum Video Gain, D/N Sensitivity, Denoise, Defog, Metering. | |
| Audio Compression | N/A | |
| Audio Support | N/A | |
| Video Resolution | ||
| Main Stream | 16:9 | 1920 x 1080 (Default), 1280 x 720 |
| Sub Stream | 16:9 | 640 x 360 |
| TV‐Out | N/A | |
| Network | ||
| Interface | 10/100 Base‐T Ethernet, RJ‐45 connector | |
| Protocol | HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, SNMP, QoS (DSCP), ONVIF (Profile S) | |
| Mechanical | ||
| Temperature Detector | Yes | |
| Camera Angle Adjustment | Pan | 0° ~ 360° |
| Tilt | 90° ~ 180° | |
| Connectors | Power | 2‐pin terminal block, PoE |
| Ethernet | RJ‐45 | |
| Audio | N/A | |
| Digital I/O | N/A | |
| TV‐Out | N/A | |
| LED Indicator | N/A | |
| General | ||
| Environment Temperature | Start‐up | ‐20°C ~ 50°C (‐4°F ~ 122°F) |
| Operation | ‐30°C ~ 50°C (‐22°F ~ 122°F) | |
| Humidity | 10% ~ 90% (non‐condensing) | |
| Power Source | DC 12V, PoE (IEEE 802.3af) | |
| Max. Power Consumption | 12.3 W | |
| Dimensions | 142.14 x 77.72 x 102.75 mm (5.6" x 3.06" x 4.05") | |
| Weight | 810 g (1.8 lb) | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 for metal casing | |
| Regulatory | CE, FCC, RCM, RoHS compliant | |
| Power over Ethernet | ||
| PoE Standard | IEEE (802.3af Power over Ethernet / PD) | |
| PoE Power Supply Type | End‐Span | |
| PoE Power Output | Per Port 48V DC, 350 mA, Max. 15.4 watts | |
| Web Interface | ||
| Installation & Management | Web‐based configuration | |
| Firmware Upgrade | Remote upgrade through Web Browser, GV‐IP Device Utility | |
| Access from Web Browser | Camera Live View, Video Recording, Video Quality, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Motion Detection, IP Address Filtering, Digital PTZ | |
| Language | Arabic / Bulgarian / Czech / Danish / Dutch / English /French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish | |
| Applications | ||
| Network Storage | GV‐System (GV‐DVR/NVR), GV‐VMS, GV‐Recording Server | |
| Smart Device Access | GV‐Eye for Android and iOS Embedded 3GPP/ISMA browser | |
| Live Viewing | IE, Chrome, Firefox, Edge, Safari | |
| CMS Server support | GV‐Control Center, GV‐Center V2, GV‐Vital Sign Monitor | |
| LPR Management | GV‐ASManager | |
