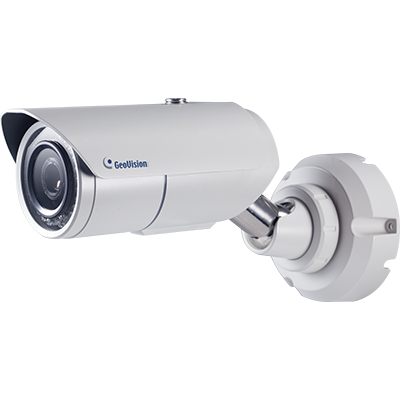

GeoVision - 84-LPC2211-0010 - 2MP 2.5x Zoom Super Low Lux Color Network Camera

Product Overview

The GV-LPC2211 is a specialized 2 MP LPR camera engineered to capture reflective license plates on vehicles traveling at speeds up to 120 km/h (75 mph). It features a 9–22mm motorized varifocal lens with P-iris control and a Super Low Lux CMOS sensor, delivering clear 1080p video at 30 fps. Equipped with 24 intelligent IR LEDs providing a 20m (65 ft) range, the camera is housed in an IP67-rated and IK10 vandal-resistant enclosure. It utilizes WDR and a 2.5x optical zoom to ensure precise plate recognition in various lighting and environmental conditions.

Key Configuration

• • Image sensor: 1/2.8" progressive scan super low lux CMOS; resolution: 1920×1080 (1080p) at up to 30 fps
• • Lens: 9–22mm motorized varifocal, 2.5x optical zoom, P-iris; horizontal FOV: 39° (wide) to 17° (tele)
• • IR distance: 24 IR LEDs, intelligent IR up to 20m (65 ft); minimum illumination: color 0.05 lux, B/W 0.04 lux, 0 lux with IR
• • Video compression: H.264, MJPEG; dual streams
• • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 12.3W

Key Features

Provides high-speed recognition for reflective license plates on vehicles traveling up to 120 km/h (75 mph). It utilizes a motorized varifocal lens with P-iris control and remote adjustment to ensure sharp focus and optimal exposure across two lanes. Advanced imaging features like WDR, Defog, and 3D noise reduction maintain clarity in diverse environments, while intelligent IR handles low-light captures. The system is ONVIF Profile S compliant, integrates with GV-ASManager, and includes built-in security tools like tampering alarms and IP filtering.

Technical Context

Features specialized shutter speeds ranging from 1/120 to 1/2000 sec, optimized for capturing high-speed motion without blur. It maintains a clean signal with a 56 dB S/N ratio and supports a wide array of network protocols, including SNMP, QoS, and HTTPS for secure, prioritized data transmission. Designed for dedicated visual recognition, this model does not include audio or digital I/O. It is fully compliant with global standards, carrying CE, FCC, RCM, and RoHS certifications.

Installation Notes

Measuring 142.14 × 77.72 × 102.75 mm and weighing 810 g, it is purpose-built for reflective license plate recognition and requires GV-ASManager for management. The camera supports flexible installation via DC12V or PoE (802.3af) and offers mechanical adjustment with a 0–360° pan and 90–180° tilt. This model is a dedicated visual recognition tool and does not support audio.
